Exterior Mirror Cover

EXTERIOR MIRROR COVER

Removal

NOTE: This procedure only applies to ST sedan vehicles equipped with breakaway-type mirrors.

1. Remove the exterior mirror.
2. Remove the exterior mirror glass.

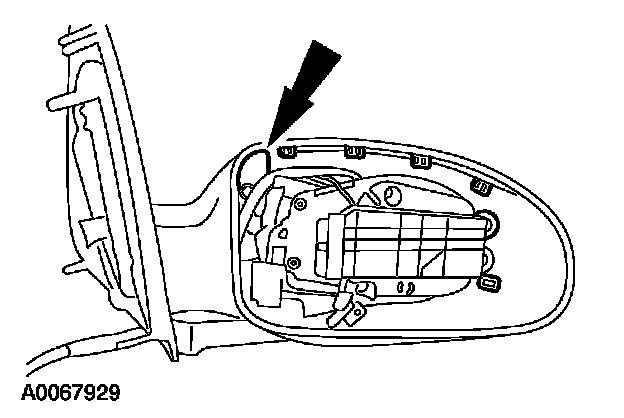

3. Press the exterior mirror cover in the downward position and remove the exterior mirror cover.

Installation







1. NOTE: All 4 locating tabs need to be seated to insure correct installation.

Install the exterior mirror cover.

2. Install the exterior mirror glass.
3. Install the exterior mirror.
