Cruise Control Servo: Service and Repair
SPEED CONTROL ACTUATORRemoval and Installation

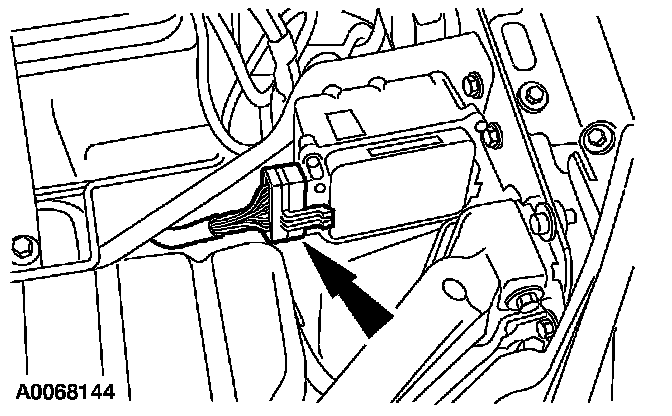

1. Disconnect the speed control actuator electrical connector.

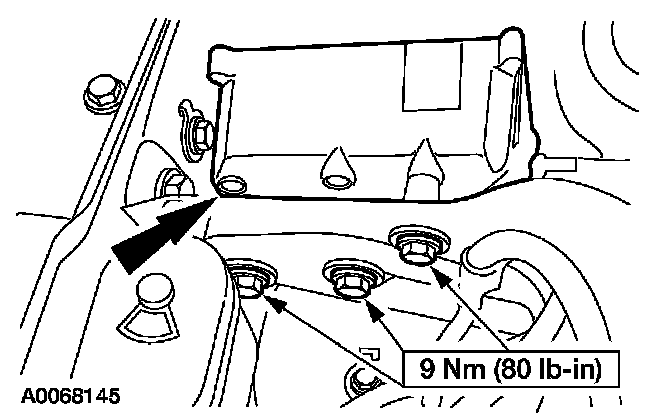

2. Remove the bolts and the speed control actuator.

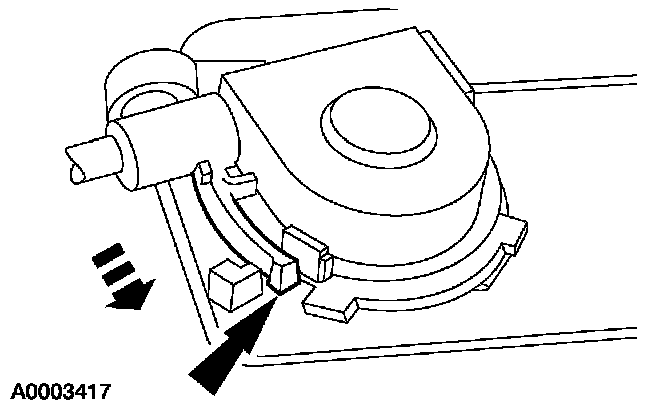

3. Press the locking tab and rotate the speed control cable cover counterclockwise to remove.
4. Remove the speed control cable.

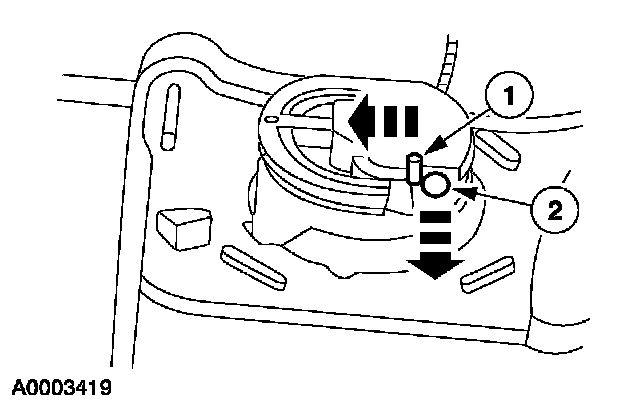

1. Press the spring retainer.
2. Slide the core wire end out of the speed control actuator pulley and disconnect the speed control actuator cable.
5. NOTE: Make sure downward pressure is applied to the speed control actuator cable cover prior to rotating it clockwise.
To install, reverse the removal procedure.
