Cruise Control Switch: Service and Repair

SPEED CONTROL SWITCH

Removal and Installation
1. Remove the driver air bag.

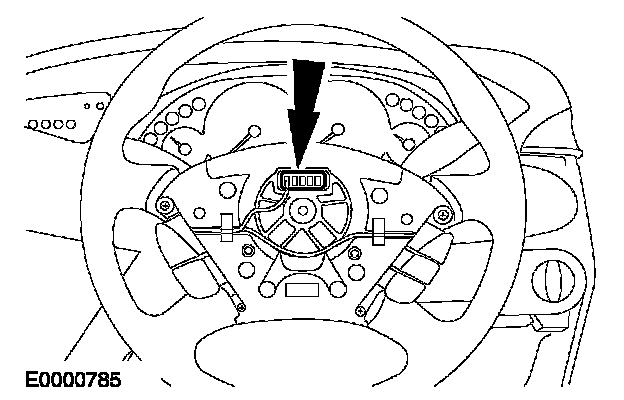

2. Disconnect the speed control switch electrical connector.

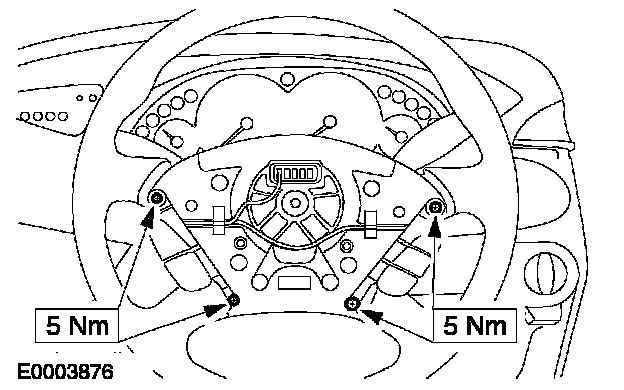

3. Remove the speed control switches.
4. To install, reverse the removal procedure.
