Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2005
>>
Focus L4-2.0L VIN N
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test H: Flash Code 3 - Speed Control Deactivator Switch Circuit Failure
Test H: Flash Code 3 - Speed Control Deactivator Switch Circuit Failure
PINPOINT TEST H: FLASH CODE 3 - SPEED CONTROL DEACTIVATOR SWITCH CIRCUIT FAILURE

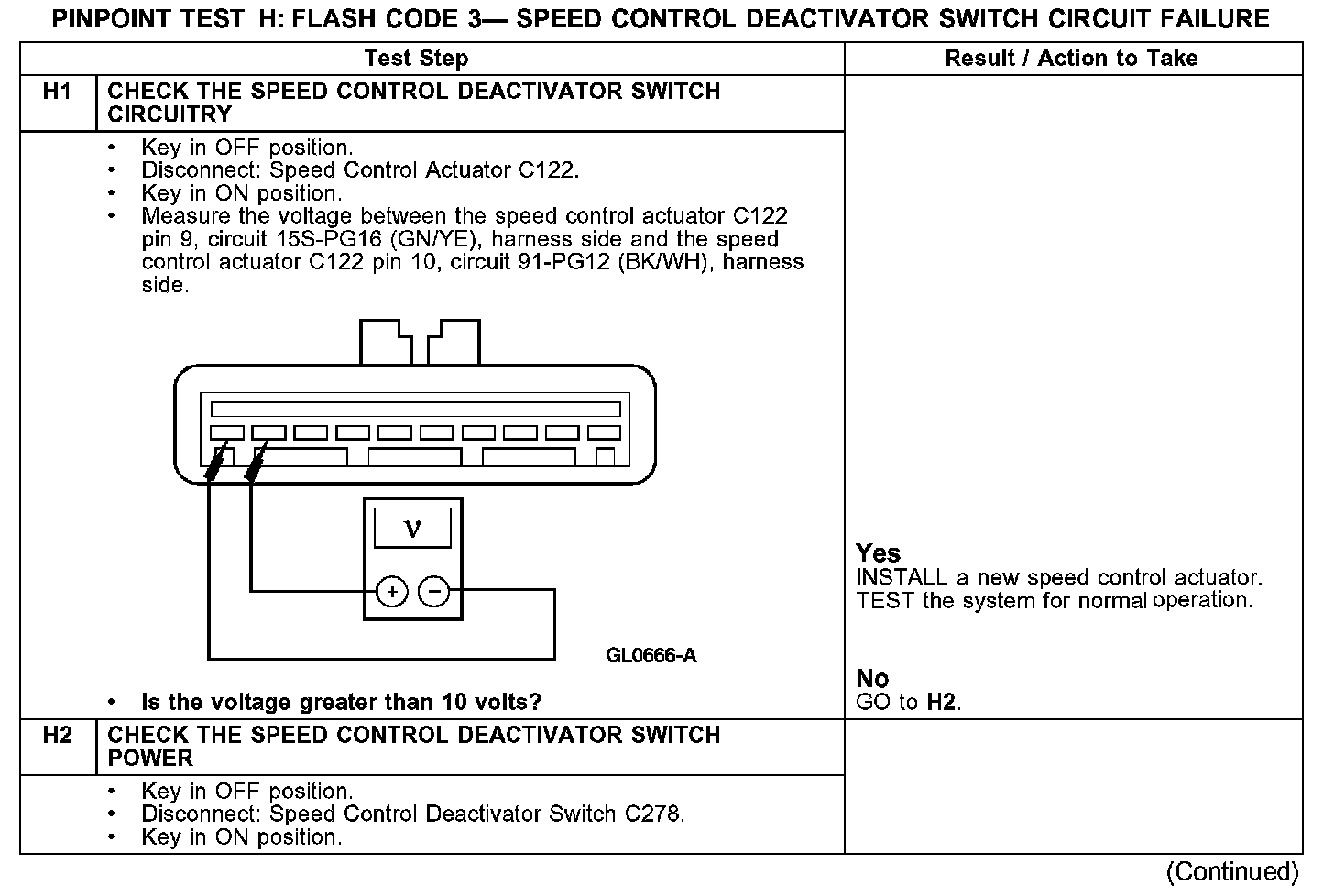

H1-H2:

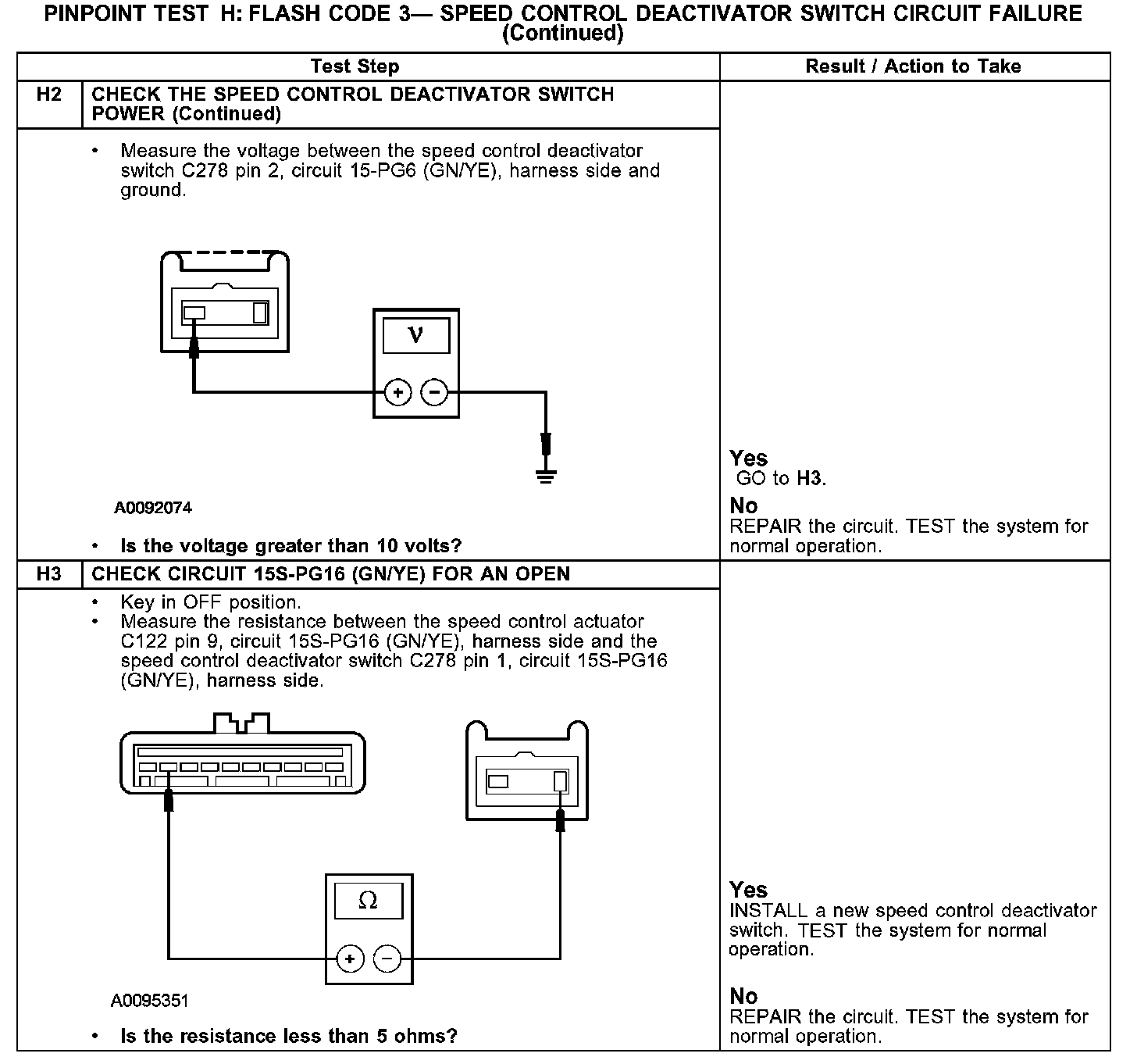

H2-H3:
