Test I: Flash Code 4 - Vehicle Speed Sensor (VSS) Circuit Failure
Test I: Flash Code 4 - Vehicle Speed Sensor (VSS) Circuit Failure

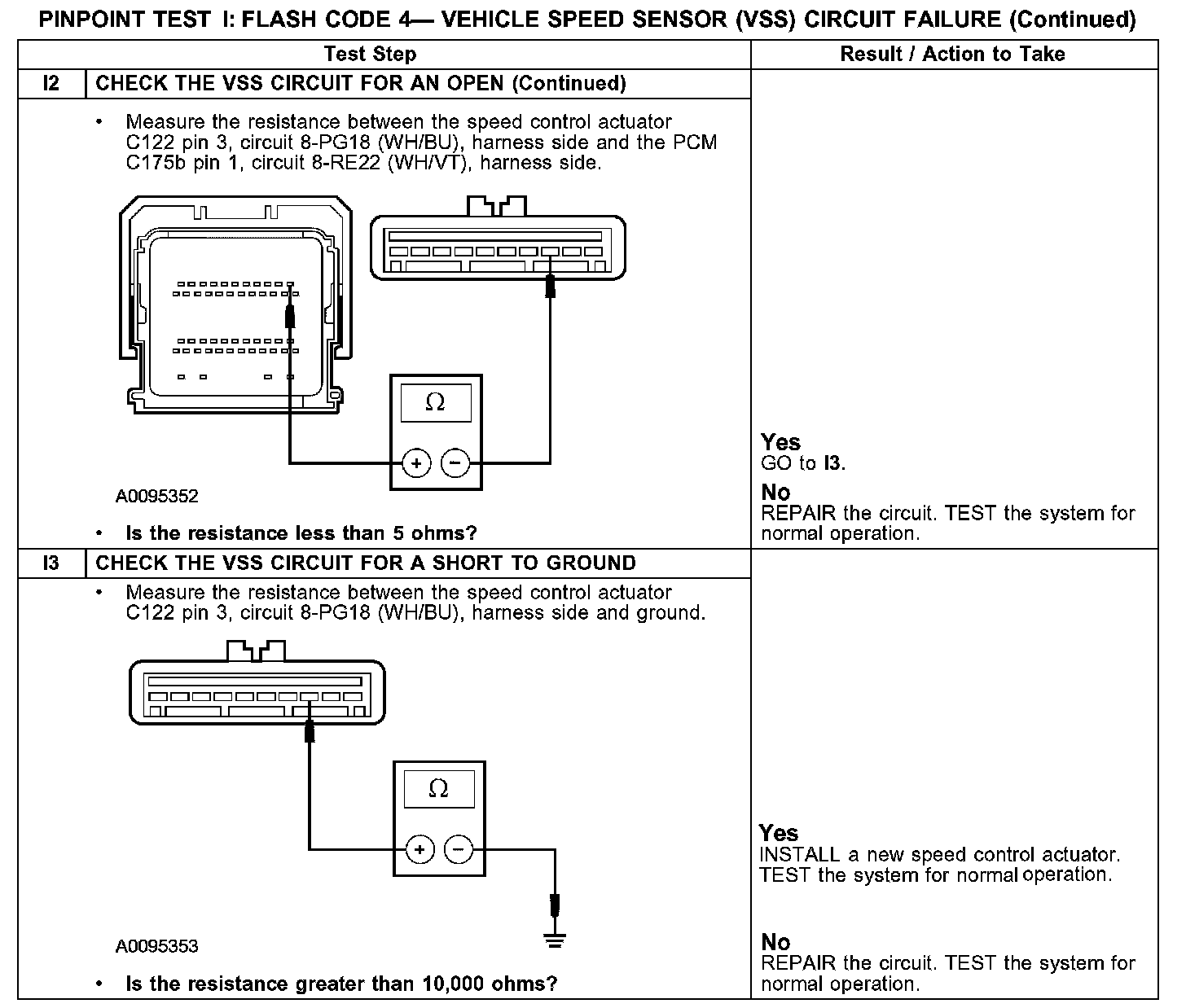

PINPOINT TEST I: FLASH CODE 4 - VEHICLE SPEED SENSOR (VSS) CIRCUIT FAILURE
I1-I2:
I2-I3:
