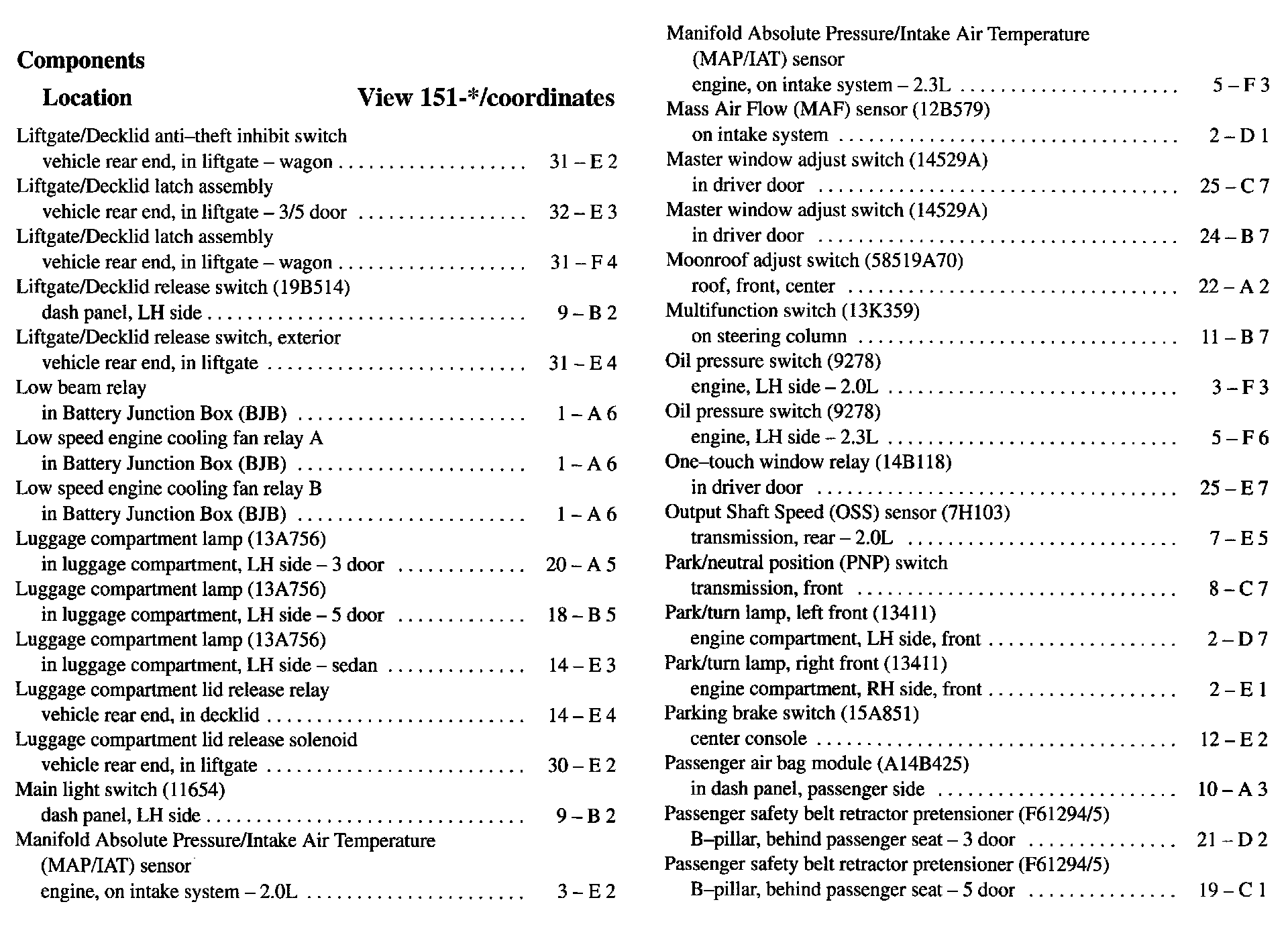

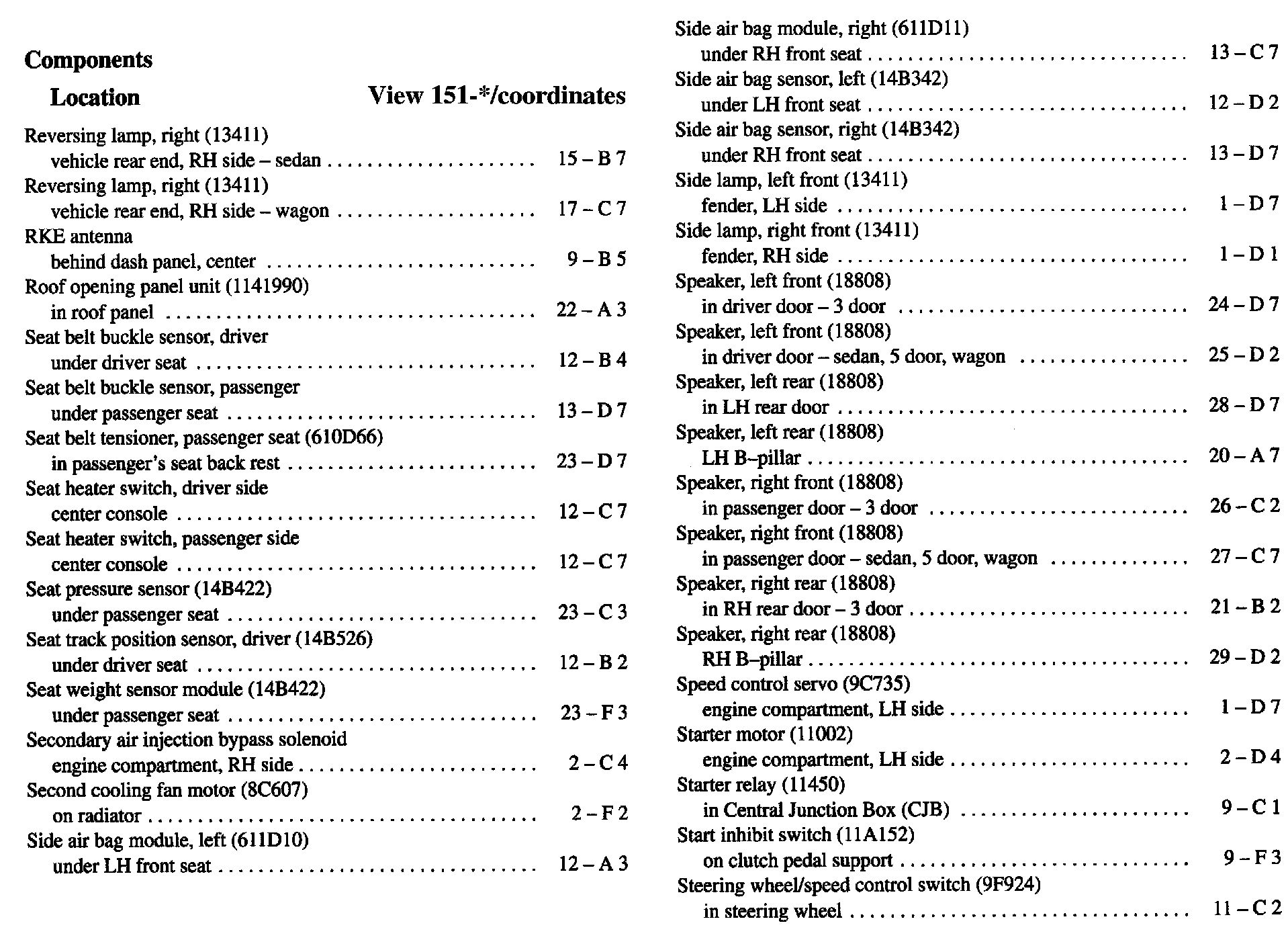

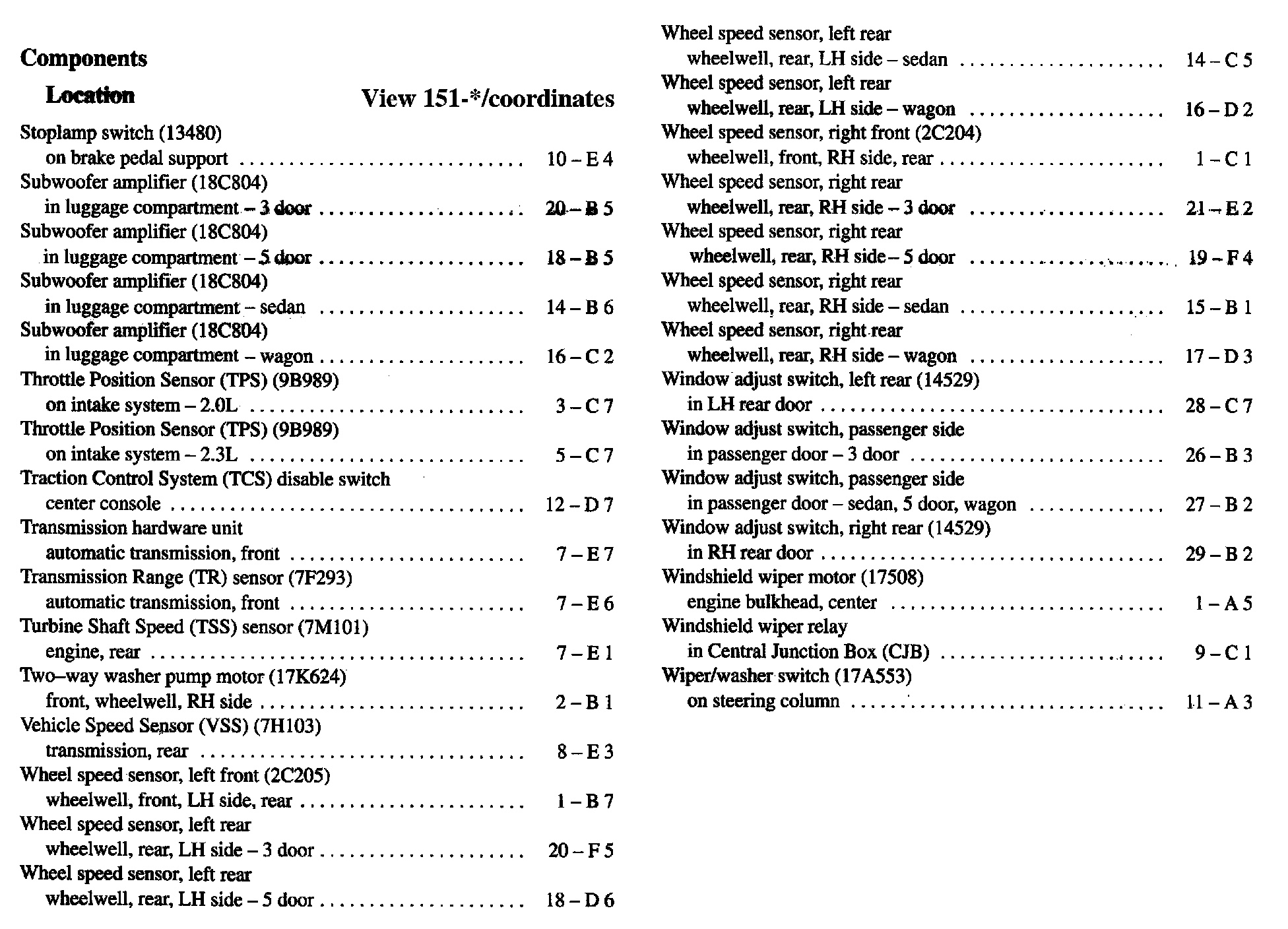

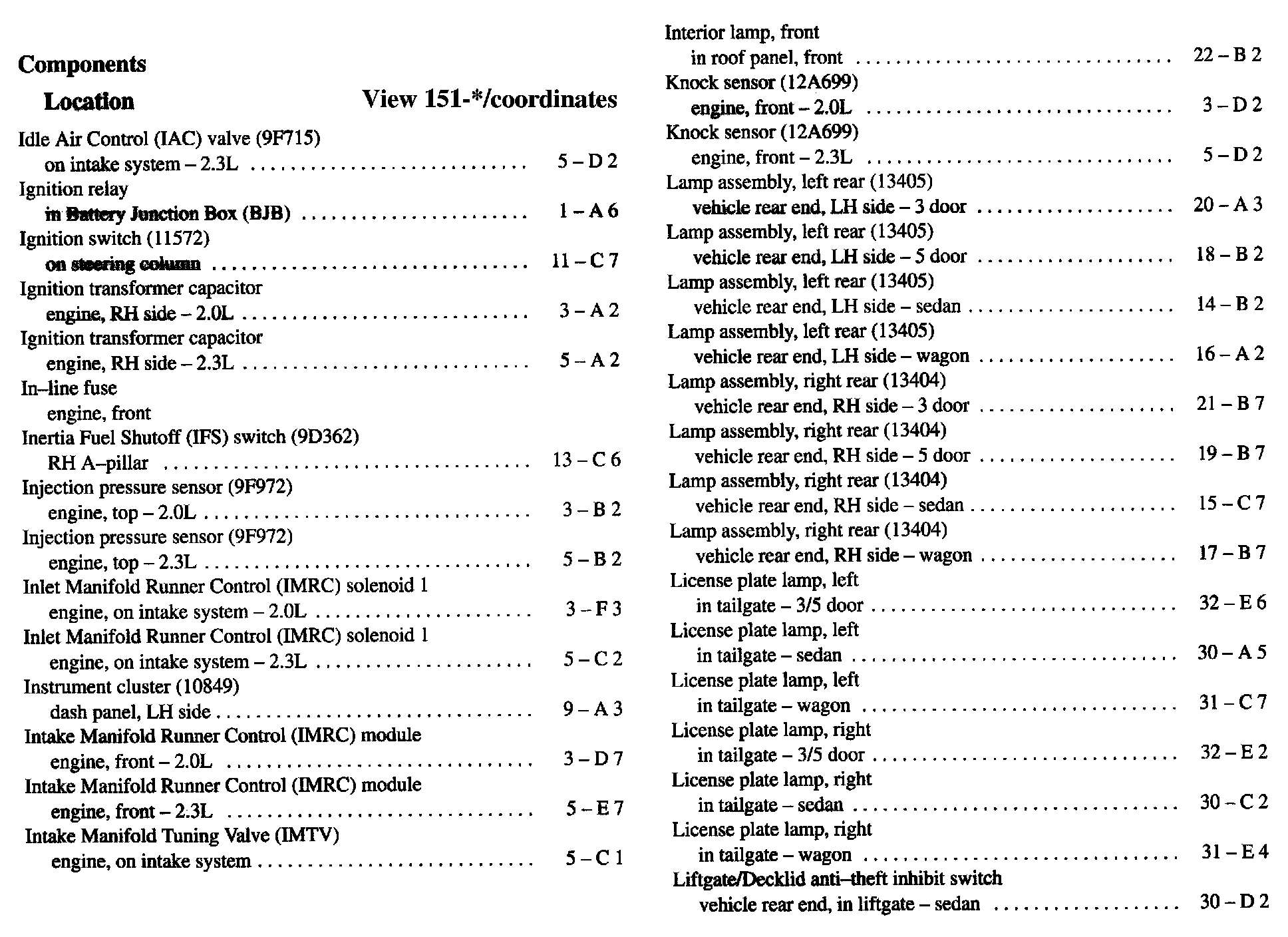

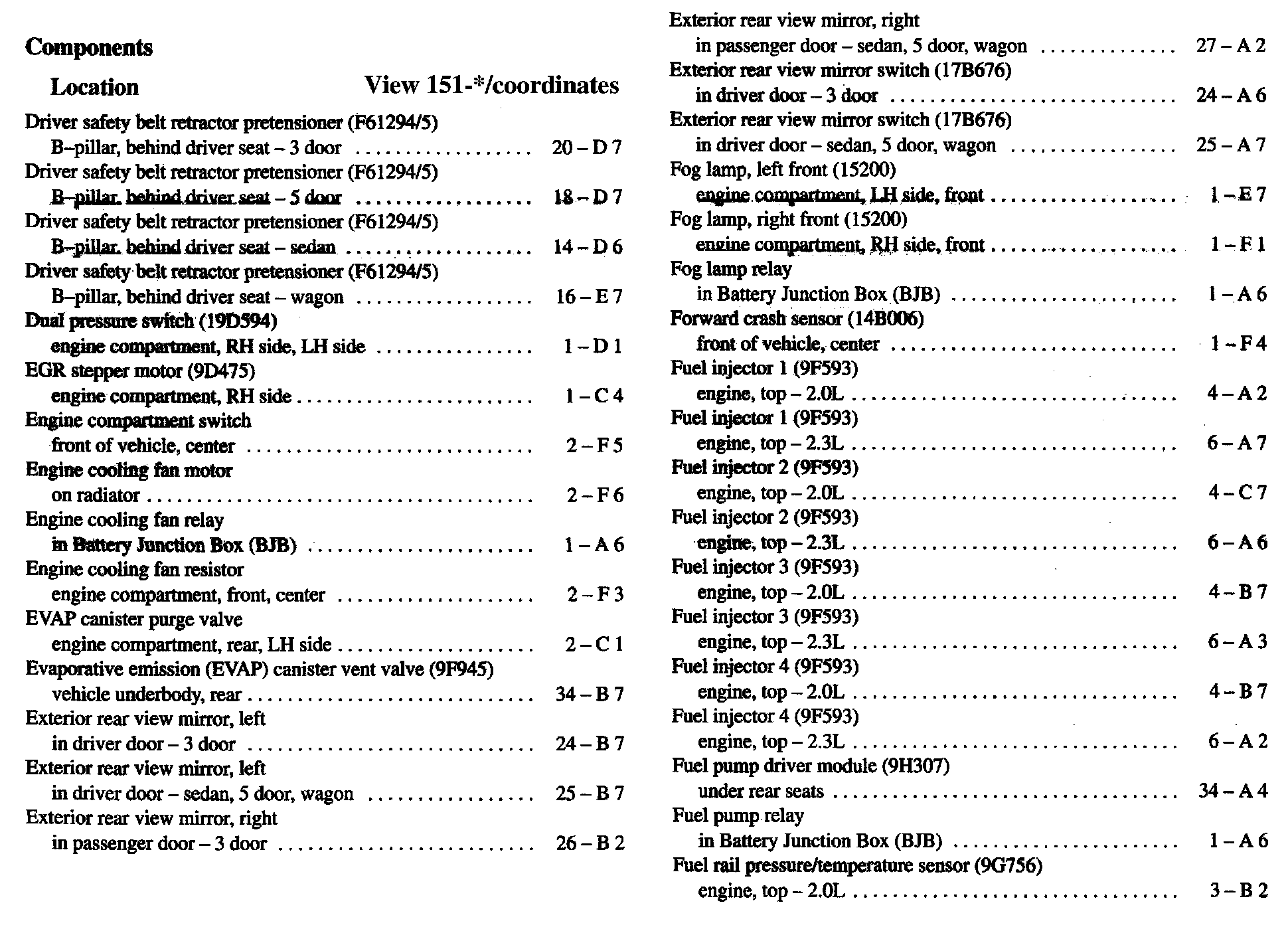

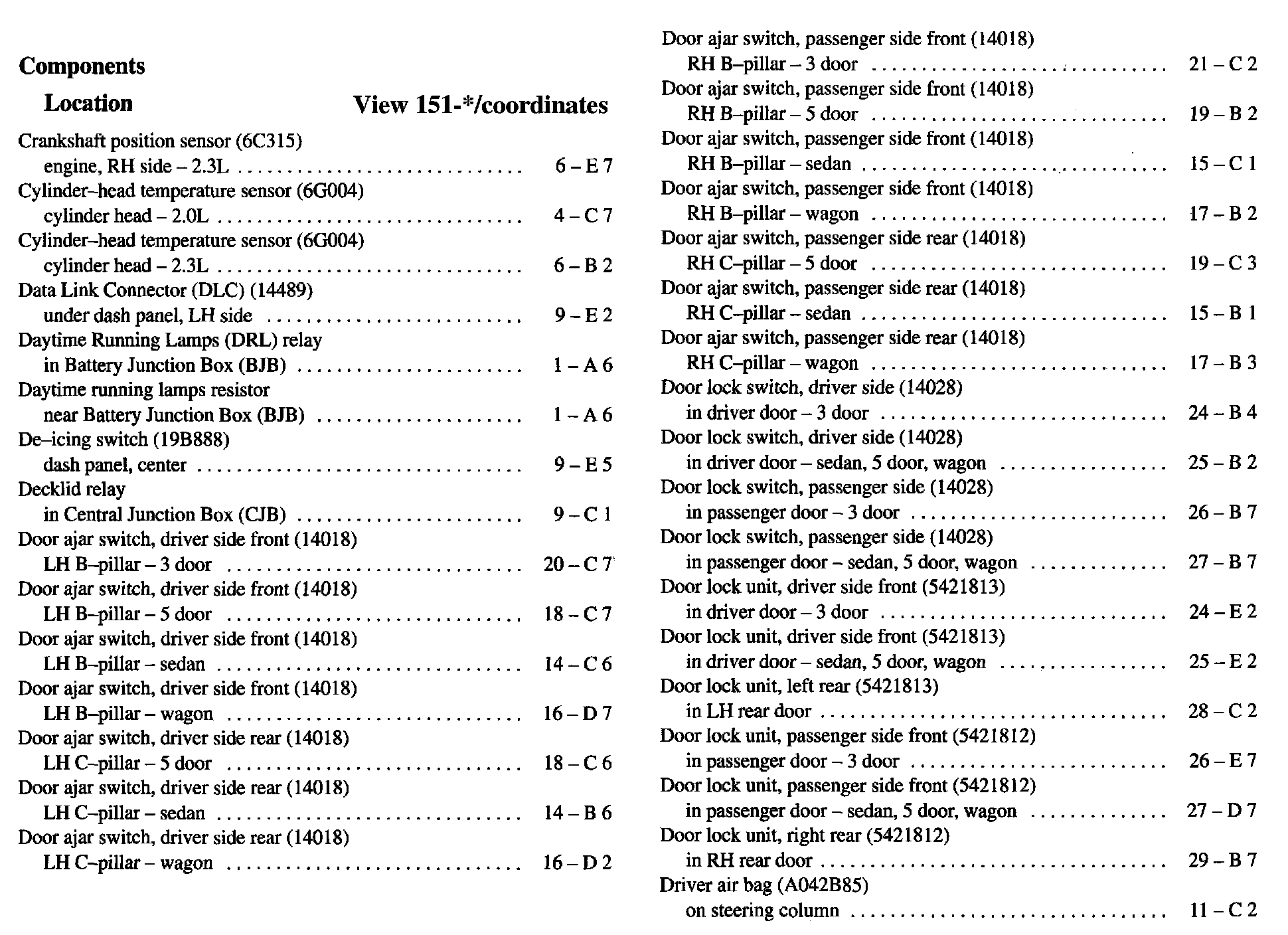

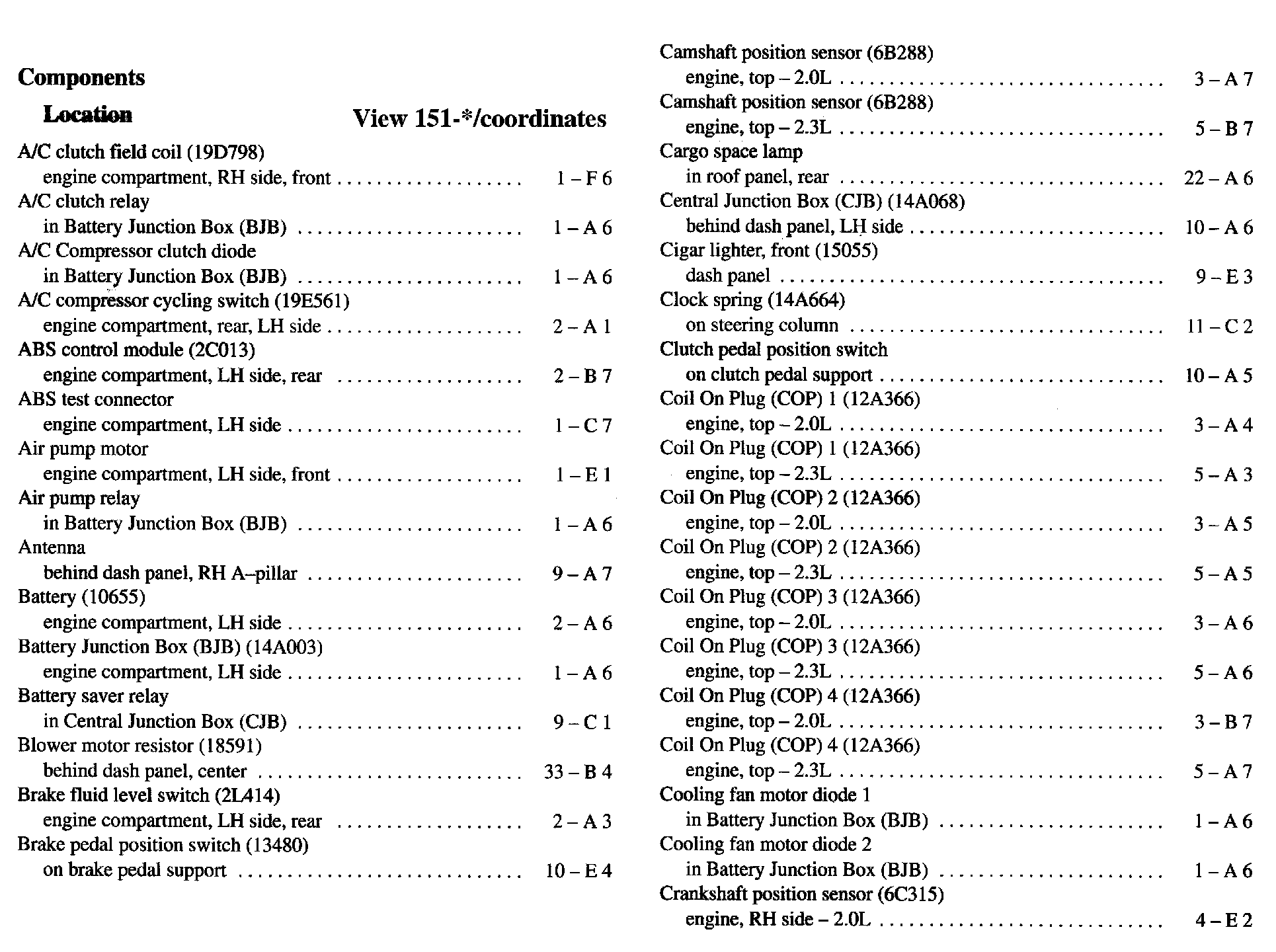

Component Location Index
PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.
A/C-Cr:
Cr-Dr:
Dr-Fu:
Fu-Id:
Id-Li:
Li-Pa:
Pa-Re:
Re-St:
St-Wi:
