Home >> Ford >> 2005 >> Focus L4-2.0L VIN N >> Repair and Diagnosis >> Diagrams >> Components >> Component Location Views >> View 151-29 (RH Rear Door)

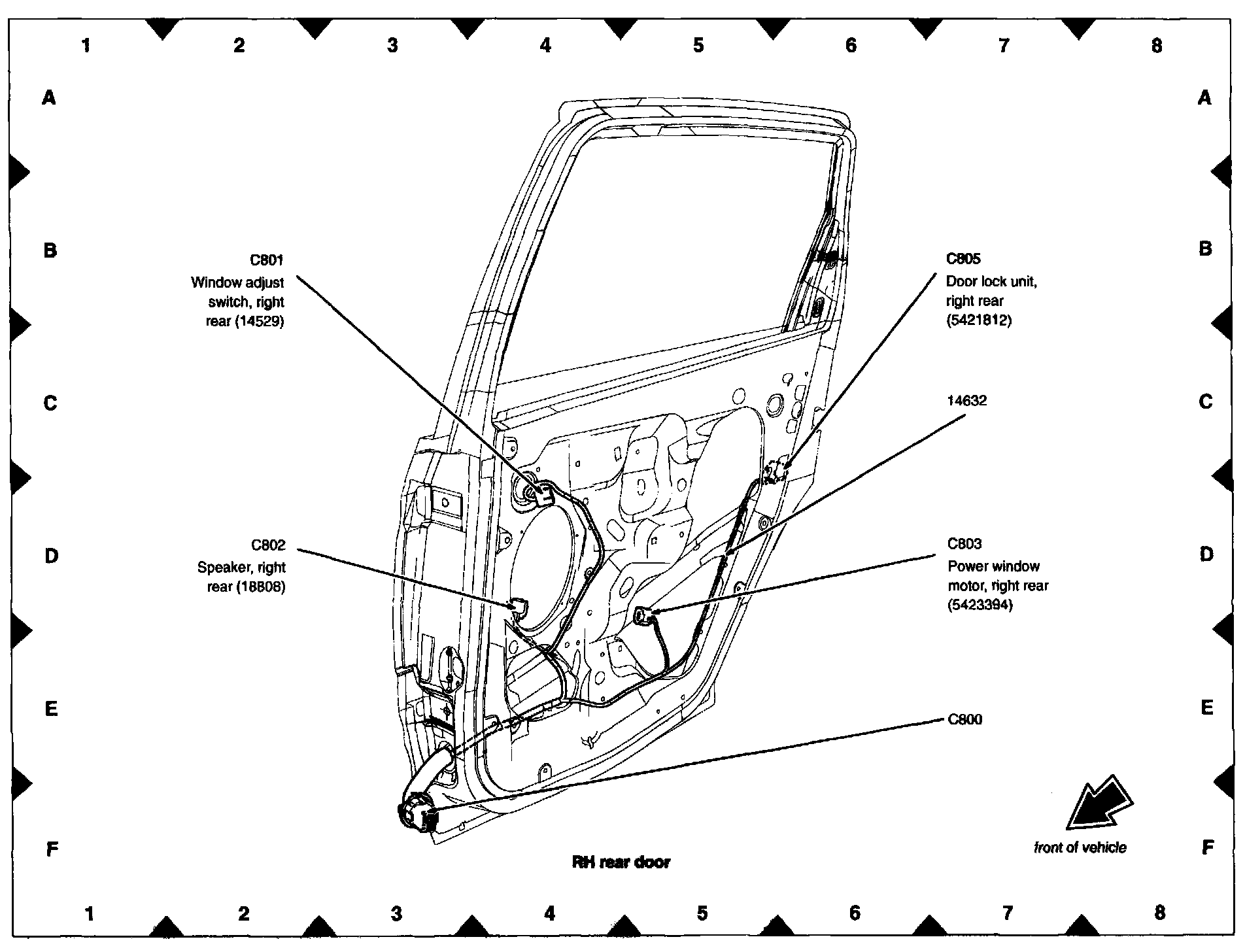

View 151-29 (RH Rear Door)

View 151-29 (RH Rear Door):
