Home >> Ford >> 2005 >> Focus L4-2.0L VIN N >> Repair and Diagnosis >> Diagrams >> Splices

Splices

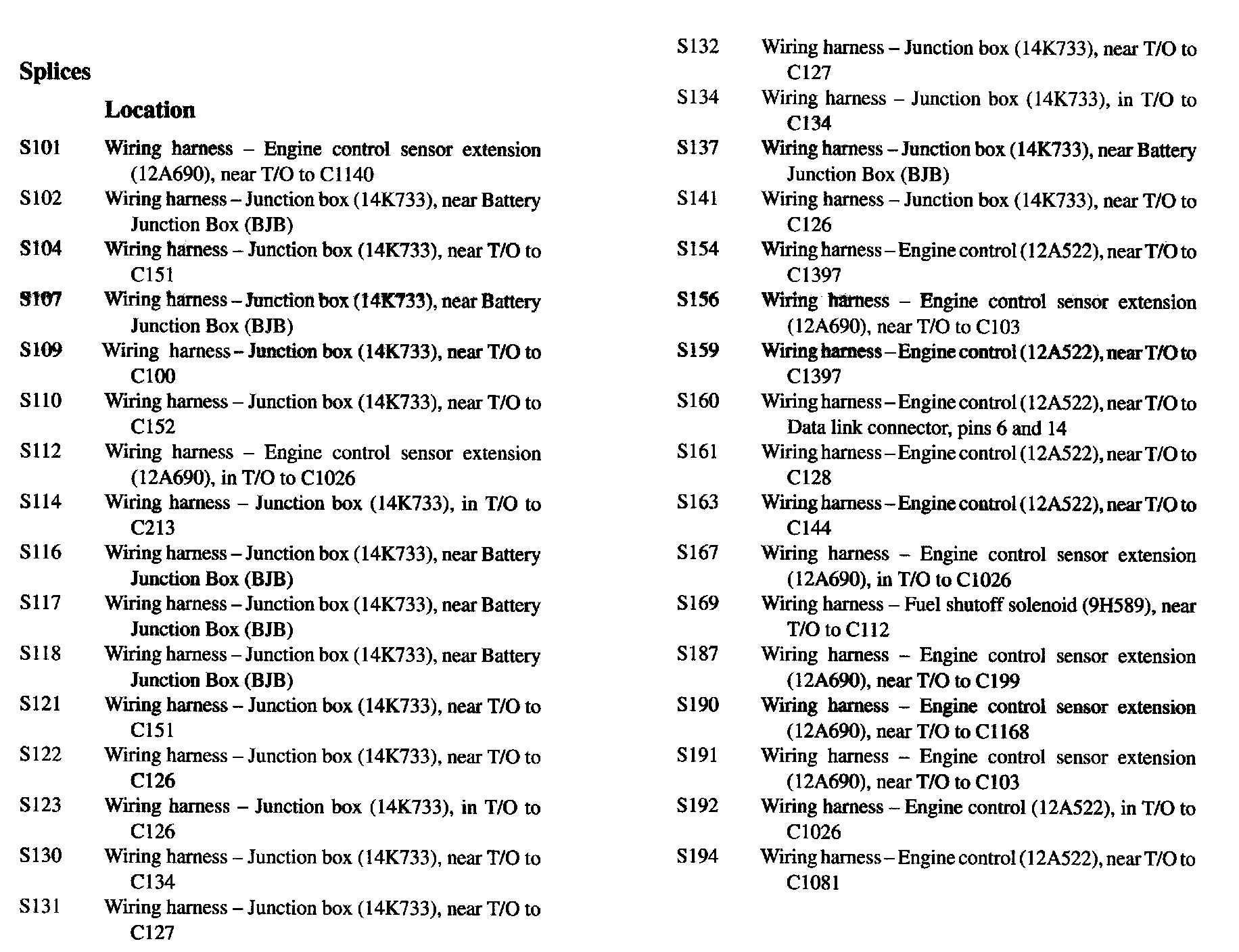

S101-S194:



S196-S383:

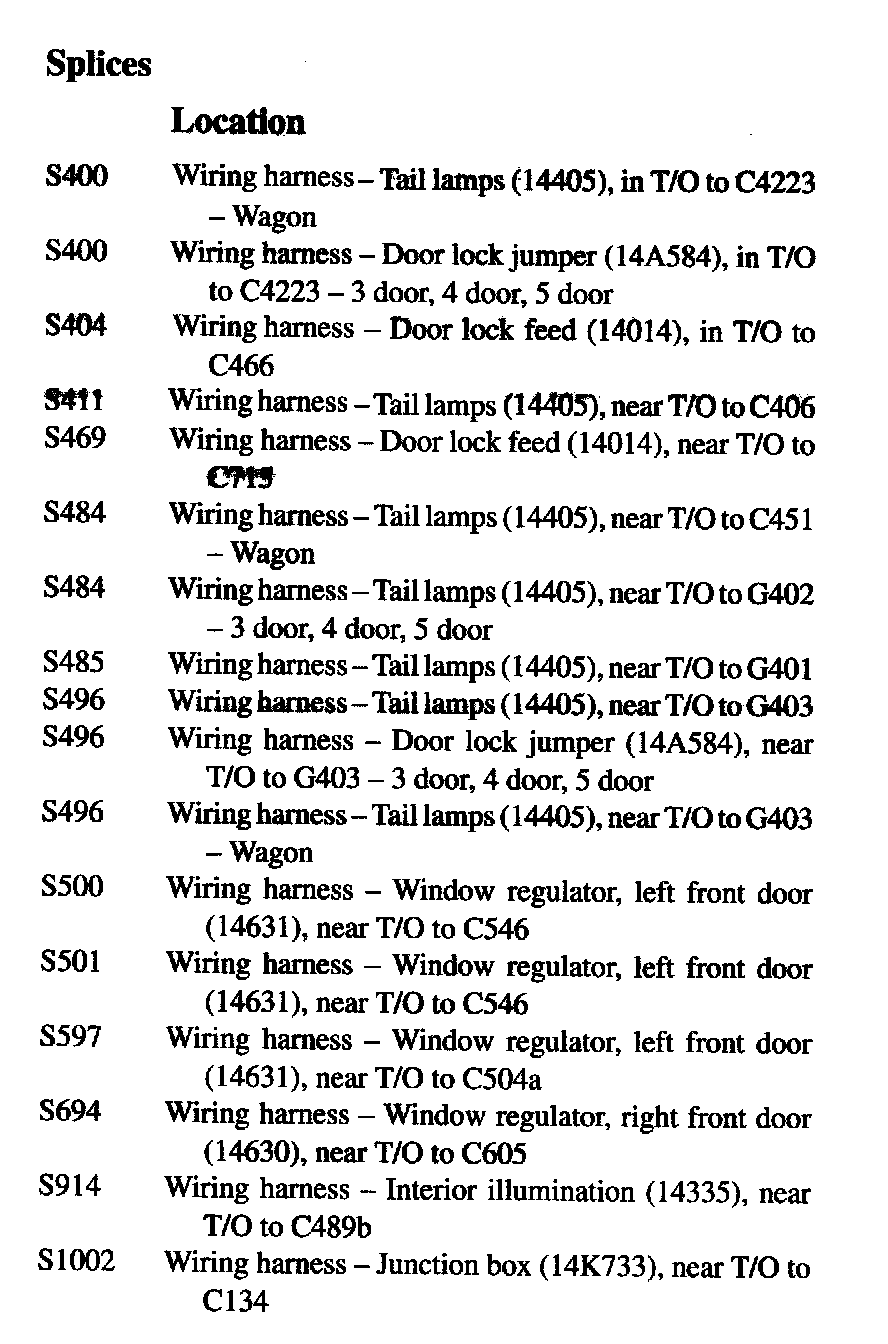

S400-S1002:
