Cylinder Block Assembly: Service and Repair

Cylinder Block Distortion

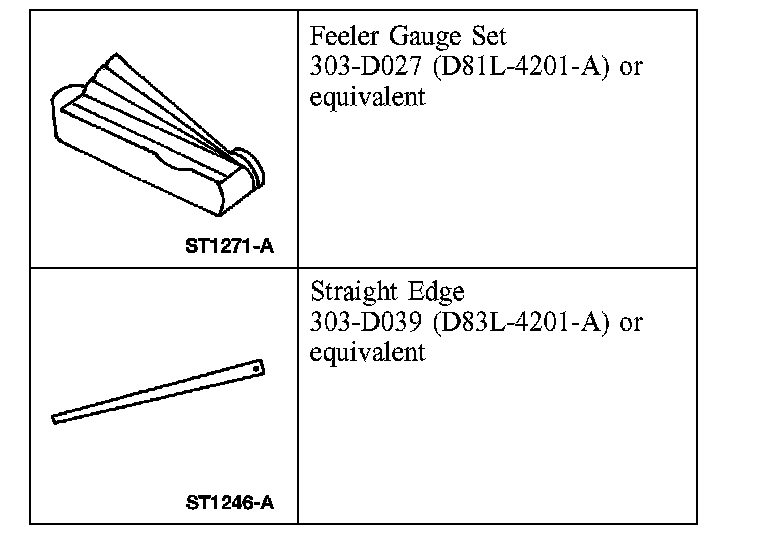

Special Tool(s)

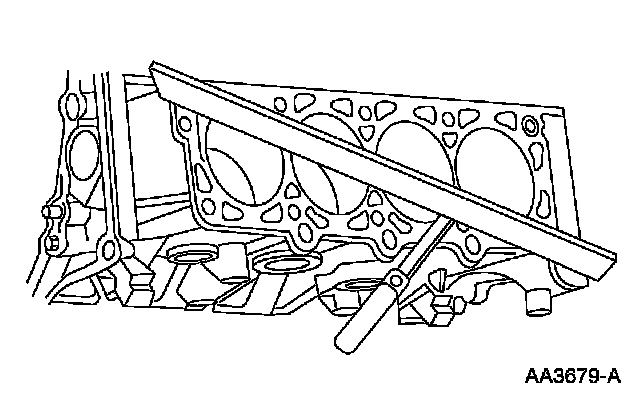

1. Use a straight edge and a feeler gauge to inspect the cylinder block for flatness. If the cylinder block is distorted, install a new short block assembly.
