Drive Belts, Mounts, Brackets and Accessories: Description and Operation

Accessory Drive

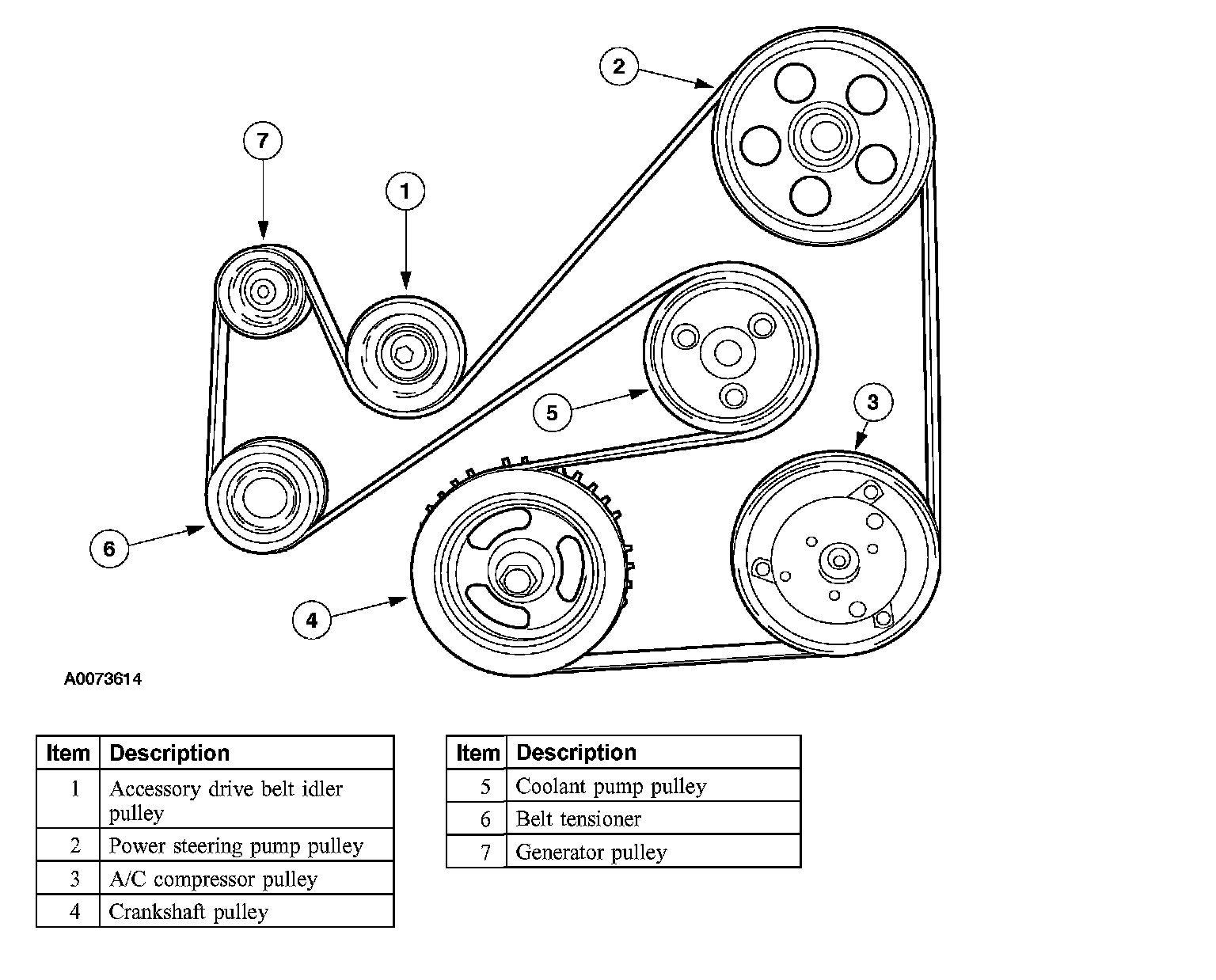

2.0L and 2.3L Engines With Air Conditioning

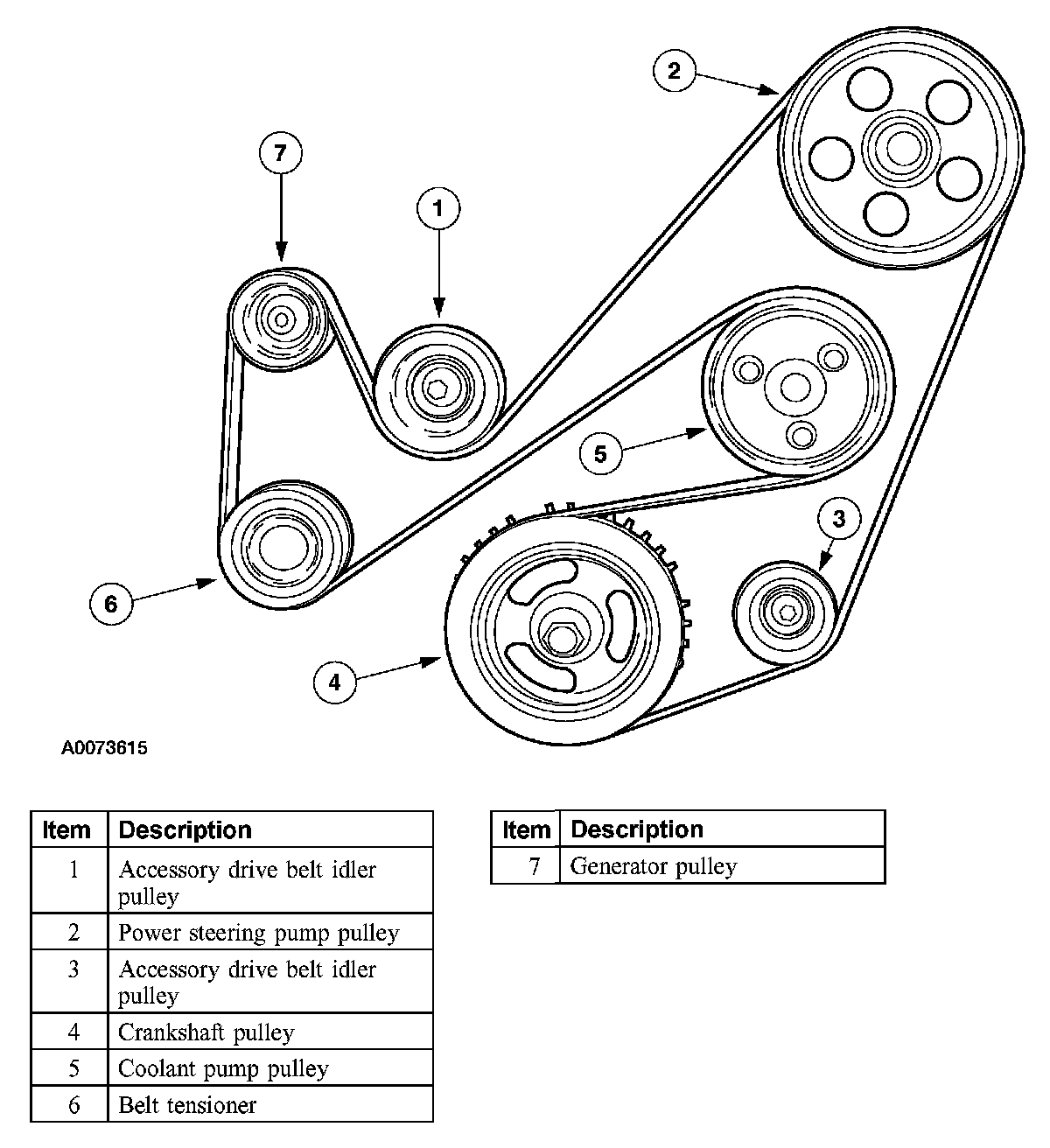

2.0L and 2.3L Engines Without Air Conditioning

Belt Tensioner
Automatic tensioners are calibrated to provide the correct amount of tension to the belt for a given accessory drive system. Unless a spring or damping band within the tensioner assembly breaks, or some other mechanical part of the tensioner fails, there is no need to check the tensioner for correct tension.
