Blower Motor: Service and Repair

BLOWER MOTOR

Removal and Installation







1. Remove the RH lower instrument panel insulator.
2. Lower the glove compartment.







3. Remove screw and the floor duct.
4. Close the glove compartment.







5. Disconnect the blower motor electrical connector.

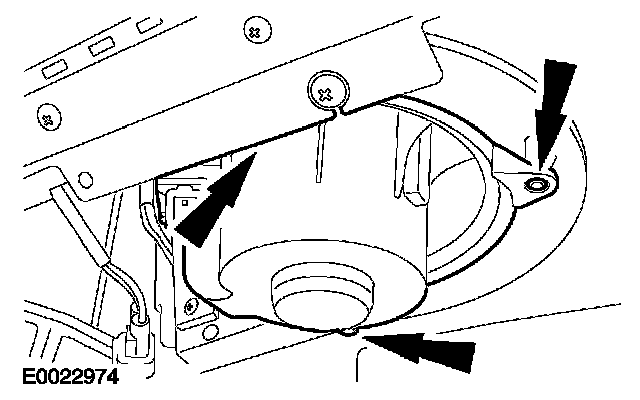

6. Remove the screws and the blower motor.
7. To install, reverse the removal procedure.
