Test A: The Blower Motor Is Inoperative

PINPOINT TEST A: THE BLOWER MOTOR IS INOPERATIVE

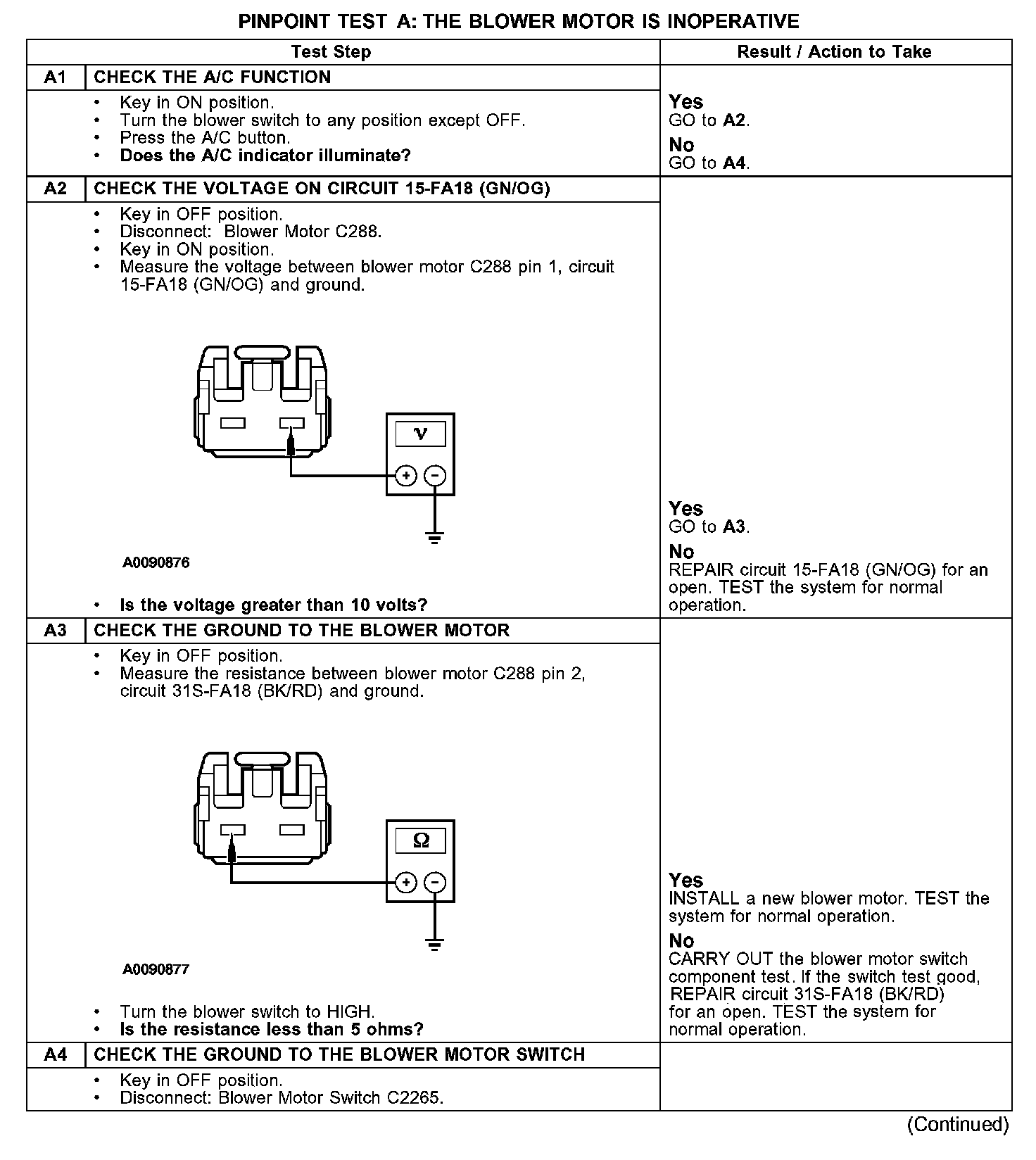

A1-A4:

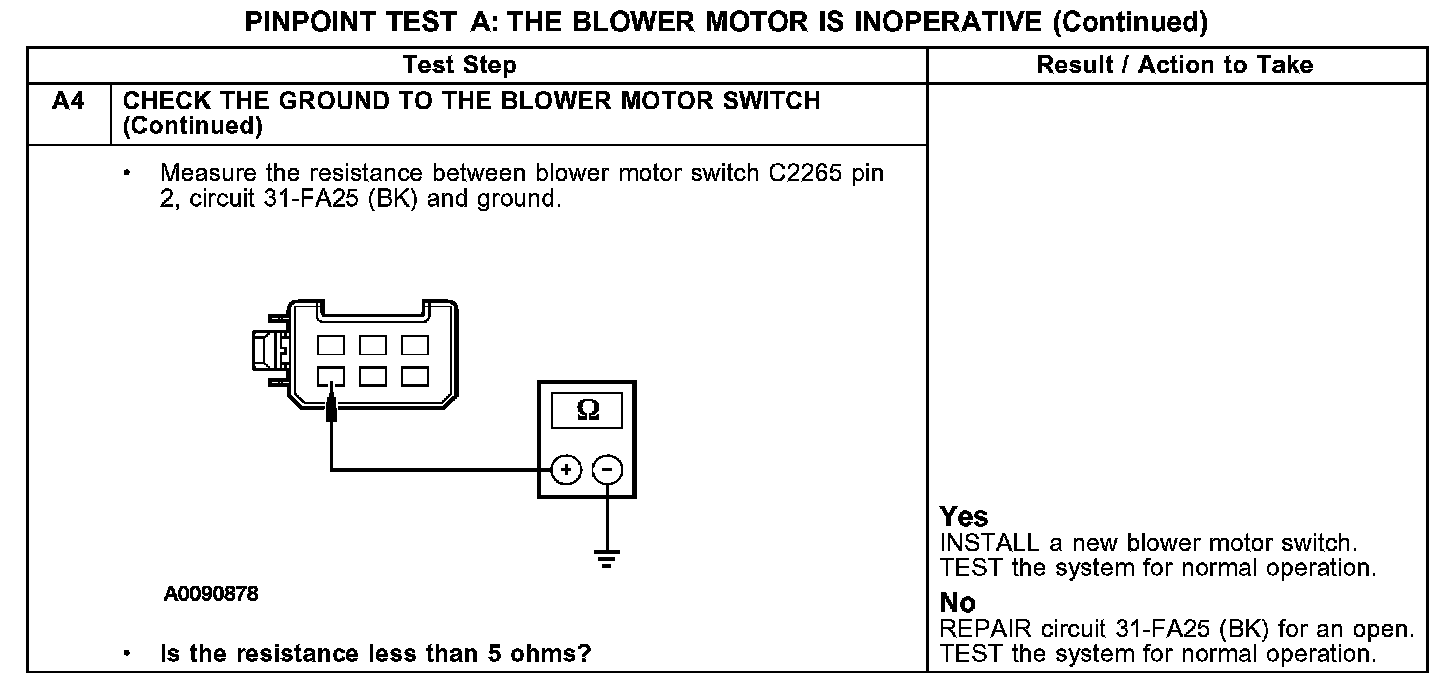

A4 Continued:
