Test B: The Blower Motor Does Not Operate Correctly
Test B: The Blower Motor Does Not Operate Correctly

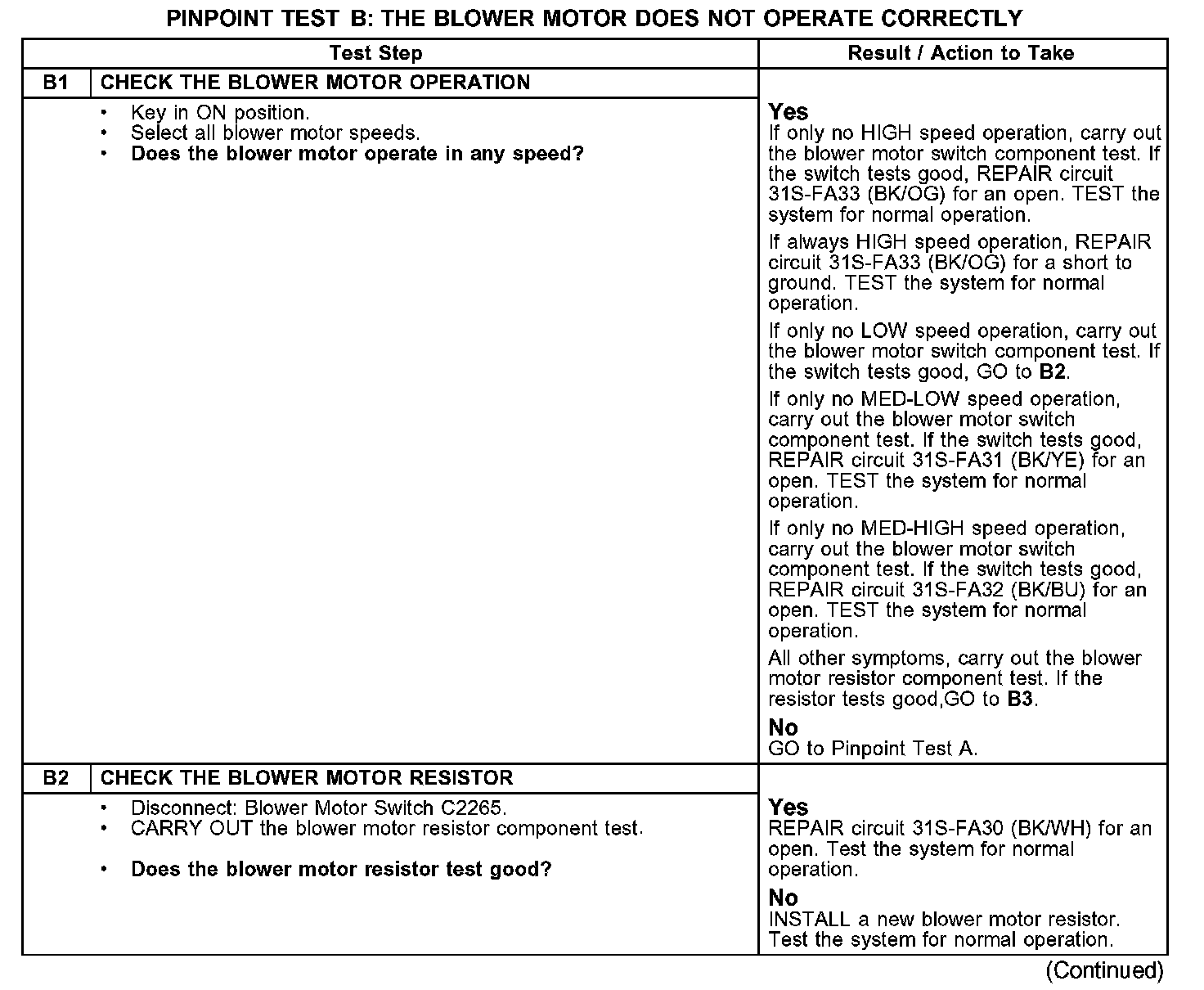

PINPOINT TEST B: THE
BLOWER MOTOR
DOES NOT OPERATE CORRECTLY
B1-B2:
B3-B4:
