Center Mounted Brake Lamp: Service and Repair

HIGH MOUNTED STOPLAMP

Removal and Installation

Sedan
1. Remove the pin-type retainers and the decklid trim panel.

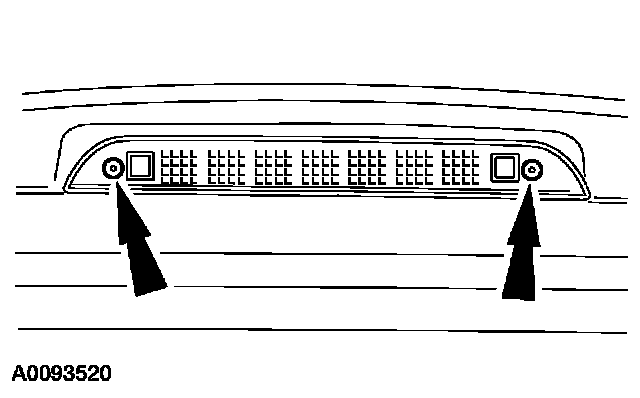

2. Remove the pin-type retainers and the high mounted stop lamp.
- Disconnect the electrical connector.

3-door/5-door/wagon







3. Remove the screws and the high mounted stop lamp.
- Disconnect the electrical connector.

All vehicles
4. To install, reverse the removal procedure.
