Horn: Service and Repair

HORN

Removal and Installation

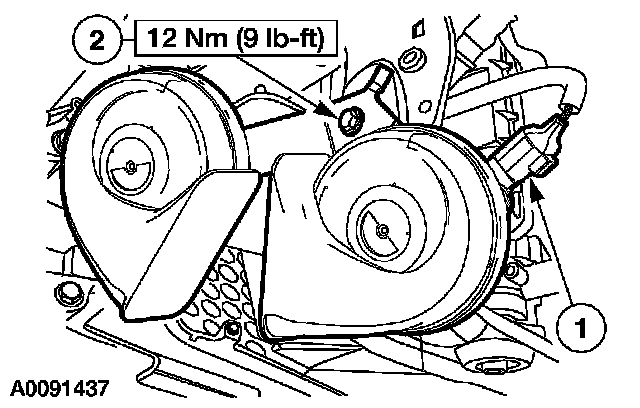

1. Raise and support the vehicle.







2. Remove the horn.
1 Disconnect the electrical connector.
2 Remove the bolt and the horn.

3. NOTE: Make sure the horn bracket is installed into the location hole.

To install, reverse the removal procedure.
