Tail Lamp: Service and Repair

REAR LAMP ASSEMBLY

Removal and Installation

Sedan

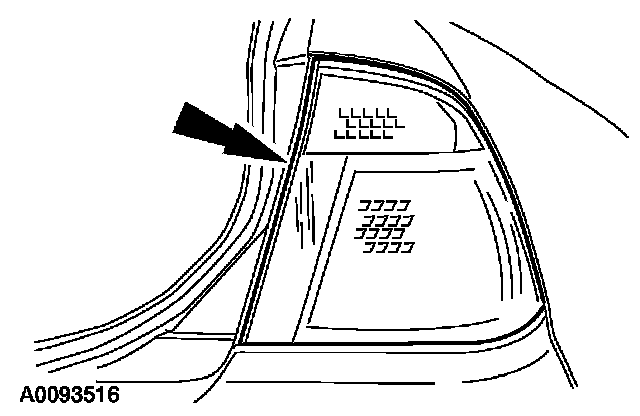

1. Remove the 3 rear lamp retaining nuts.







2. Remove the rear lamp assembly.
- Disconnect the electrical connectors.

3-door/5-door/wagon

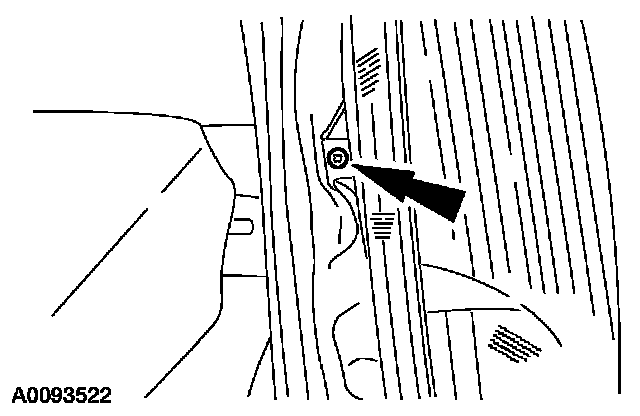

3. Remove the rear lamp retaining nut.







4. Remove the rear lamp retaining screw.







5. CAUTION: When removing the rear lamp, pull the rear lamp assembly straight rearward. Damage to the lamp or window may result if the lamp is twisted or pulled only from the bottom.

Remove the rear lamp assembly.
- Disconnect the electrical connectors.

All vehicles
6. To install, reverse the removal procedure.
