Air Bag Systems: Tools and Equipment

RESTRAINT SYSTEM DIAGNOSTIC TOOL WARNING

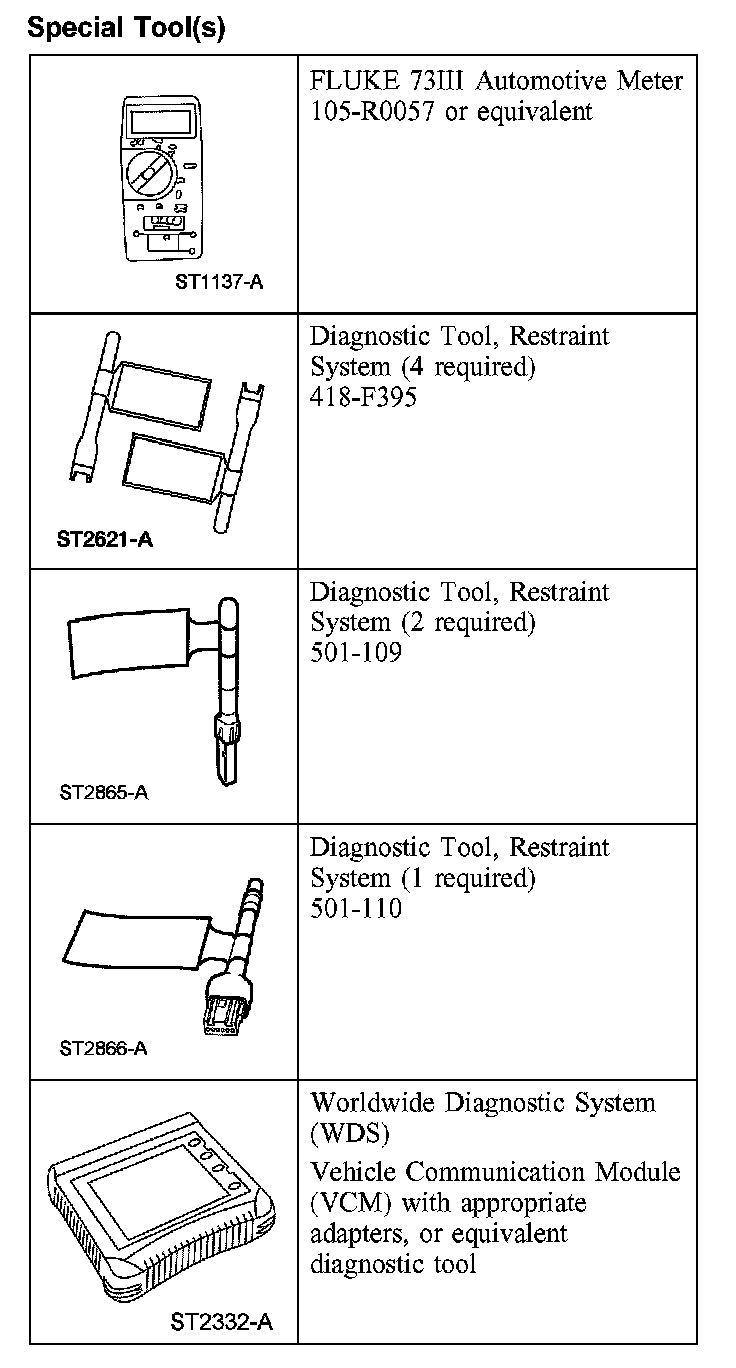

Special Tool(s):

WARNING: Restraint system diagnostic tools are for service only. Remove from vehicle prior to road use. Failure to remove could result in personal injury and possible violation of vehicle safety standards.

Diagnostic Tool Note

NOTE: This vehicle utilizes a communication system called a high-speed controller area network (HS-CAN). When diagnosing the supplemental restraint system (SRS), use an NGS+ (NGS with Vehicle Communication Module (VCM) and the latest software update) Worldwide Diagnostic System (WDS) and the latest software update or equivalent scan tool with the capability of communicating over the HS-CAN bus.
