External Shift Mechanism

External Shift Mechanism

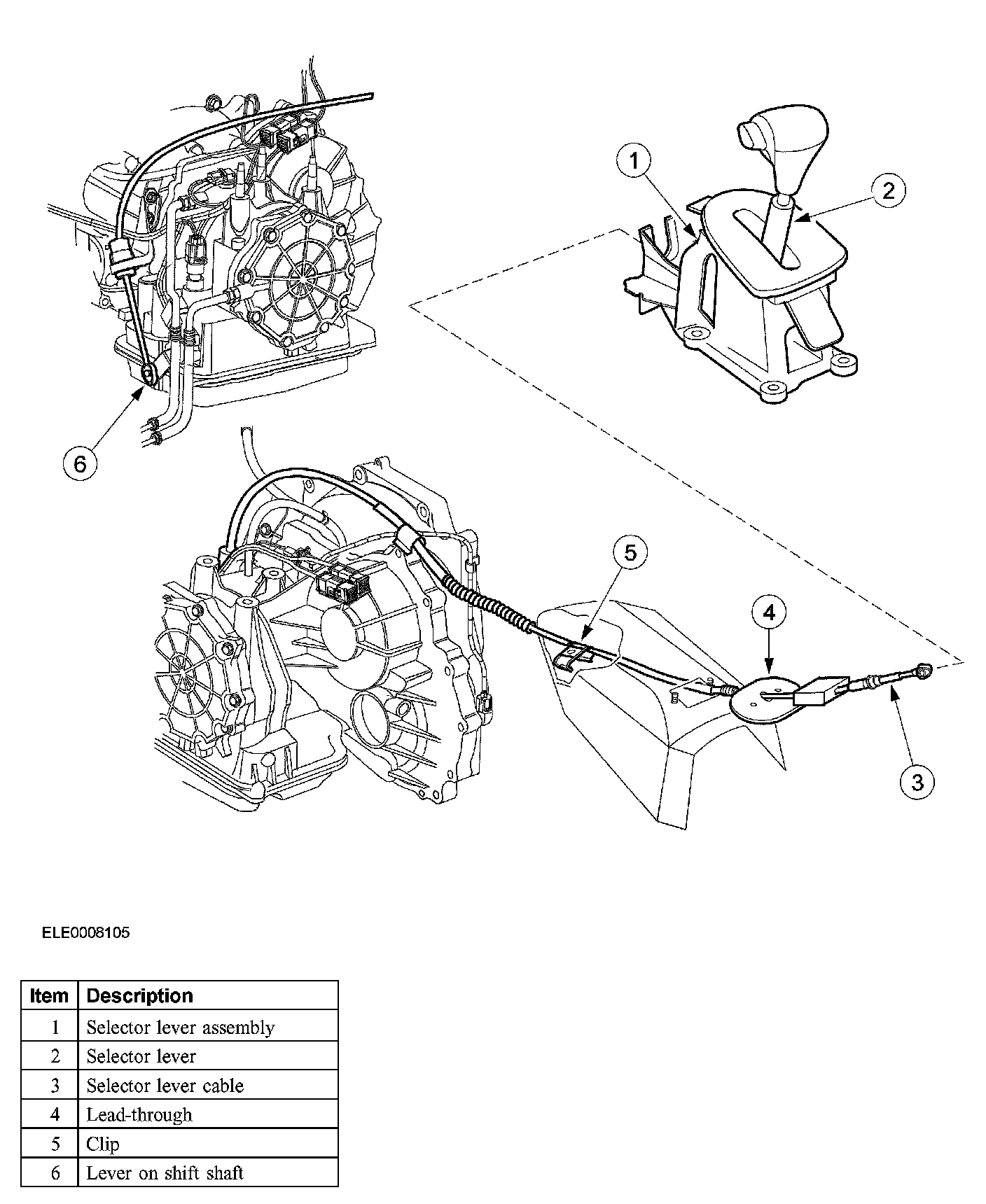

The transaxle end of the manual selector lever cable is attached to a ball on the lever on the manual shaft.

The cable abutments are secured to the transaxle housing, and then to the bracket of the manual selector lever.

The adjuster for the manual selector lever cable is located at the transmission side of the sheath.

At the manual selector lever end the cable is clipped onto a ball.
