Windshield Washer Reservoir: Service and Repair
WINDSHIELD WASHER PUMP AND RESERVOIRHeavy Duty Riveter:
Special Tool(s)
Removal and Installation
WARNING: Windshield washer solution contains methanol, which is poisonous. Observe all cautions and warnings indicated on label of washer solution container. Failure to follow these instructions may result in personal injury.
CAUTION:
- When replacing the windshield washer pump be careful not to damage the rubber grommet.
- Do not operate the windshield washer pump before filling the reservoir. Failure to do so could result in premature pump failure.
1. NOTE: When installing the reservoir, the filler neck must be lubricated using a water-based lubricant.
Remove the bolt and the windshield washer filler neck.
2. Remove the RH fender splash shield.
3. Remove the foam filler and remove the retainer.
4. Remove the screws and the accessory drive splash shield.
5. Remove the 2 bolts and 1 nut.
- Position aside the A/C accumulator.
6. NOTE: When reinstalling the rivet use the special tool.

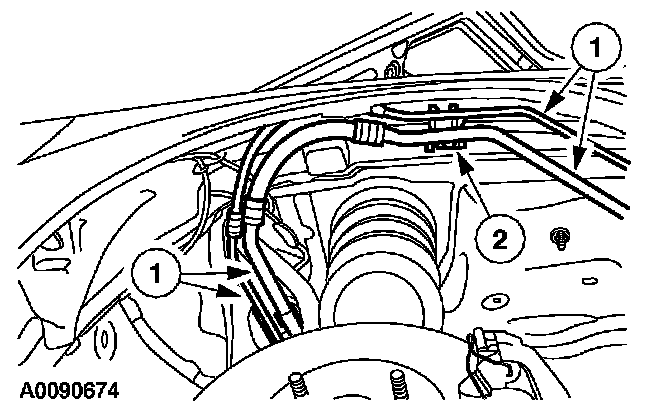

Disconnect the A/C lines from the inner fender well.
1 Unclip the A/C lines and position aside.
2 Drill out the rivet and remove the bracket.
7. NOTE:
- The fender is removed for clarity.
- When reinstalling the washer reservoir secure it by sliding it rearward into position and then installing the upper bolt followed by the lower bolt.
Remove the bolts.
- Slide the windshield washer reservoir assembly forward to release it from the fender reinforcement.
8. Disconnect the windshield washer reservoir.
1 Disconnect the hoses and release the hoses from the washer reservoir.
2 Disconnect the electrical connector and release the wiring harness from the washer reservoir.
9. To install, reverse the removal procedure.
