Antenna, Radio: Service and Repair

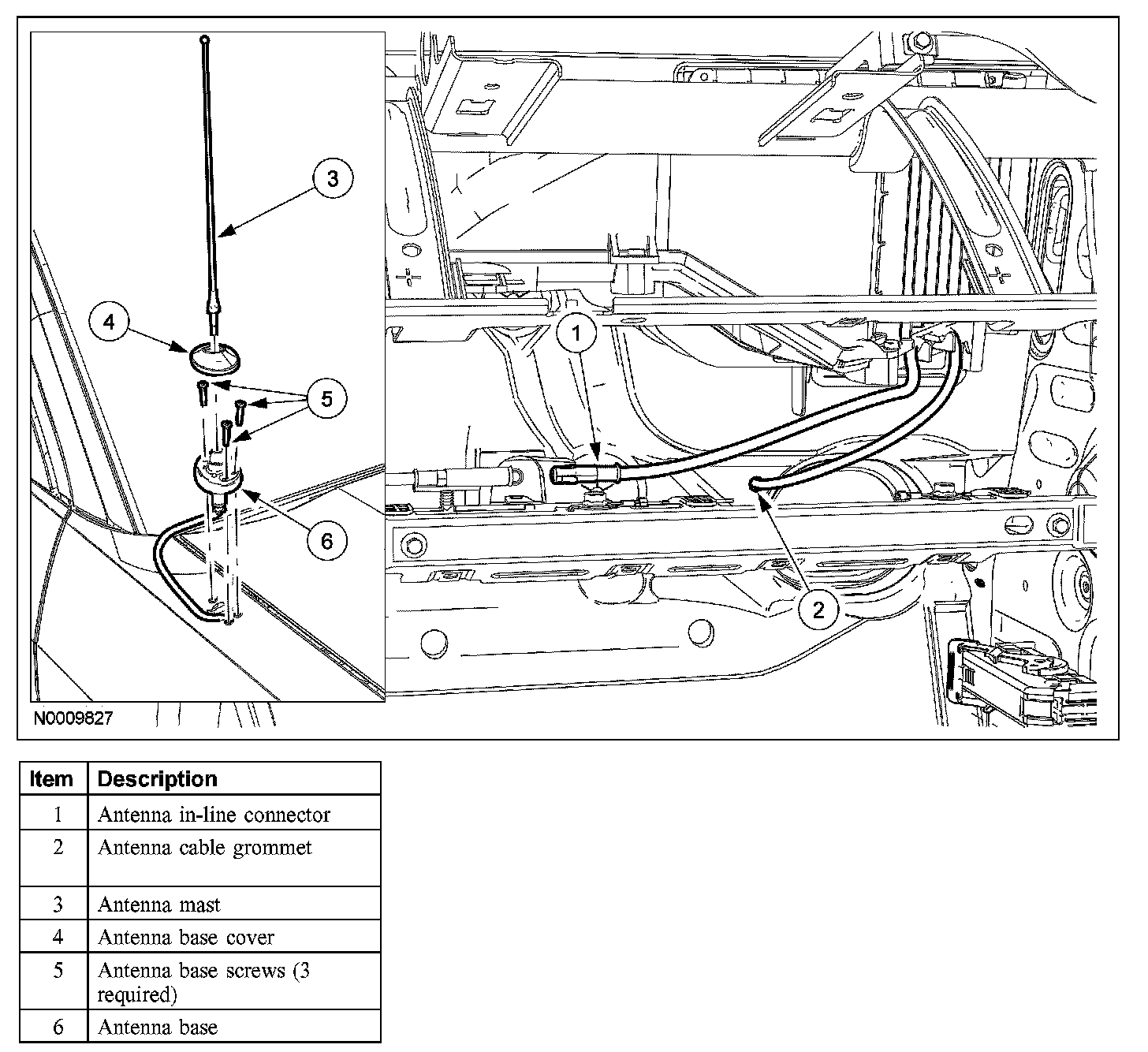

ANTENNA BASE







Removal and Installation
1. Remove the antenna mast.
2. Remove the fender splash shield.
3. Lower the glove compartment door.
4. Disconnect the antenna in-line connector.
5. Push the antenna cable grommet through the bulkhead.
6. Remove the antenna base cover.
7. Remove the 3 screws and the antenna base and cable.
8. To install, reverse the removal procedure.
