Grille: Service and Repair

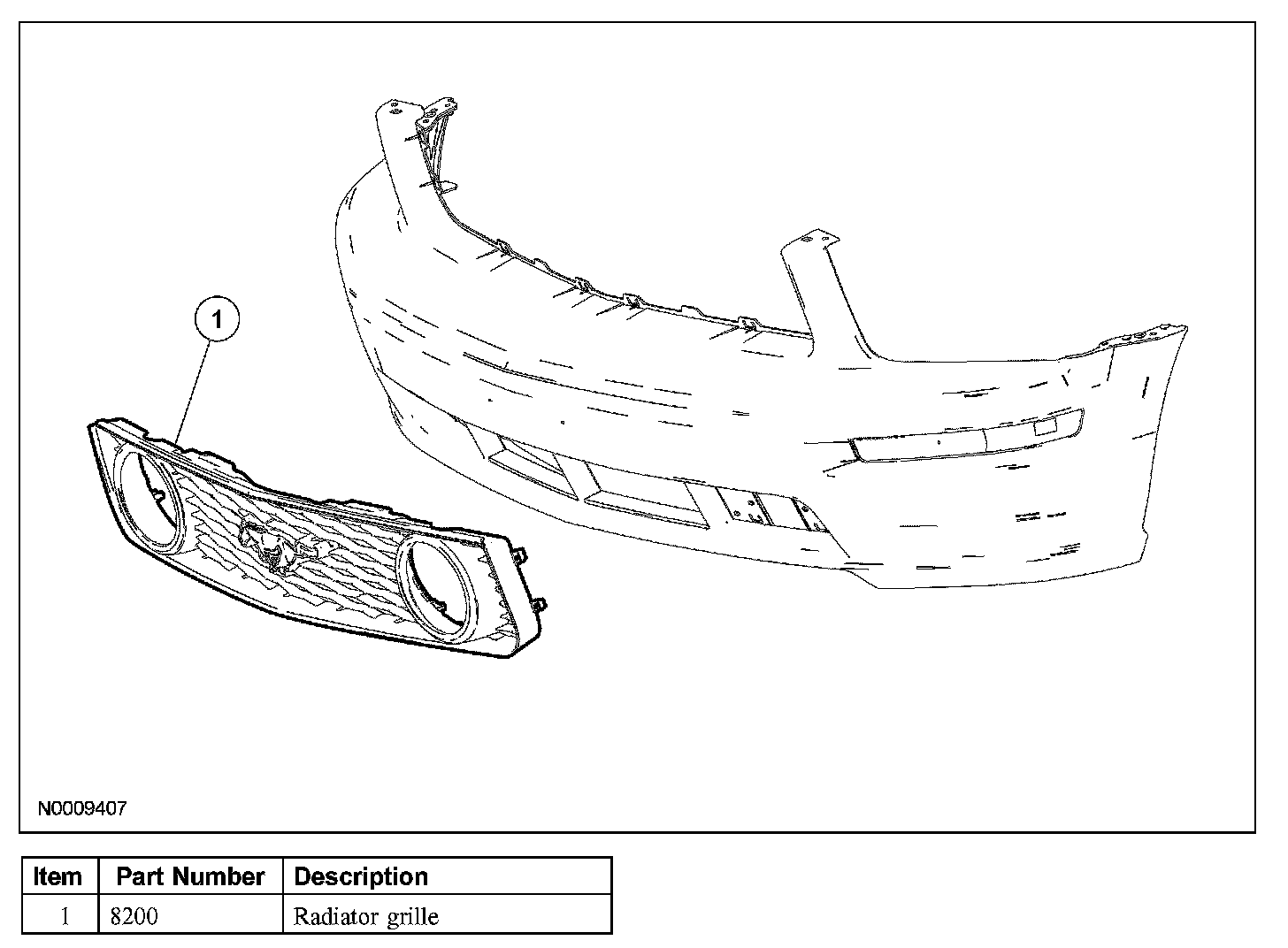

RADIATOR GRILLE







Removal and Installation
1. Remove the front bumper cover.

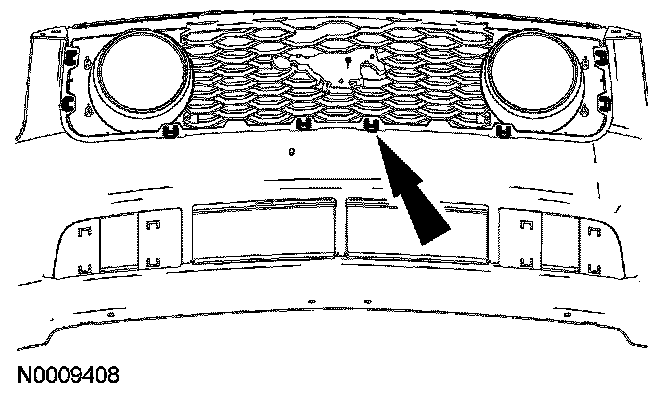

2. Release the 8 radiator grille retaining clips from the front bumper cover and remove the radiator grille.
3. To install, reverse the removal procedure.
