Connector Circuit Reference
Connector Circuit Reference
Connector Circuit Reference
Brake Fluid Level Switch C124

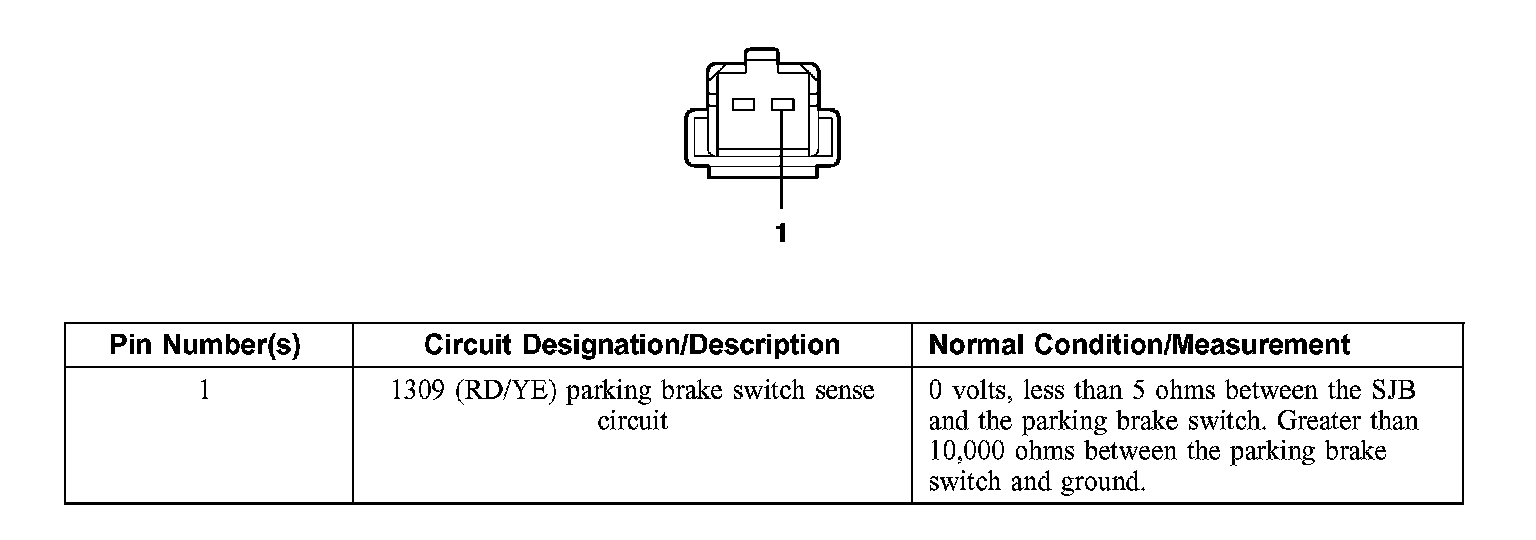

Parking Brake Switch C306
