Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2005
>>
Mustang V6-4.0L VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Exhaust System
Exhaust System
Exhaust System
Exploded View

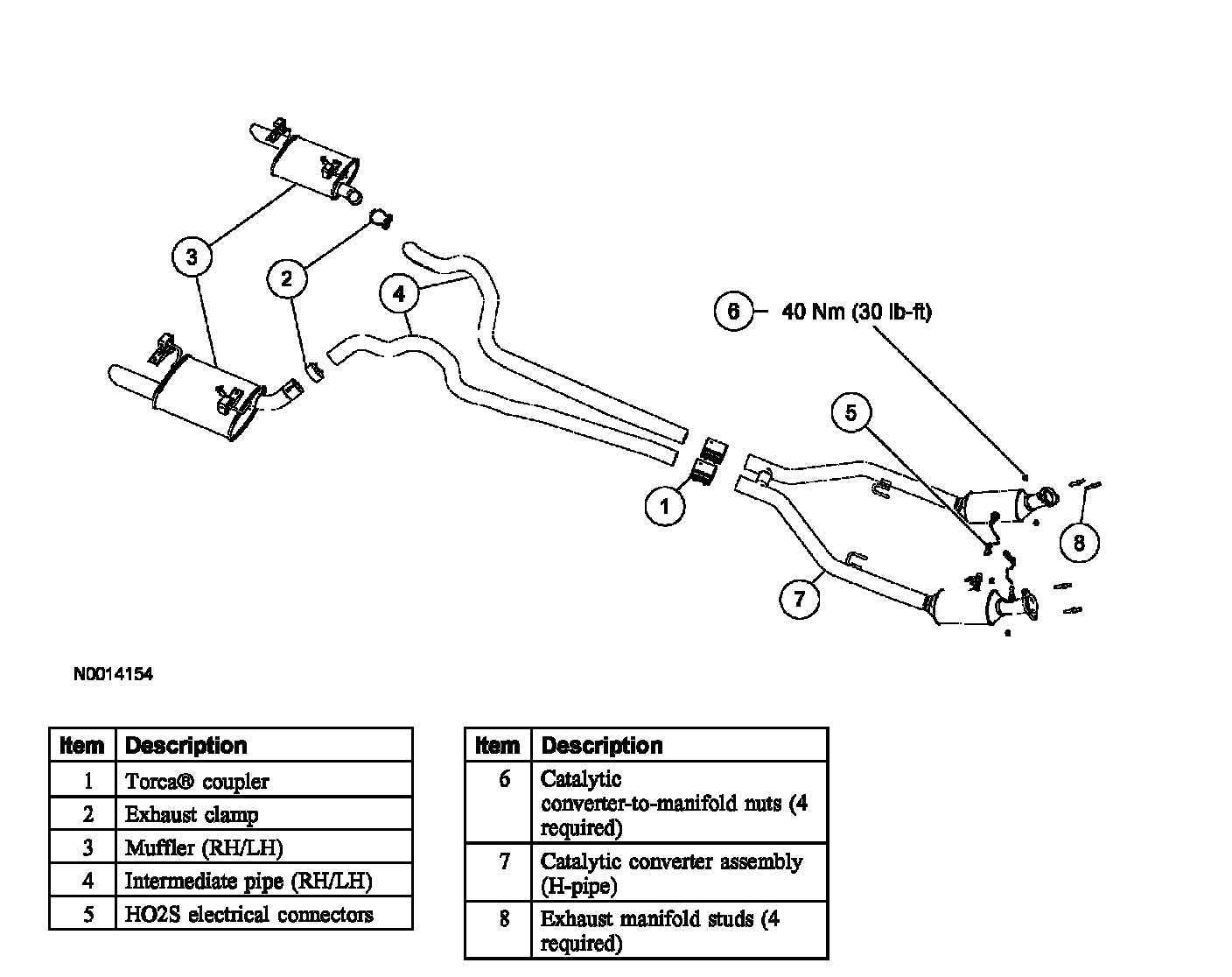

Exhaust System
- 4.0L

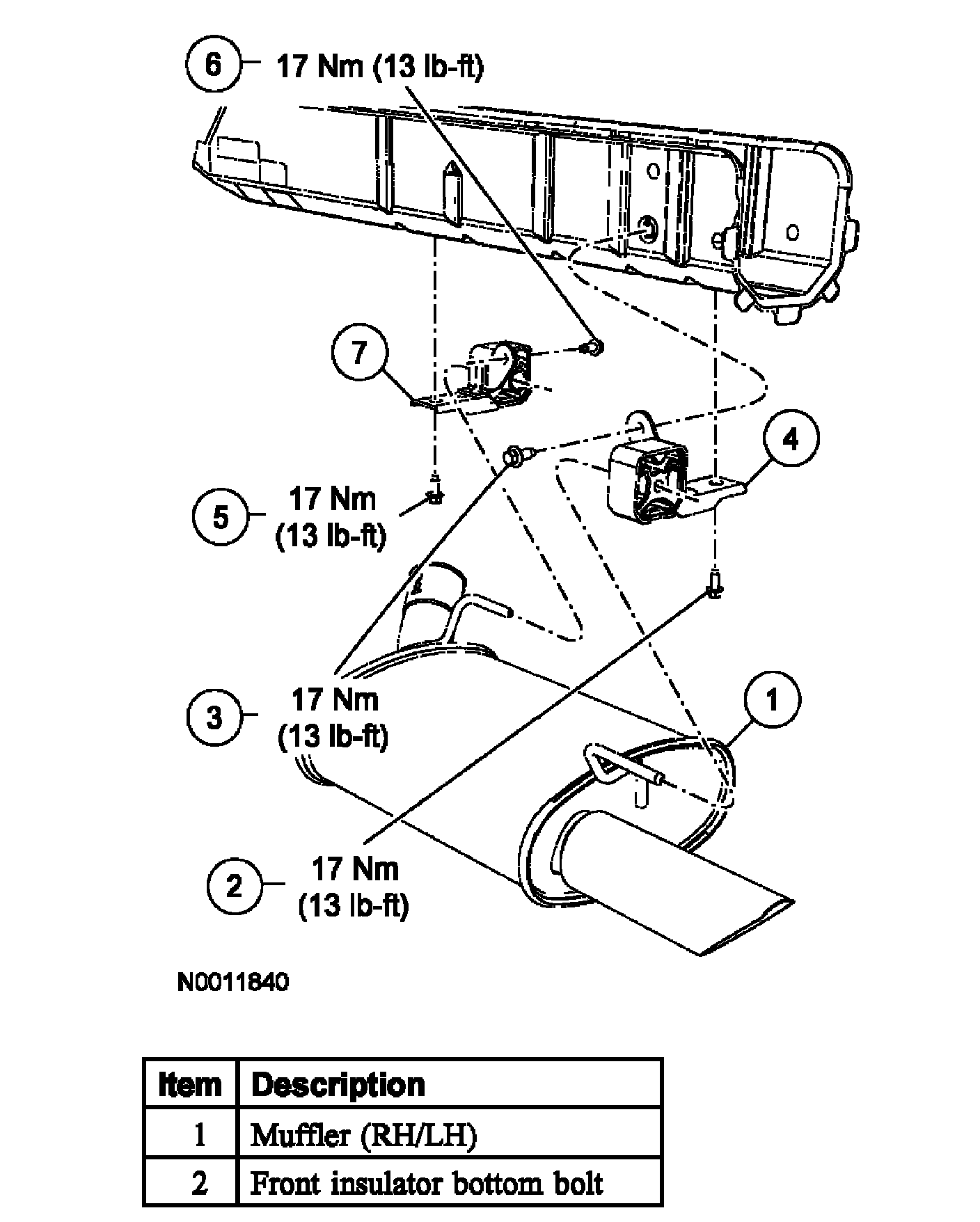

Exhaust System
4.6L
