Cylinder Head Assembly: Specifications

Camshaft bolt 85 Nm (63 ft. lbs.).
Exhaust Manifold nuts 23 Nm (17 ft. lbs.)
Cylinder head gasket surface flatness 0.08 mm (0.003 inch) total





RH Cylinder Head

NOTE: New cylinder head bolts must be installed. They are a torque to yield design and cannot be reused.

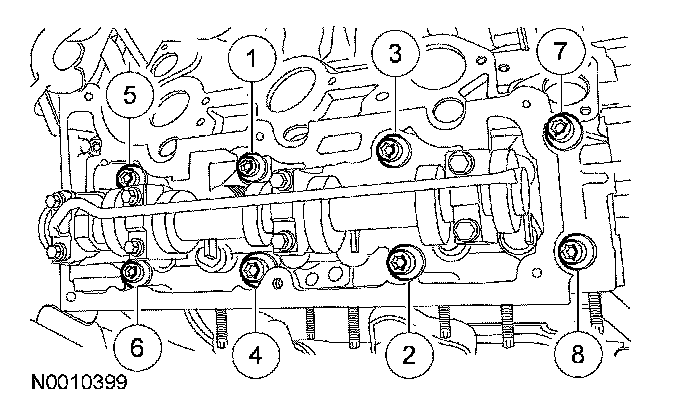

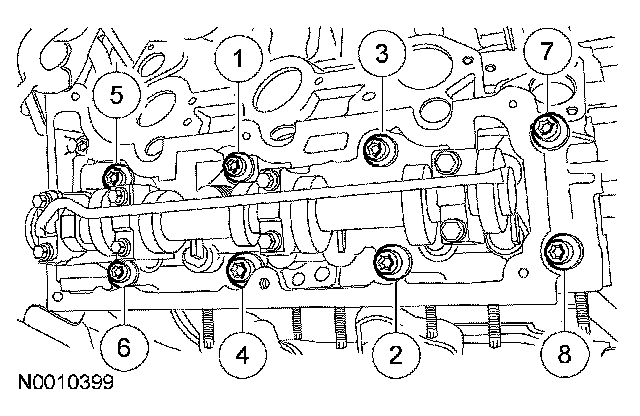

Install 8 new M12 bolts and tighten in the sequence shown in 2 stages.
^ Stage 1: Tighten to 12 Nm (9 ft. lbs.).
^ Stage 2: Tighten to 25 Nm (18 ft. lbs.).





Install 2 new M8 bolts.
^ Tighten to 32 Nm (24 ft. lbs.).





Tighten the 8 M12 bolts in the sequence shown in 2 stages.
^ Stage 1: Tighten 90 degrees.
^ Stage 2: Tighten an additional 90 degrees.

LH Cylinder Head

NOTE: New cylinder head bolts must be installed. They are a torque to yield design and cannot be reused.

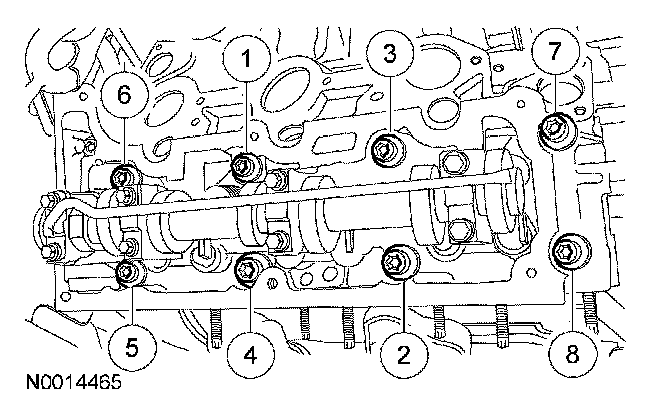

Install 8 new M12 bolts and tighten in the sequence shown in 2 stages.
^ Stage 1: Tighten to 12 Nm (9 ft. lbs.).
^ Stage 2: Tighten to 25 Nm (18 ft. lbs.).





Install 2 new M8 bolts.
^ Tighten to 32 Nm (24 ft. lbs.).





Tighten the 8 M12 bolts in the sequence shown in 2 stages.
^ Stage 1: Tighten 90 degrees.
^ Stage 2: Tighten an additional 90 degrees.





Intake manifold bolts
Tighten in the sequence shown to 10 Nm (89 inch lbs.).





Camshaft bearing caps
Tighten the bolts in the sequence shown in 2 stages
^ Stage 1: Tighten to 6 Nm (53 inch lbs.)
^ Stage 2: Tighten to 16 Nm (12 ft. lbs.)
