Control Assembly: Service and Repair

CLIMATE CONTROL ASSEMBLY

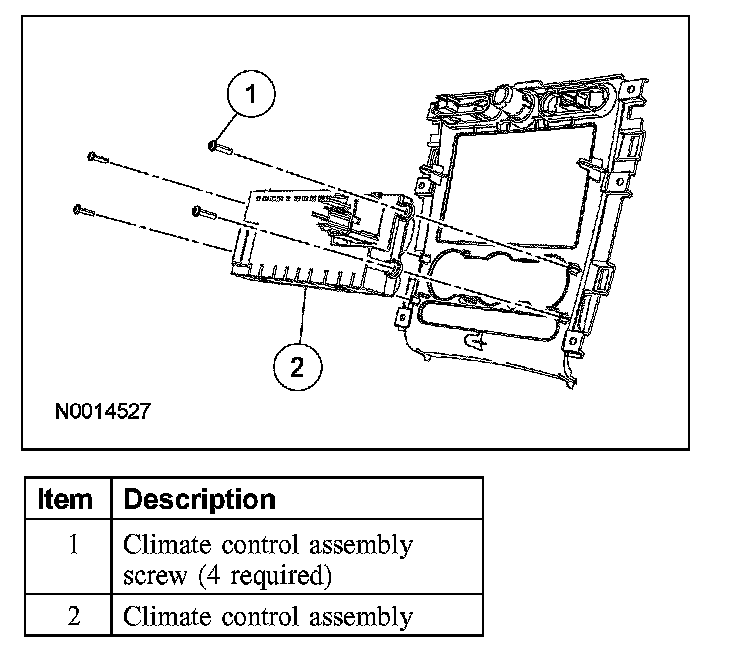

Removal and Installation
1. Remove the center instrument panel finish panel.
2. Remove the 4 climate control assembly screws.
3. Remove the climate control assembly.

4. NOTE: Be sure that all climate control assembly electrical connectors are securely fastened before installing the center instrument panel finish panel.

To install, reverse the removal procedure.
