Instrument Panel, Gauges and Warning Indicators
>>
Description and Operation
>>
Instrument Cluster
Instrument Cluster
INSTRUMENT CLUSTER

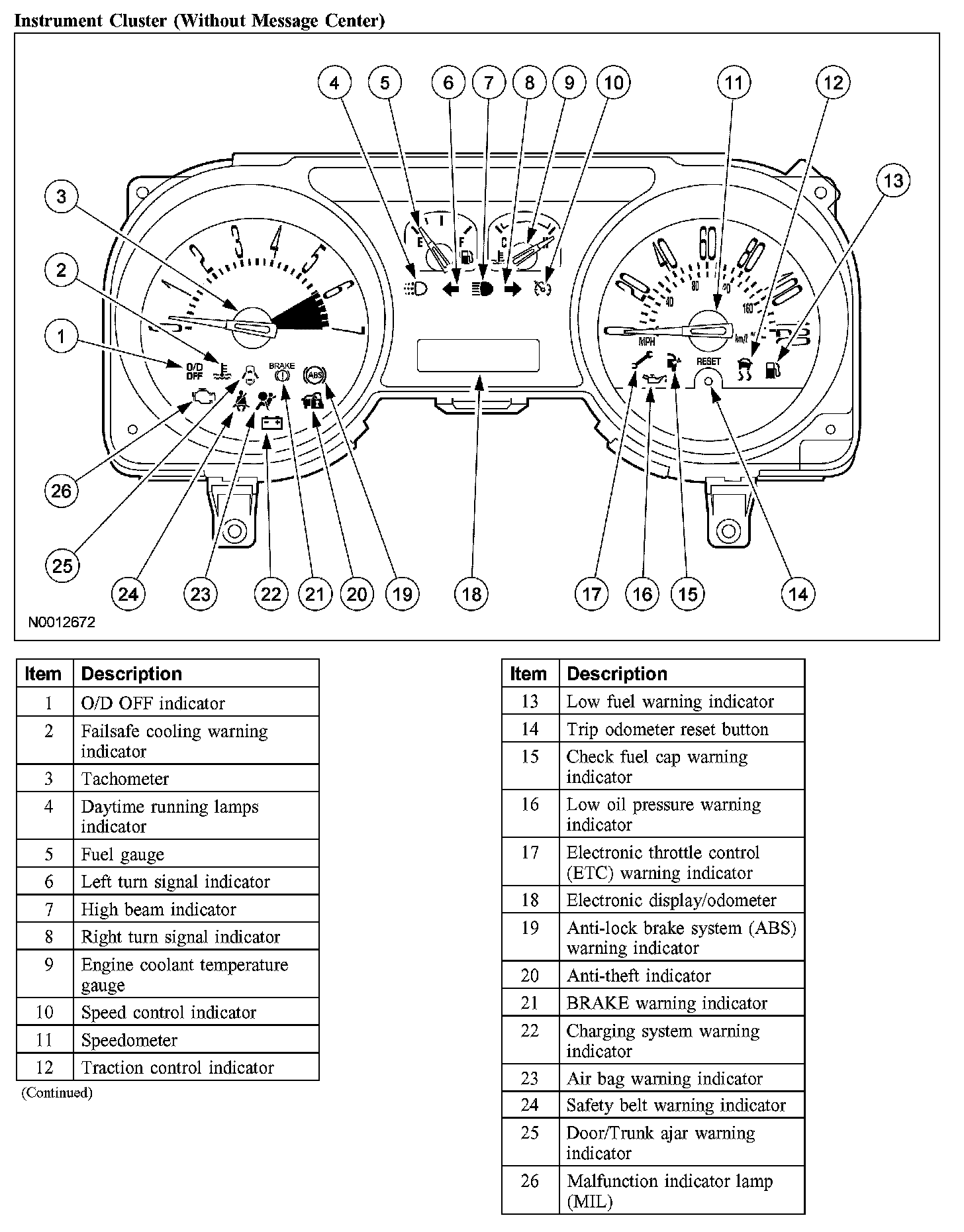

Instrument Cluster (Without Message Center):

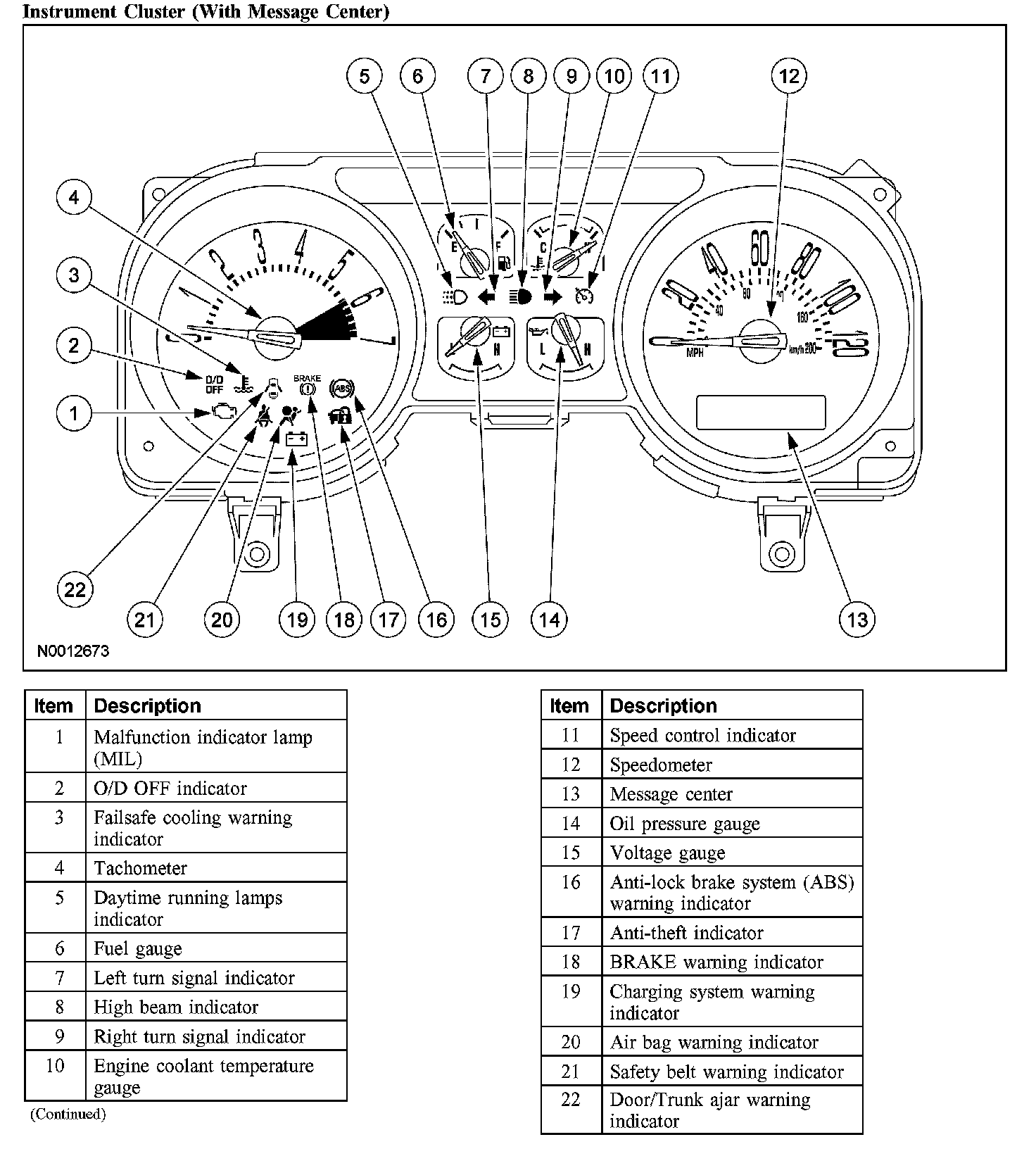

Instrument Cluster (With Message Center):
The instrument cluster consists of the given components.
