Fog/Driving Lamp: Service and Repair

FOG LAMP

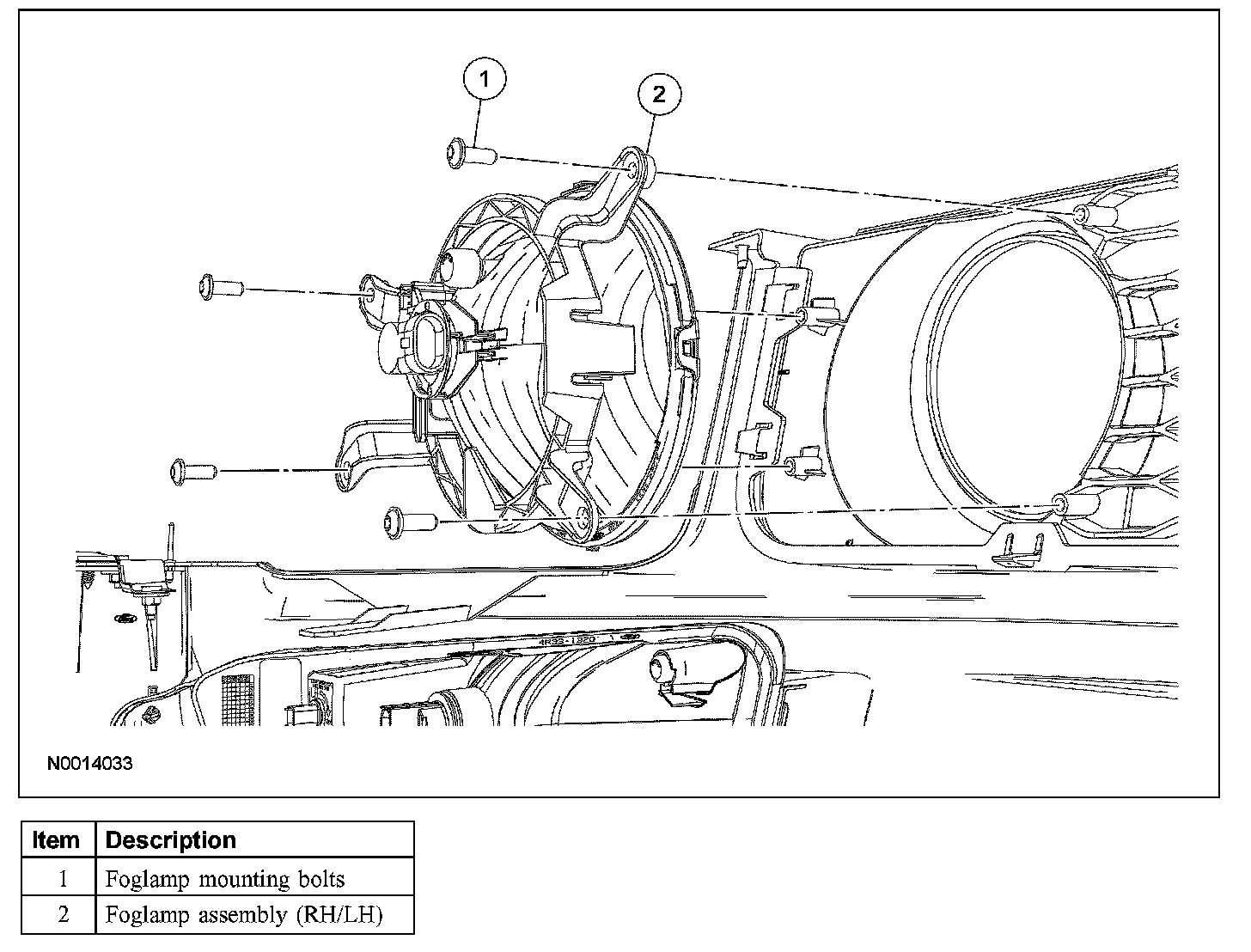

Removal and Installation
1. Remove the front bumper cover.
2. Remove the 4 foglamp mounting bolts.
3. Remove the foglamp assembly.
4. To install, reverse the removal procedure.
