Horn: Service and Repair

HORN







Removal and Installation

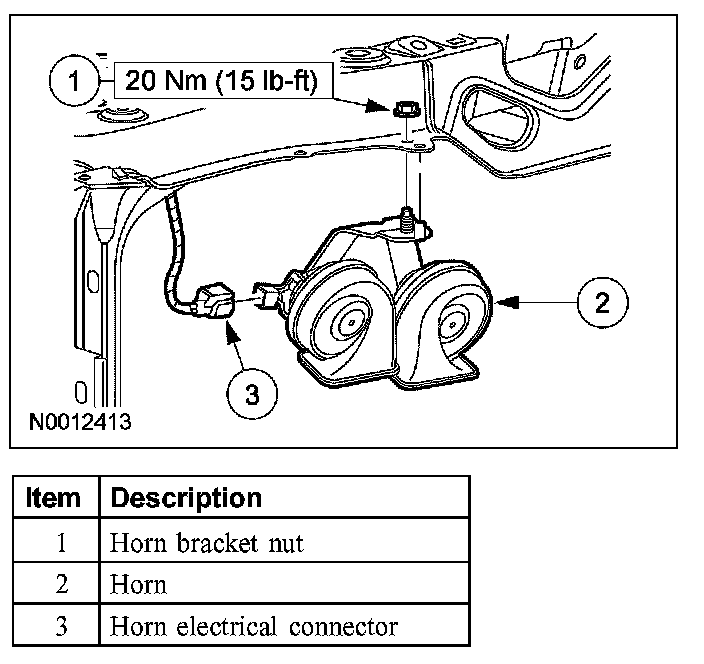

1. Remove the 6 pin-type retainers and the upper radiator sight shield.
2. Remove the horn.
- Remove the horn bracket nut.
- To install, tighten to 20 Nm (15 lb-ft).
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
