Marker Lamp: Service and Repair

SIDE MARKER LAMP - FRONT







Removal and Installation
1. Remove the front fender splash shield.

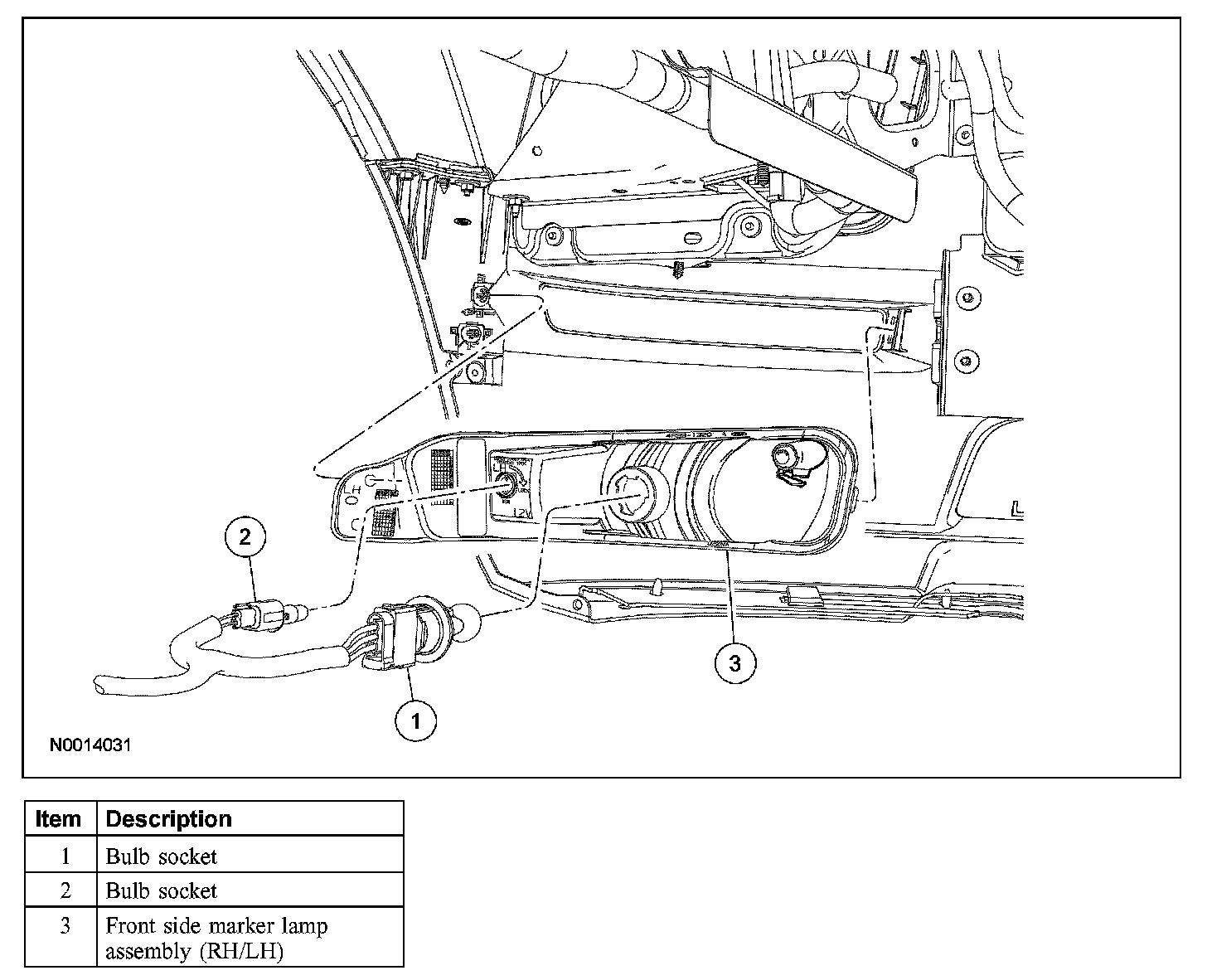

2. Remove the 2 bulb sockets from the front side marker lamp assembly.

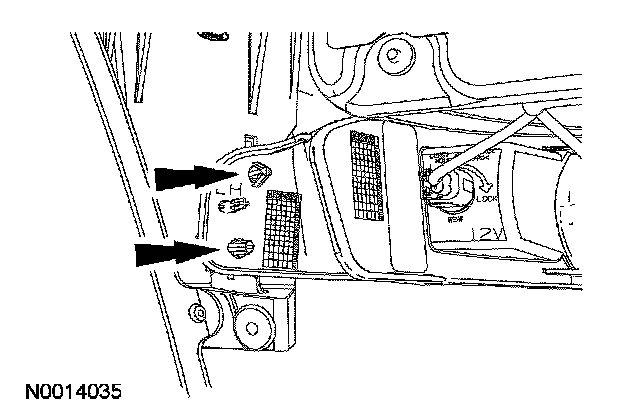

3. Release the 2 locking tabs from the front side marker lamp assembly.
4. Remove the front side marker lamp assembly.
5. To install, reverse the removal procedure.
