Cable Adjustment - Shift Indicator

Selector Lever Cable Adjustment
1. Place the transmission range selector lever in the D position.
2. With the vehicle in NEUTRAL, position it on a hoist.

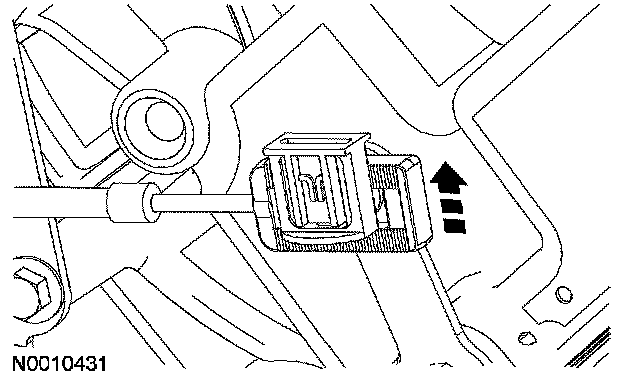

3. Lift the lock upward on the transmission selector cable lock and remove the cable from the manual lever.
4. Place the transmission manual control lever in the D position by rotating the manual lever clockwise to the extent of travel, then rotate counterclockwise 3 detents.

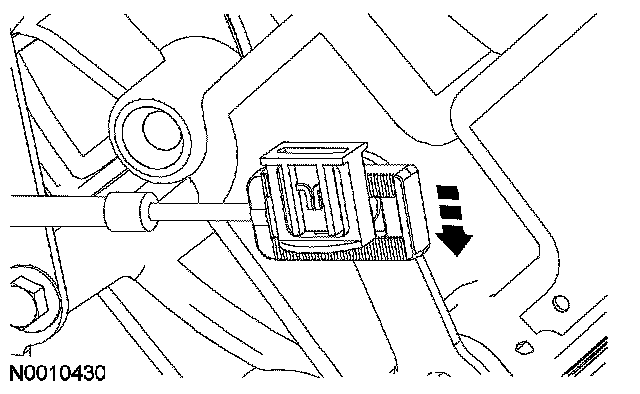

5. Install the transmission selector cable on the manual lever and push the lock downward to lock the selector cable adjustment lock.
