Transmission Cooling

DESCRIPTION AND OPERATION

Transmission Cooling
This vehicle with an automatic transmission is equipped with an auxiliary fluid cooler.

The cooler transfers heat from the transmission fluid to the ambient air.

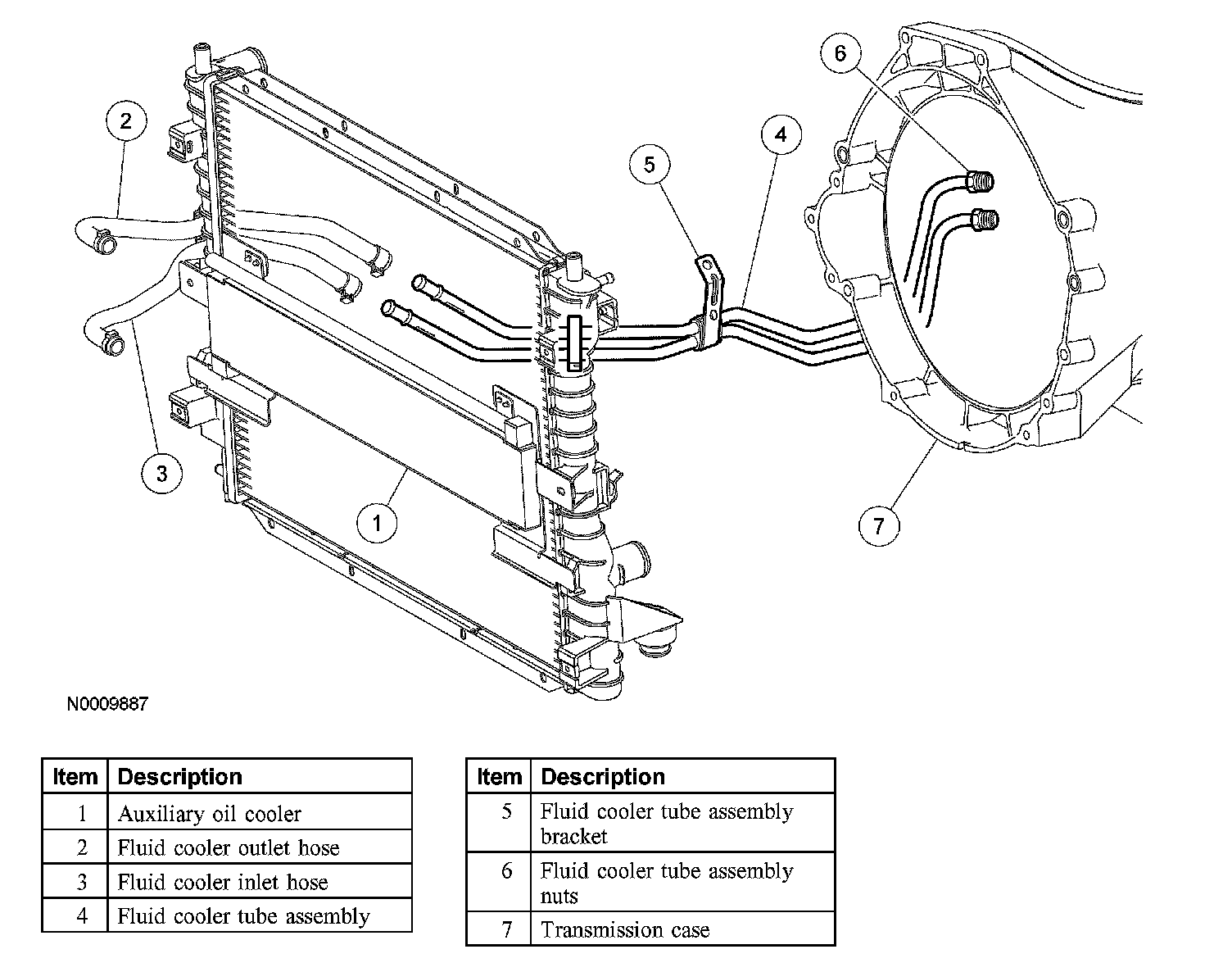

Transmission Fluid Cooler Tubes
