Transmission Description

DESCRIPTION AND OPERATION

Transmission Description
This transmission has the following features:
^ Five forward speeds
^ Electronic shift, pressure and torque converter clutch controls
^ Three compound planetary gearsets
^ Three bands
^ Three multi-plate clutches
^ Two one-way clutches

All hydraulic functions are directed by electronic solenoids. The solenoids control:
^ static engagement feel.
^ shift feel.
^ shift scheduling.
^ modulated torque converter clutch (TCC) applications.
^ engine braking utilizing the coast clutch and band.
^ manual first and second timing.
^ reverse inhibit timing.

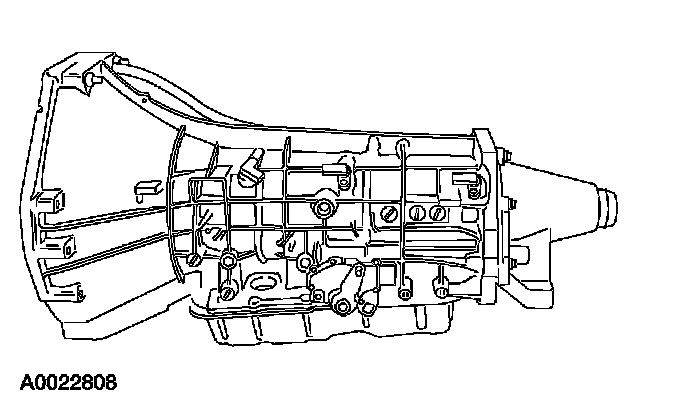

Transmission View
