T5OD

DESCRIPTION AND OPERATION

Manual Transmission
The T50D 5-speed transmission:
^ 5th speed gear functions as an overdrive gear.
^ forward gears are synchronized and helical cut.
^ shift interlock system prevents the engagement of more than one gear.

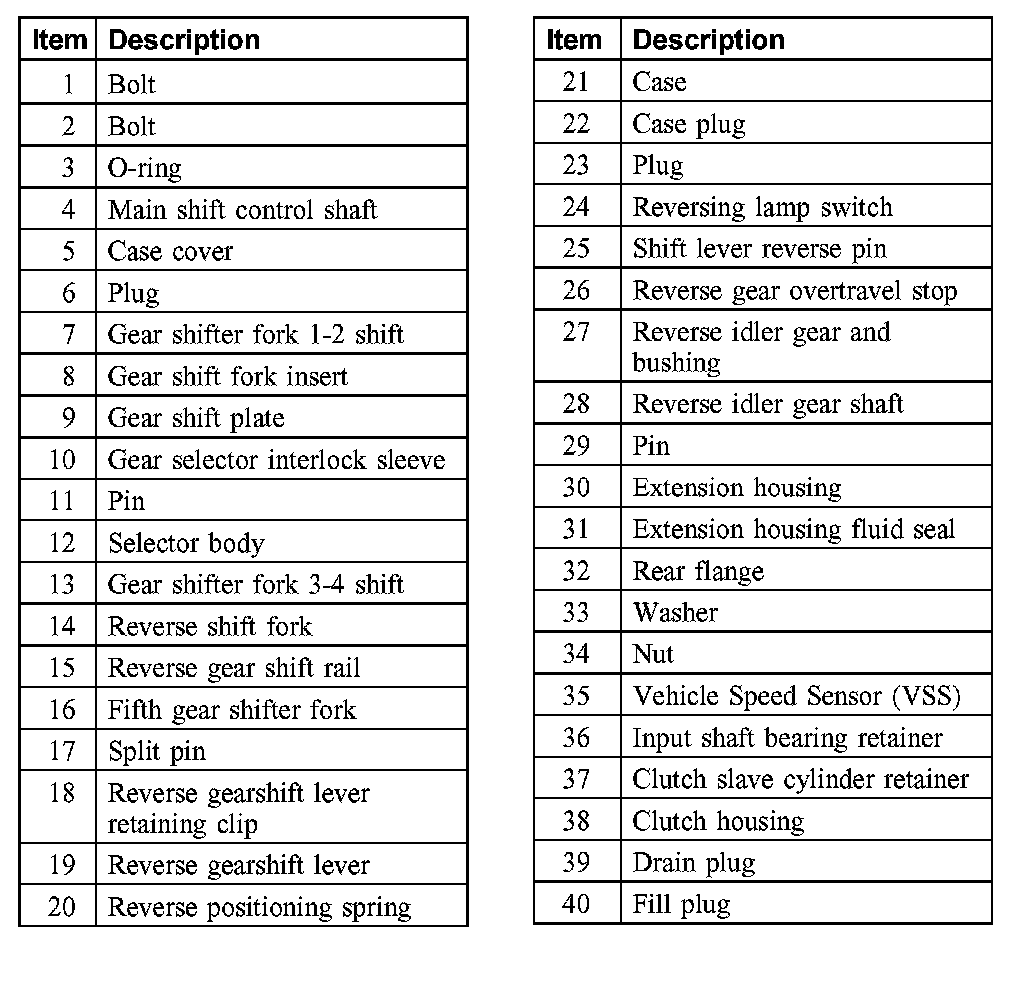

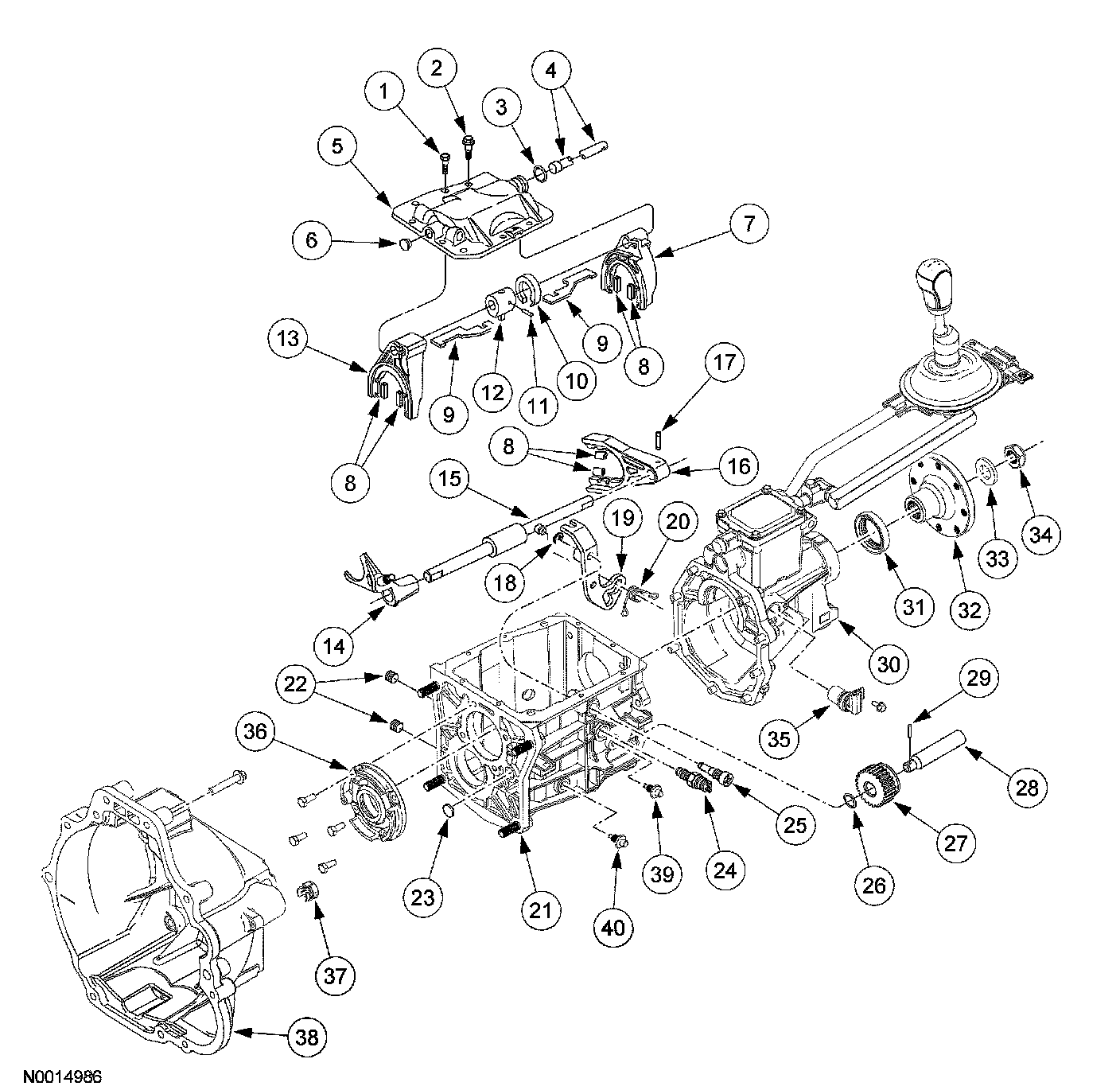

Transmission Internal Components, Shift Components and Case-Disassembled View








Transmission Internal Components-Disassembled View

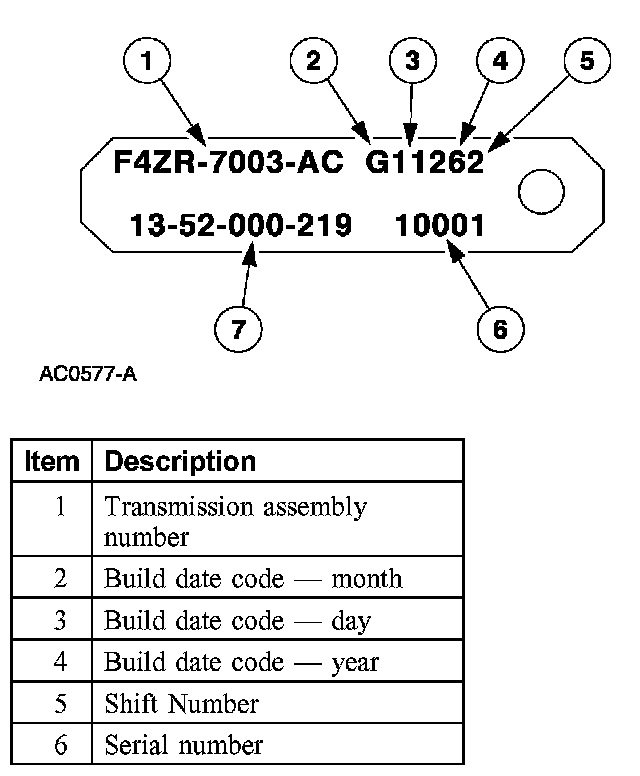

Transmission Identification
The transmission identification tag is located under the lower left bolt that retains the extension housing to the case.








Transmission Identification Tag
