Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2005
>>
Taurus V6-3.0L VIN 2 Flex Fuel
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Steering
>>
Description and Operation
>>
Steering System
Steering System
Steering
System

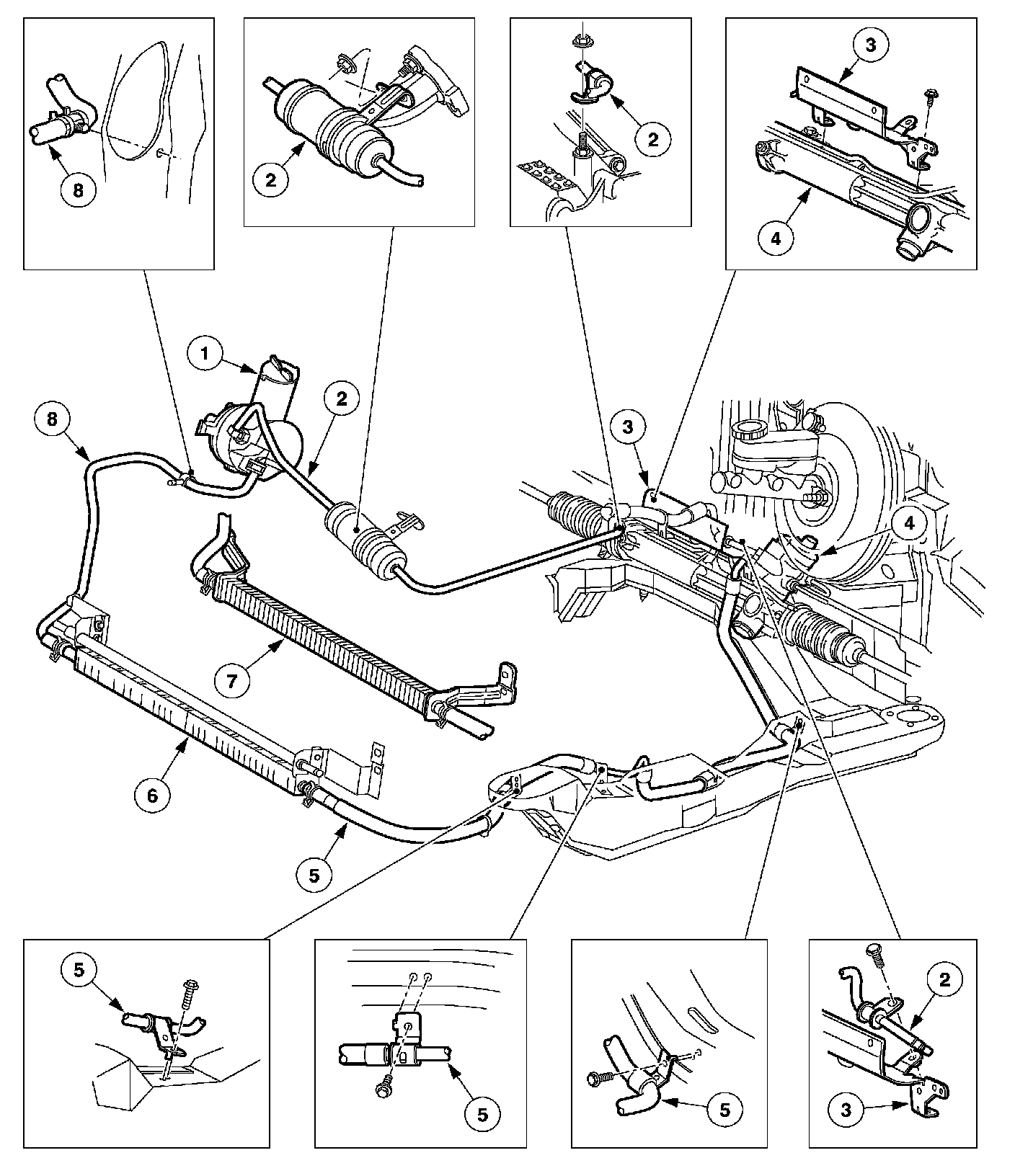

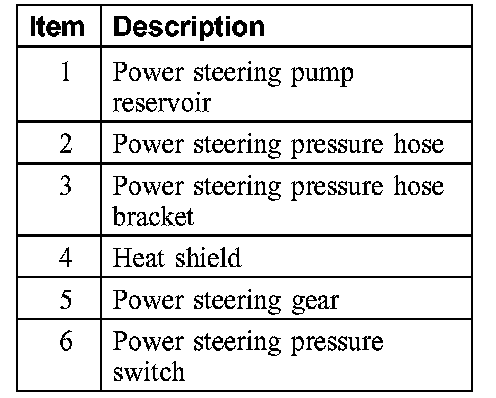

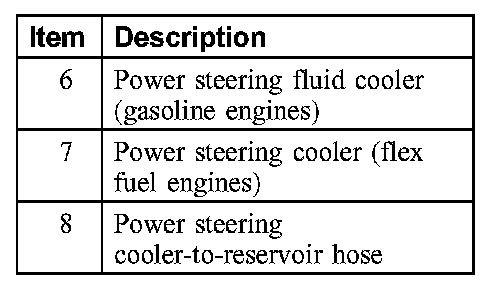

System View - 3.0L, 2V Engine (CII Pump)

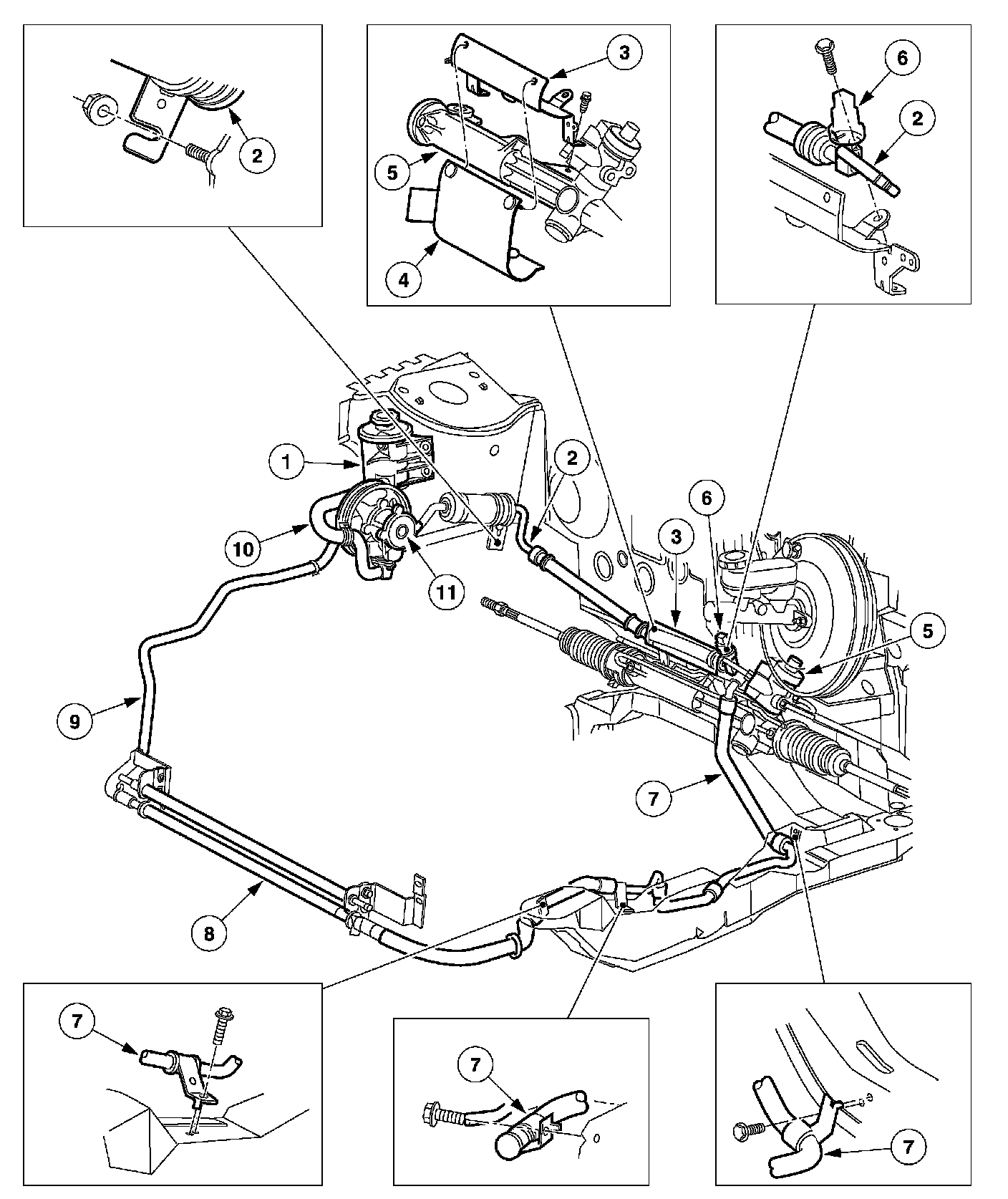

System View - 3.0L, 4V Engine (CIII Pump)
