Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2005
>>
Taurus V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Instrument Cluster and Panel Illumination
>>
Test C: The Integrated Control Panel Illumination Is Inoperative
Test C: The Integrated Control Panel Illumination Is Inoperative
PINPOINT TEST C: THE INTEGRATED CONTROL PANEL ILLUMINATION IS INOPERATIVE
C1-C2:

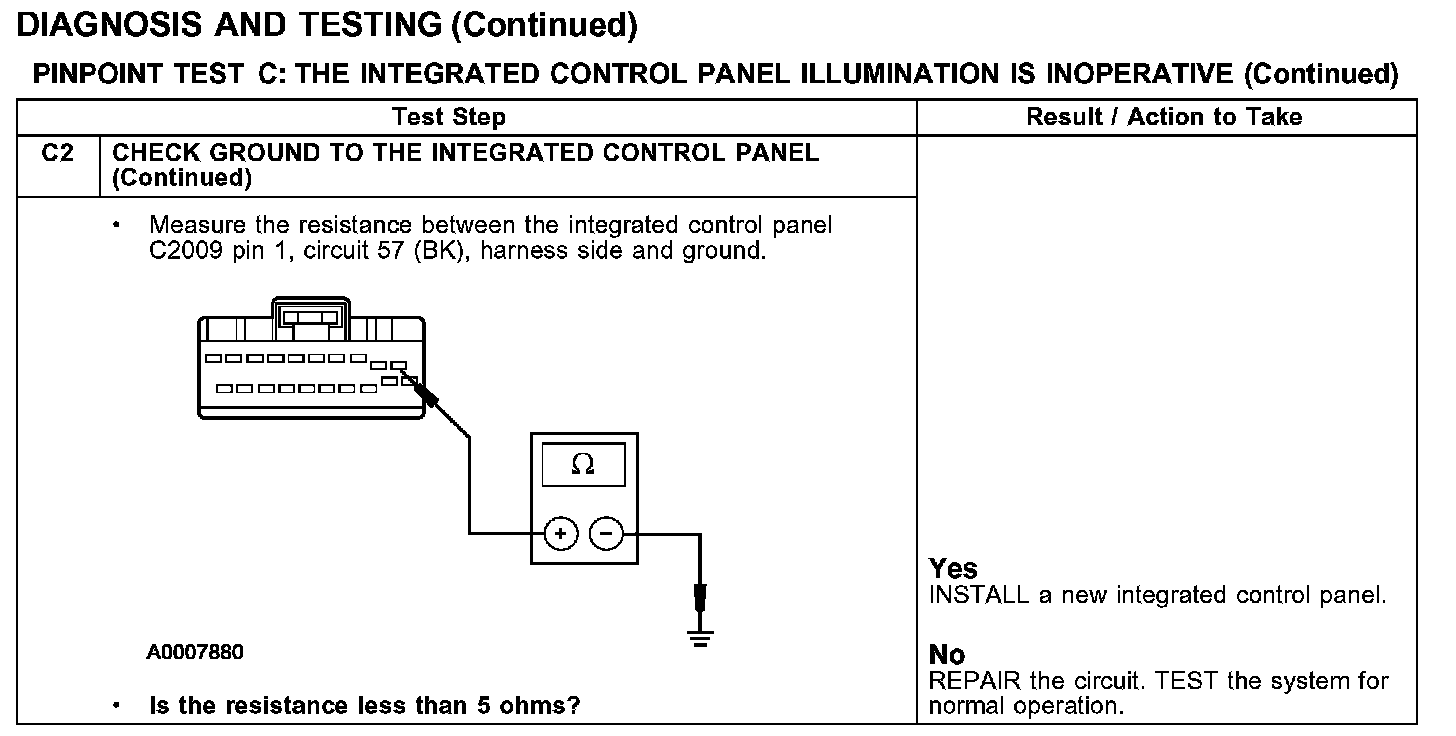

C2 Continued:
