Home >> Ford >> 2005 >> Taurus V6-3.0L VIN U >> Repair and Diagnosis >> Lighting and Horns >> Sensors and Switches - Lighting and Horns >> Brake Light Switch >> Locations

Brake Light Switch: Locations

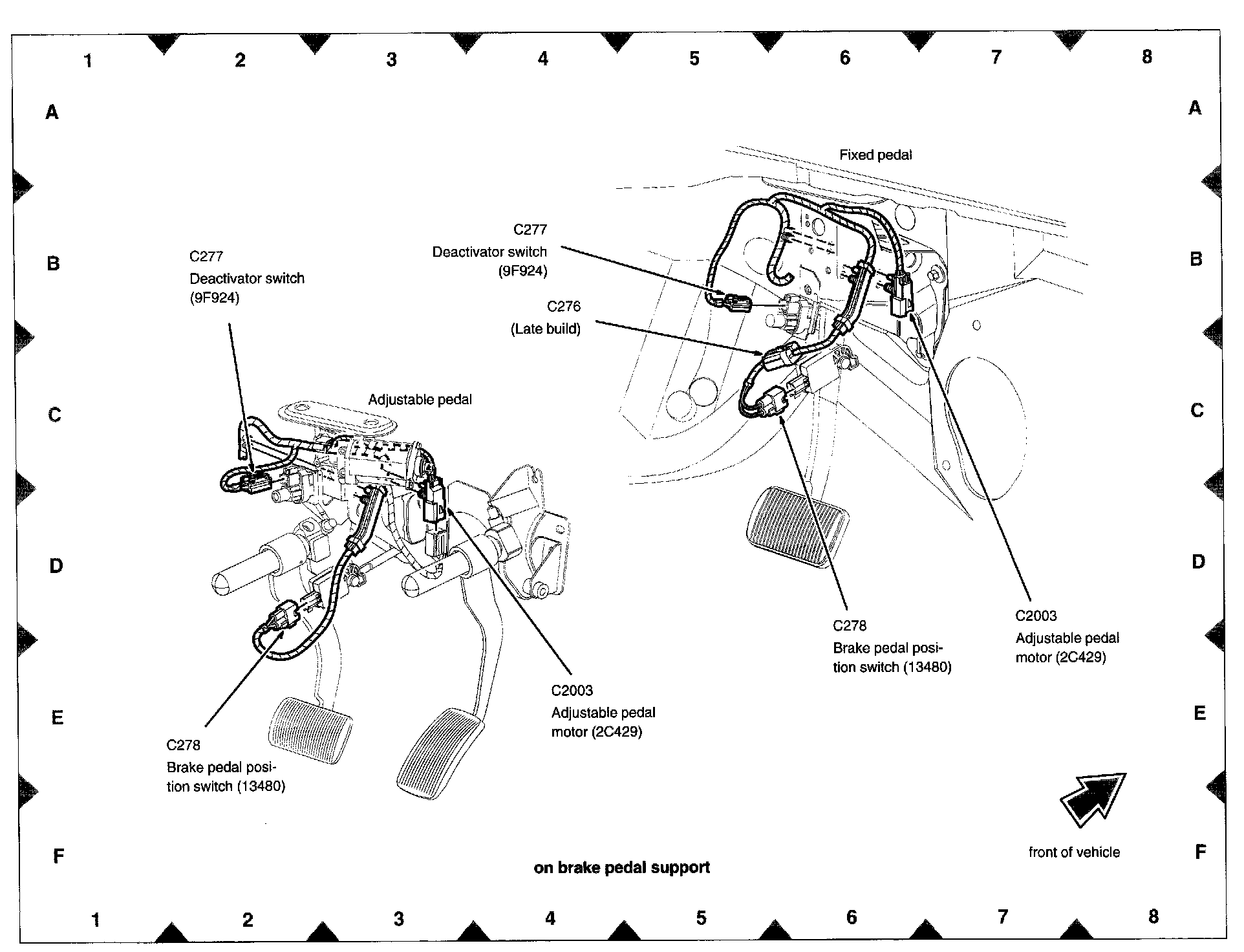

View 151-21 (on Brake Pedal Support):
