Antenna, Radio: Service and Repair

ANTENNA BASE







Removal and Installation

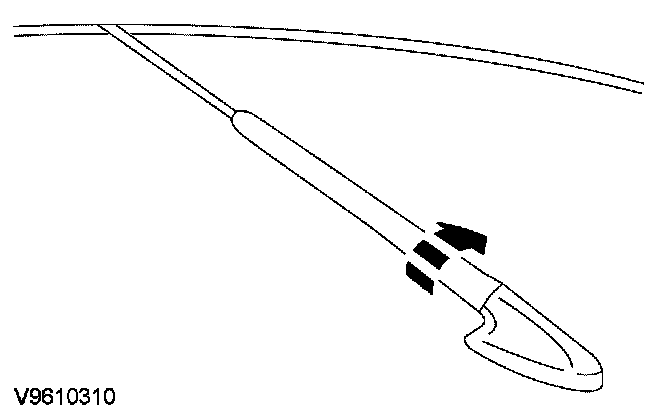

1. Remove the antenna mast from the base.
- Rotate the mast counterclockwise.







2. Remove the interior lamp.

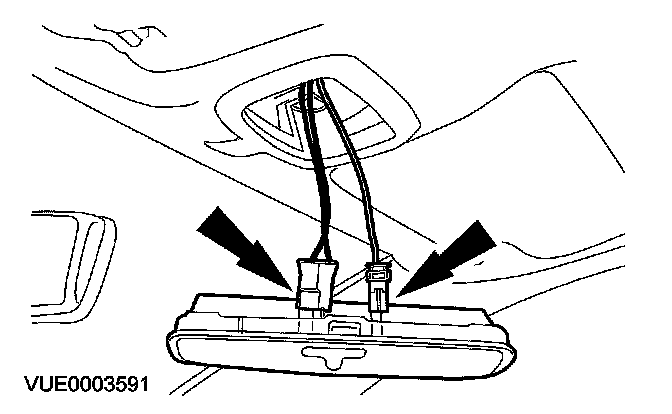

- Disconnect the interior lamp electrical connectors.

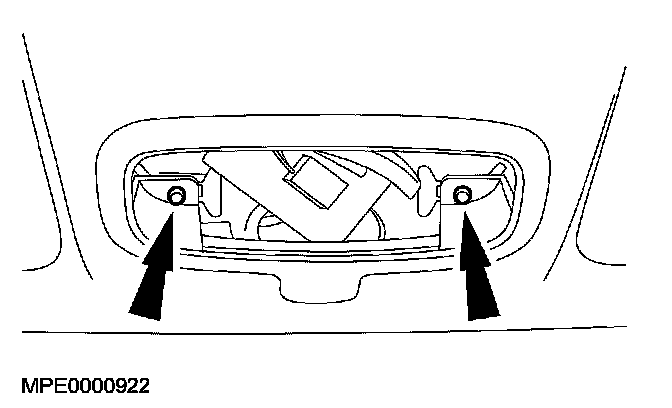

3. Remove the 2 screws and the interior lamp bezel.
4. If equipped, remove the overhead console.

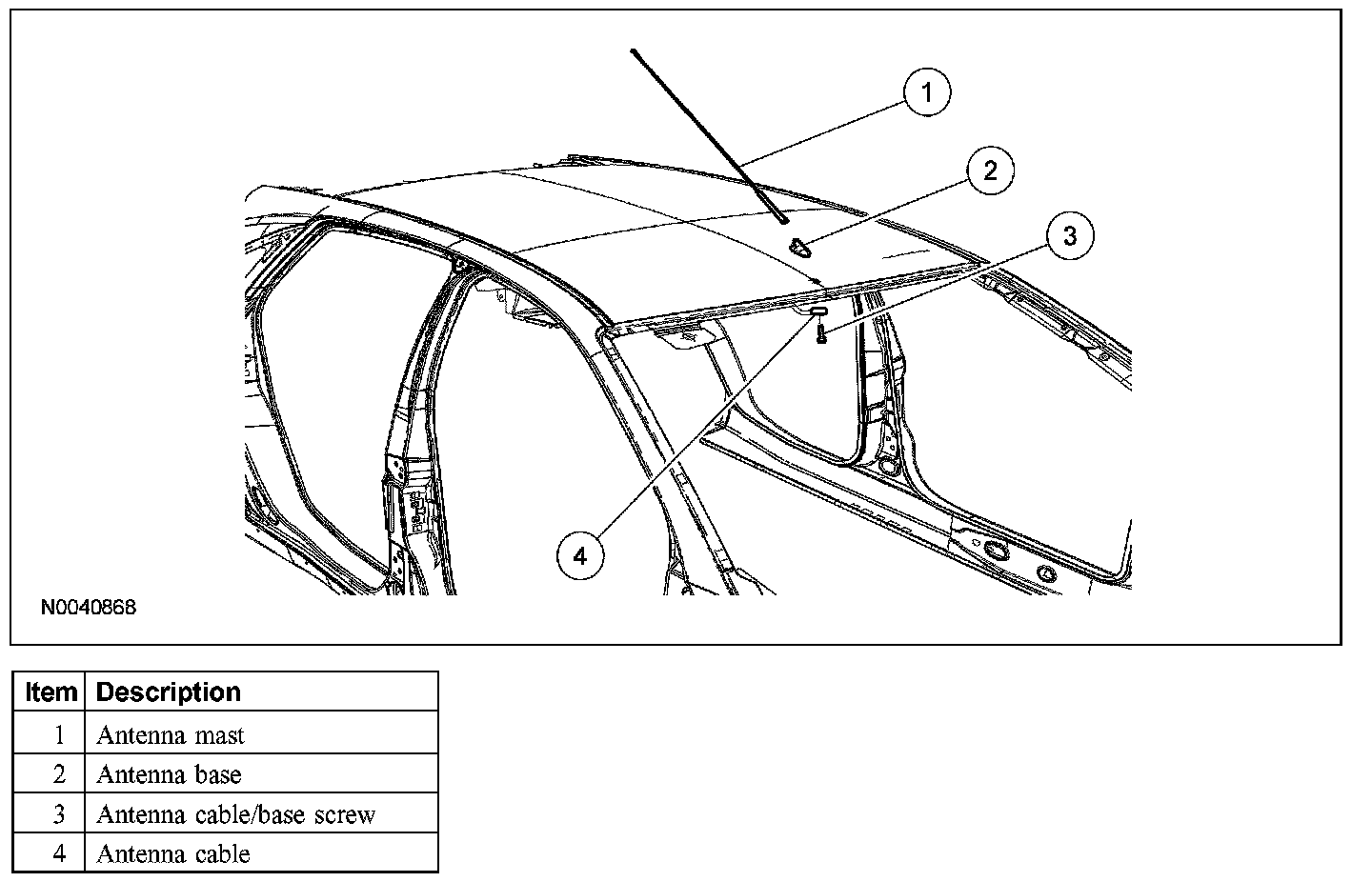

5. Remove the antenna cable/base screw and the antenna base.
6. To install, reverse the removal procedure.
