Exterior Mirror Glass

EXTERIOR MIRROR GLASS

Removal

NOTE: This procedure only applies to ST sedan vehicles equipped with breakaway-type mirrors.

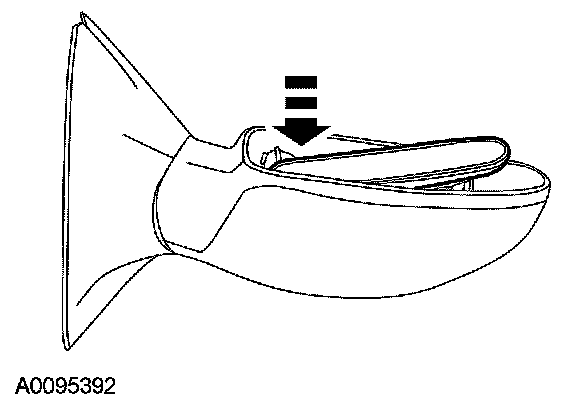

1. Press down on the exterior mirror glass to position it inwards.







2. CAUTION: Be sure not to damage the wiring, damper or spring assembly.

NOTE: While keeping the exterior mirror glass in the inward position, pull the exterior mirror glass to the outward position.

Remove the mirror glass.
- If equipped, disconnect the exterior heated mirror glass electrical connectors.

Installation

1. NOTE: Place the wires under the mirror motor for correct mirror operation.

If equipped, connect the exterior mirror glass electrical connectors.

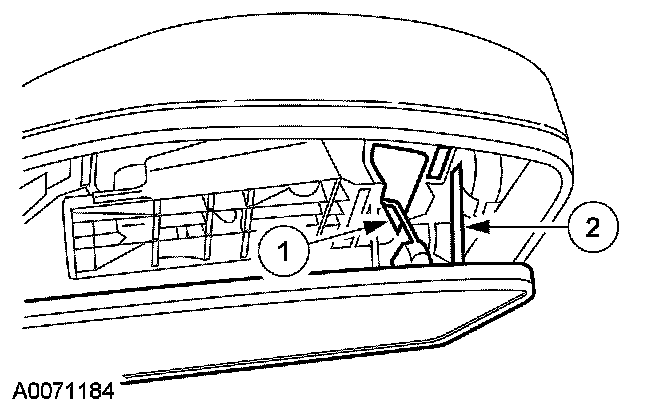

2. NOTE: Place the vibration spring in front of the mirror case reinforcement wall and place the vibration damper blade in the mirror case reinforcement slot.

Install the mirror glass.
1 Place the vibration spring into position.
2 Insert the vibration damper blade into the reinforcement slot.







3. Apply even pressure on both sides of the exterior mirror glass.
- The exterior mirror glass will lock into the exterior mirror motor.







4. NOTE: Make sure the exterior mirror glass is locked onto the exterior mirror motor.

Apply slight pressure on the exterior mirror glass.
