Radiator Cooling Fan Motor Relay
>>
Low Speed Engine Cooling Fan Relay B
Low Speed Engine Cooling Fan Relay B

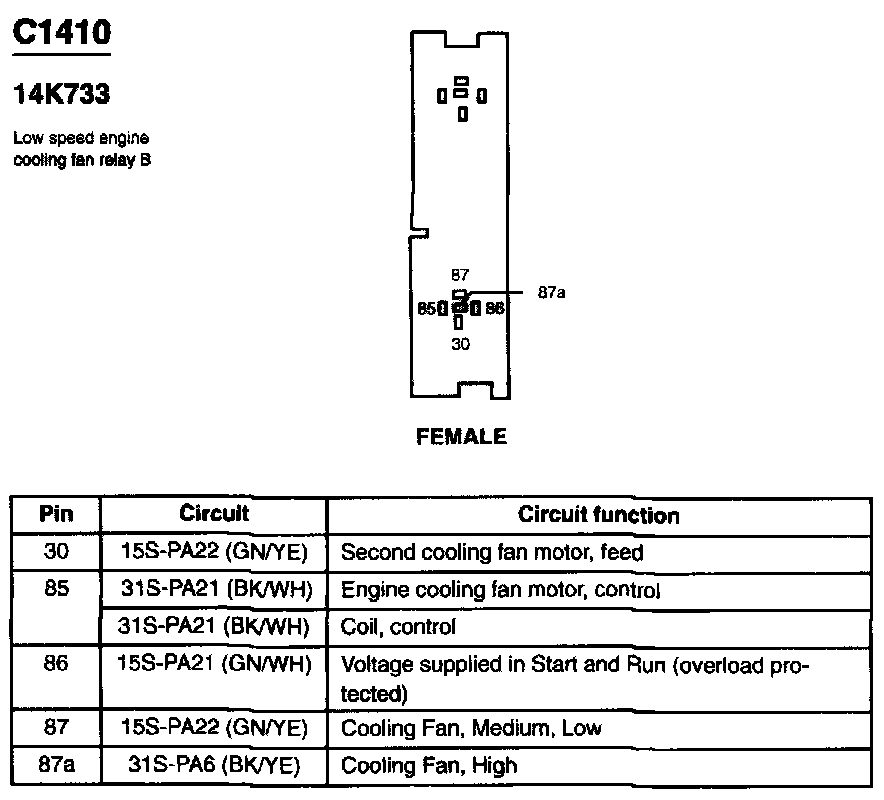

C1410:
