Engine
>>
Engine Lubrication
Engine Lubrication
Oil Filter Adapter and Oil Pressure Sender:

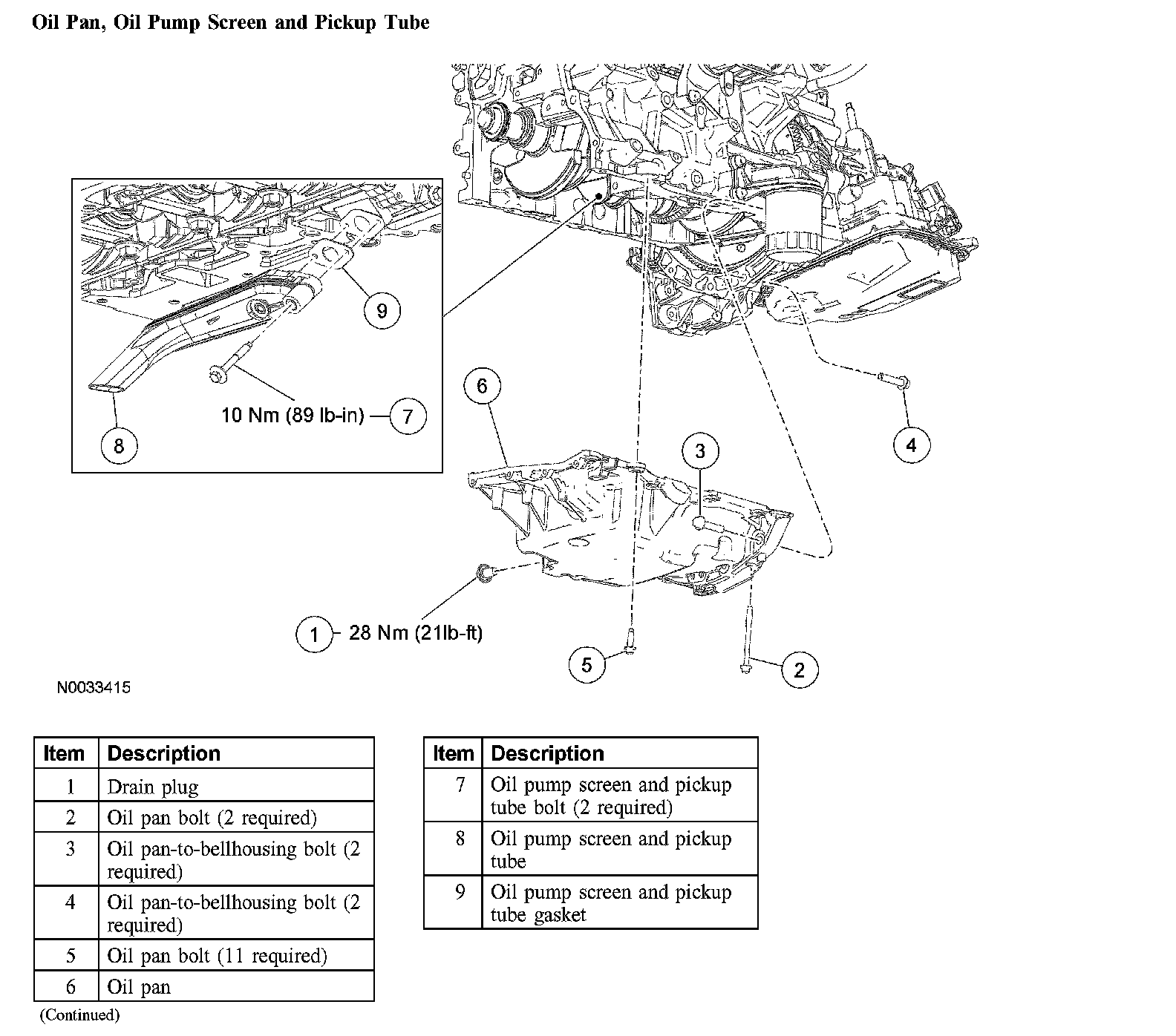

Oil Pan, Oil Pump Screen and Pickup Tube:
Engine Lubrication
Components Exploded View
