Exhaust System
Exhaust System
Exhaust System

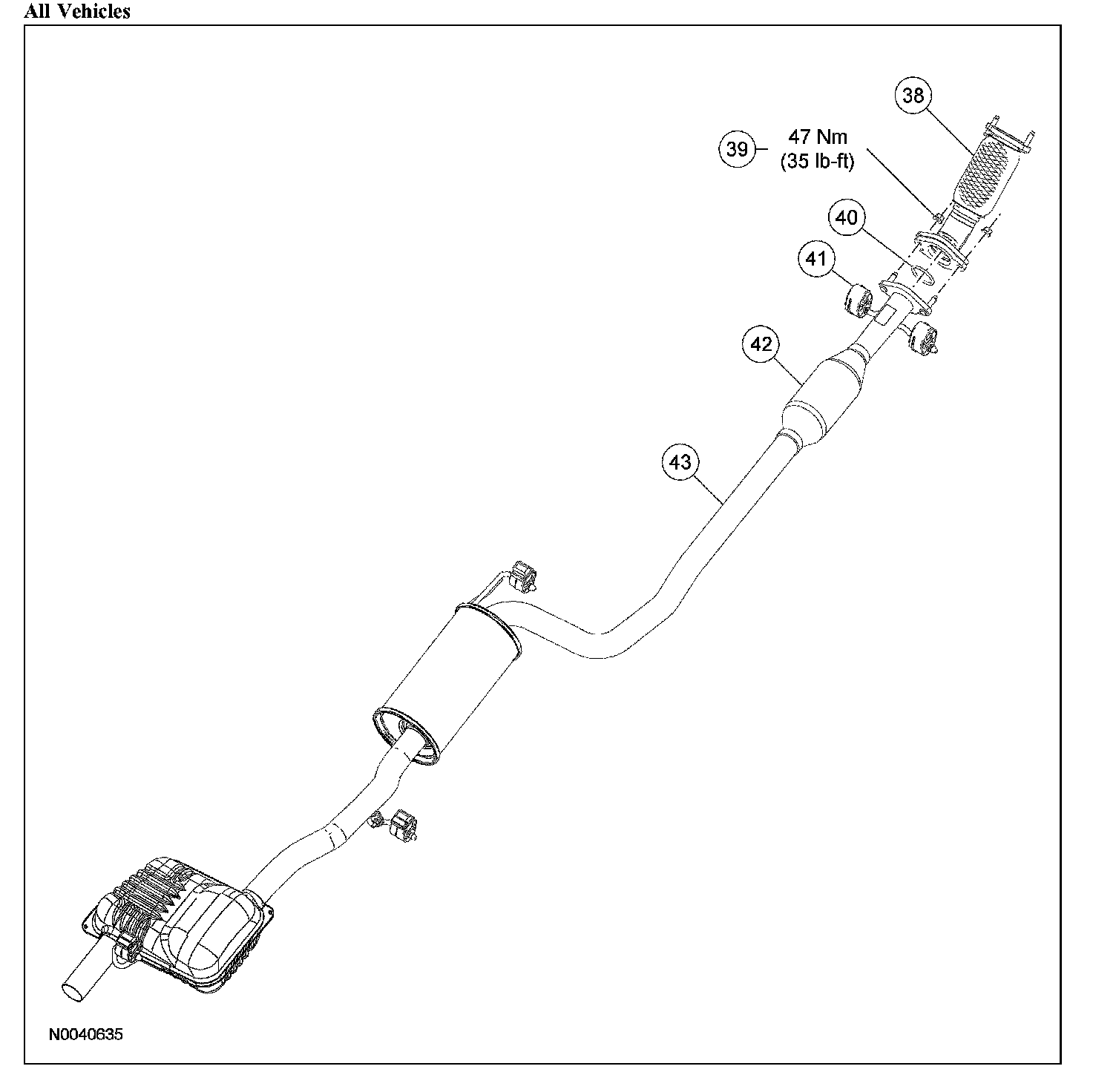

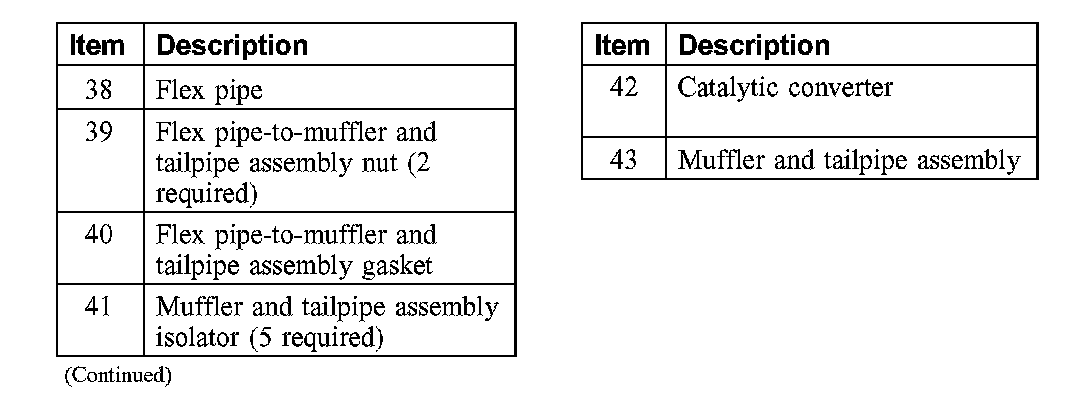

- Exploded View
Vehicles with 2.0L PZEV Engines:
Vehicles with 2.0L Non-PZEV Engines:
Vehicles with 2.3L Engines:
All Vehicles:
