Without A/C

Accessory Drive

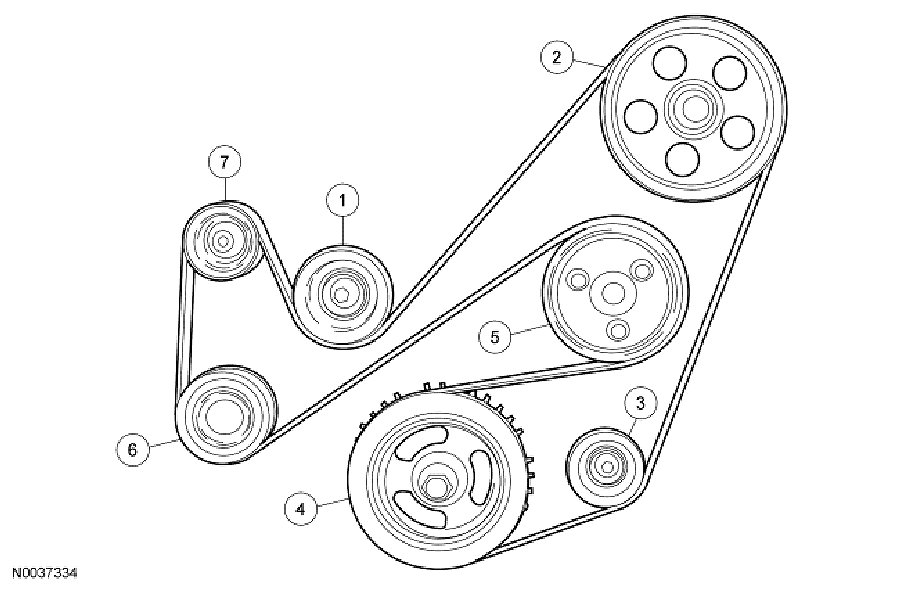

2.0L And 2.3L Without Air Conditioning (1 Of 2):

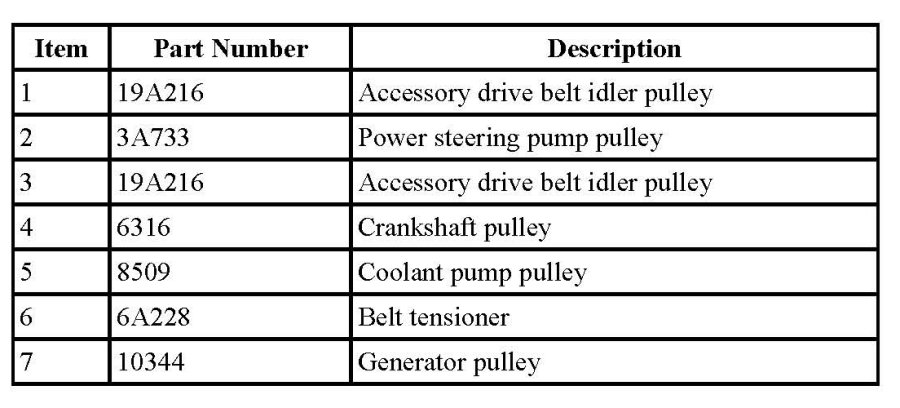

2.0L And 2.3L Without Ain Conditioning (2 Of 2):
