Instrument Cluster (IC) Lens
INSTRUMENT CLUSTER LENSRemoval and Installation
1. Remove the instrument cluster.

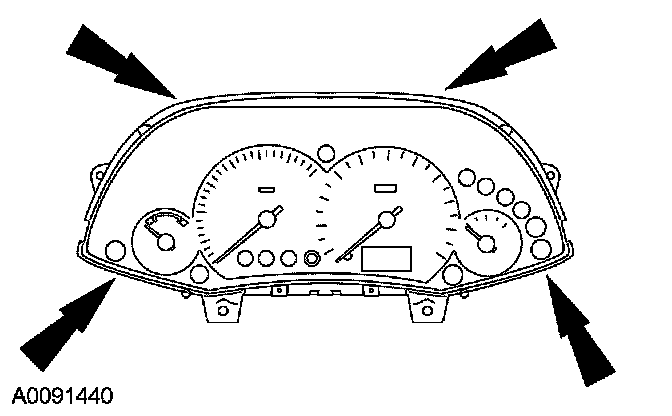

2. Release the lens clips from the instrument cluster and remove the lens.
3. To install, reverse the removal procedure.
Removal and Installation
1. Remove the instrument cluster.
2. Release the lens clips from the instrument cluster and remove the lens.
3. To install, reverse the removal procedure.
