Battery Discharge Protection Relay: Locations

EARLY PRODUCTION

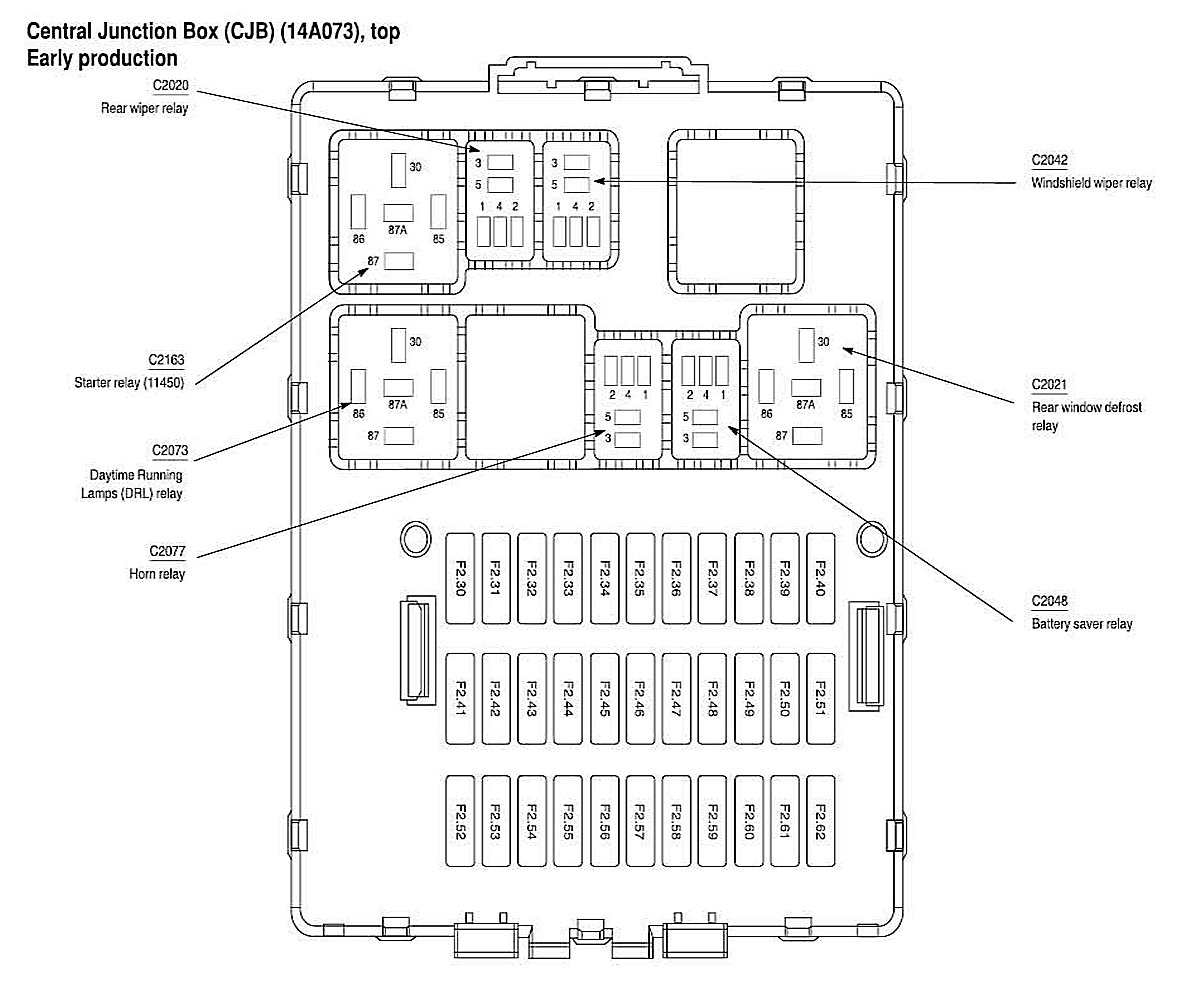

Central Junction Box (CJB), Top --- Early:

Battery Saver Relay is located in the Central Junction Box (CJB).

Central Junction Box (CJB) is located behind the dash panel on the LH side.
