Center Mounted Brake Lamp: Service and Repair

HIGH MOUNTED STOPLAMP

Sedan:

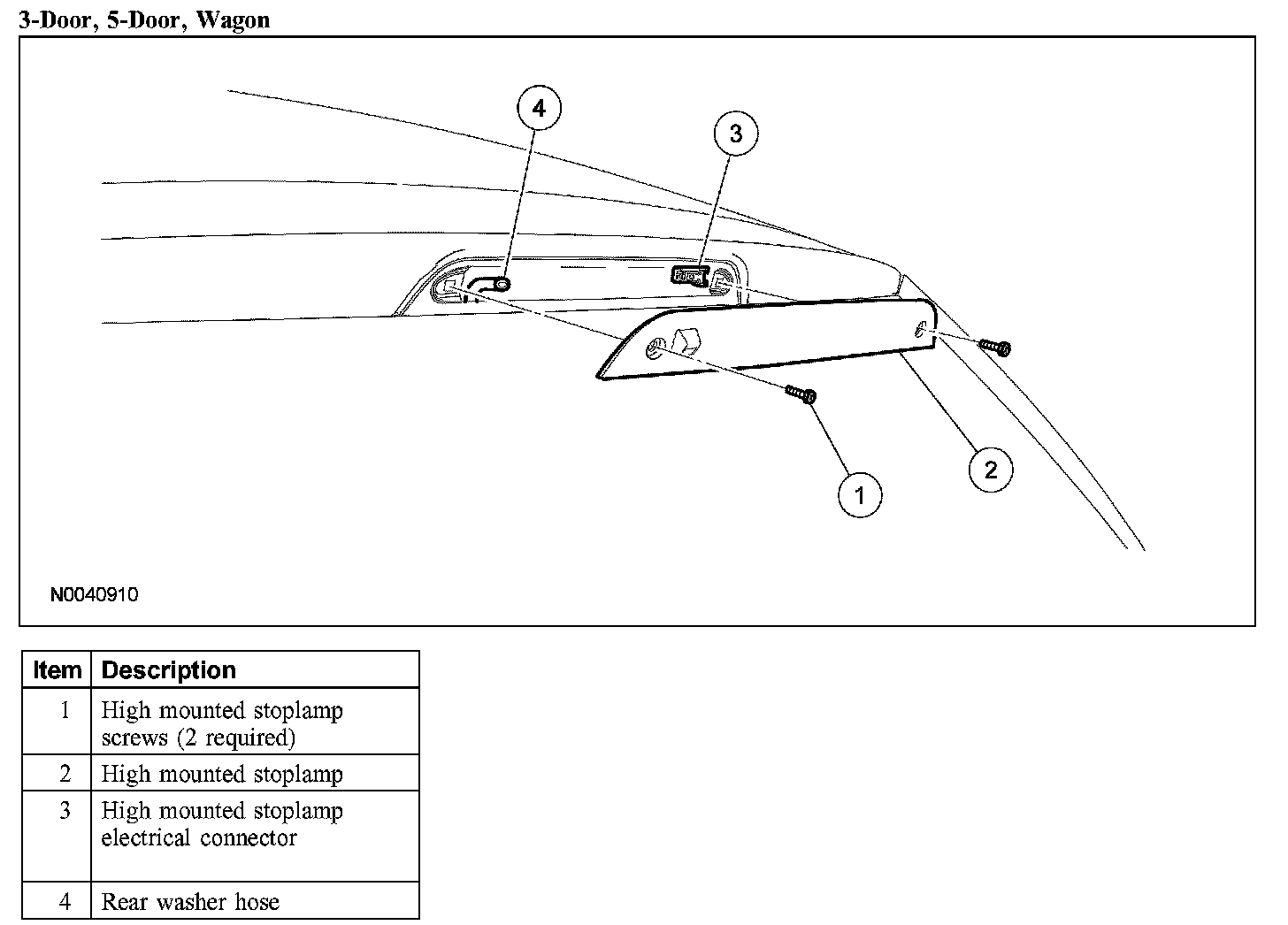

3-Door, 5-Door, Wagon:

Removal and Installation

Sedan
1. Remove the pin-type retainers and the decklid trim panel.
2. Remove the 2 pin-type retainers and the high mounted stop lamp.
- Disconnect the electrical connector.

3-door, 5-door, wagon
3. Remove the 2 screws and the high mounted stoplamp.
- Disconnect the electrical connector.
- If equipped, disconnect the rear washer hose.

All vehicles
4. To install, reverse the removal procedure
