Tail Lamp: Service and Repair

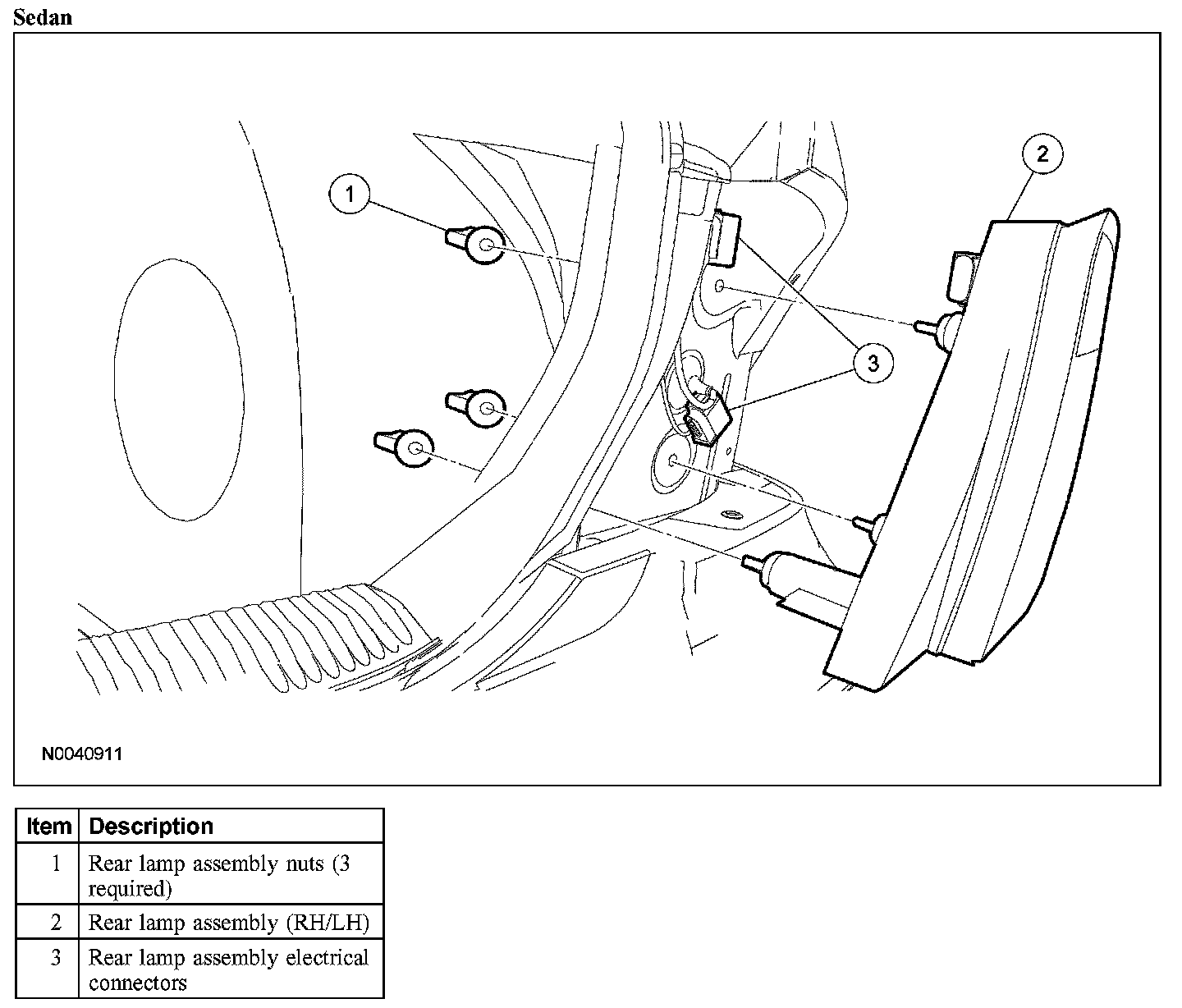

REAR LAMP ASSEMBLYSedan:

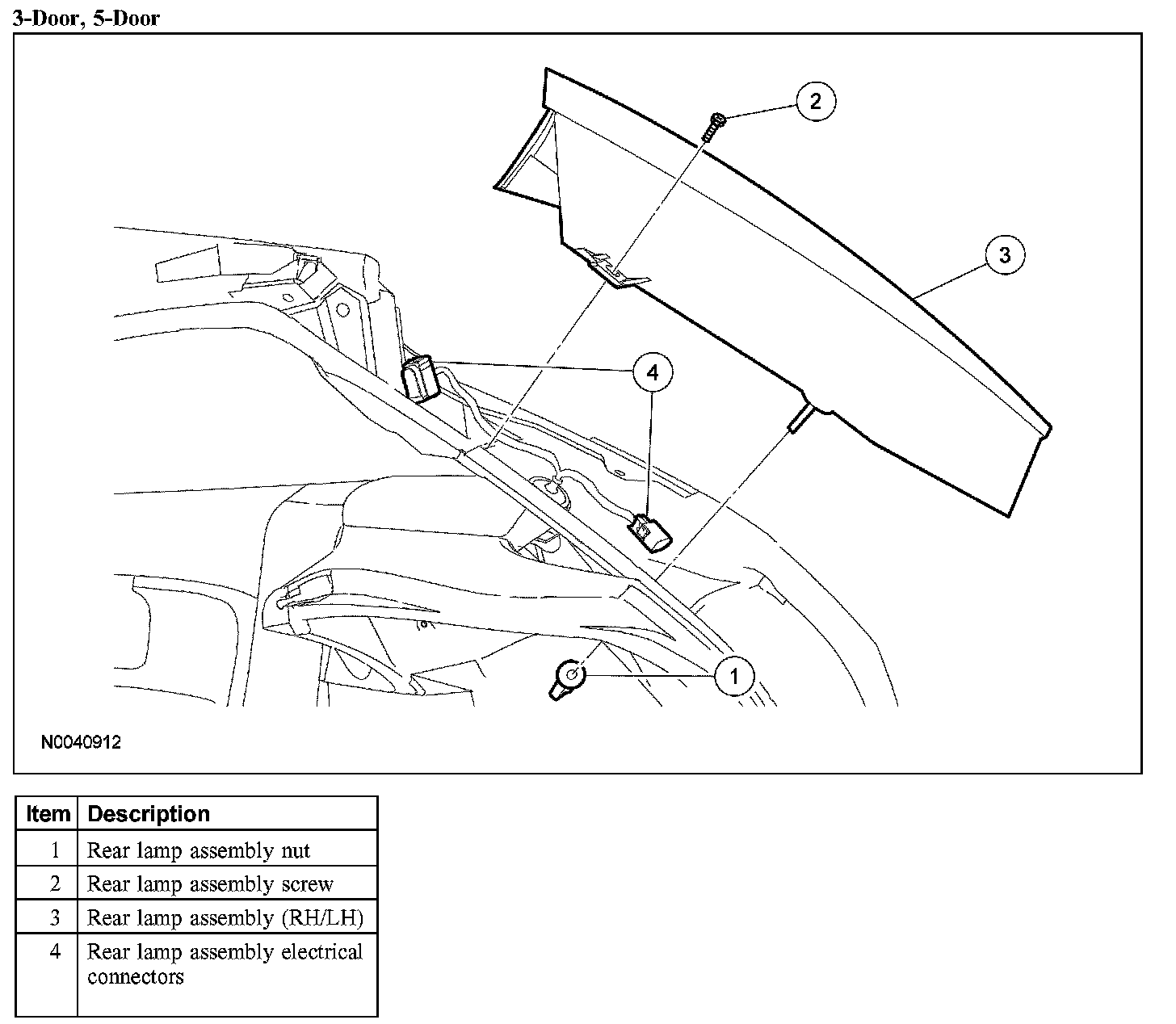

3-Door, 5-Door:

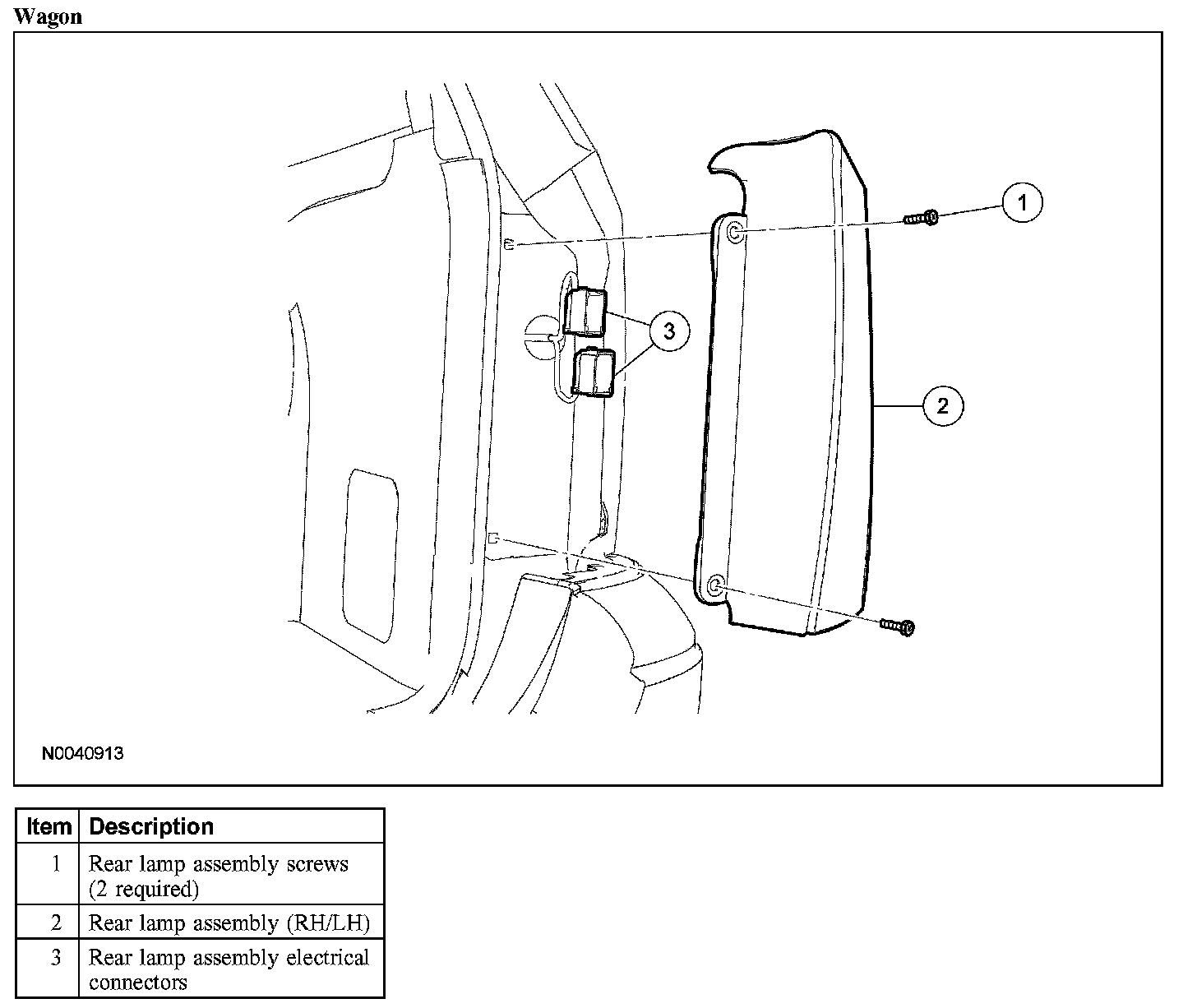

Wagon:
Removal and Installation
Sedan
1. Remove the 3 nuts and the rear lamp assembly.
- Disconnect the electrical connectors.
3-door, 5-door

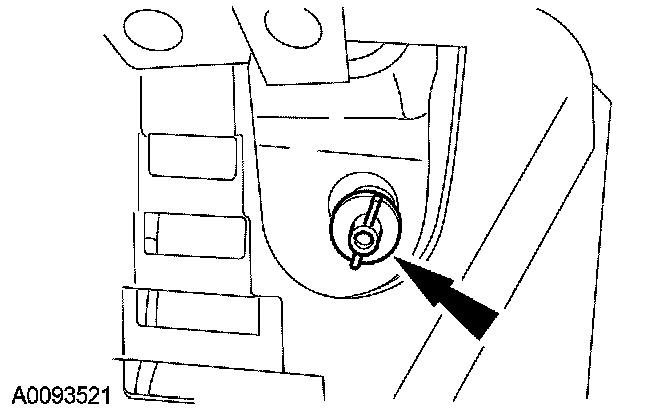

2. Remove the rear lamp assembly nut.
3. CAUTION: When removing the rear lamp, pull the rear lamp assembly straight rearward. Damage to the lamp or window may result if the lamp is twisted or pulled only from the bottom.
Remove the screw and the rear lamp assembly.
- Disconnect the electrical connectors.
Wagon
4. Remove the 2 screws and the rear lamp assembly.
- Disconnect the electrical connectors.
All vehicles
5. To install, reverse the removal procedure.
