Automatic Transmission/Transaxle: Adjustments

Selector Lever Cable Adjustment

Adjustment
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.

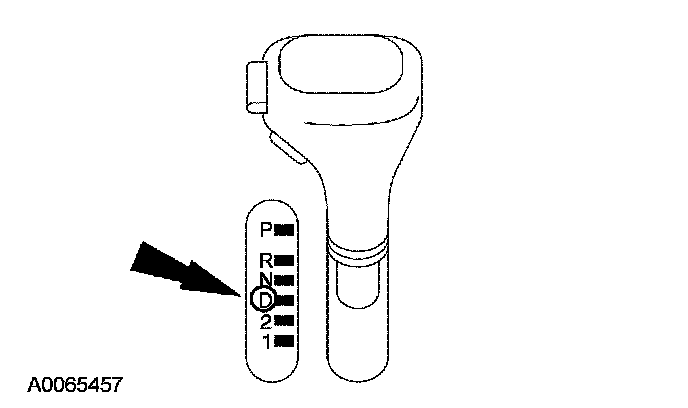

2. Shift selector lever in position D.

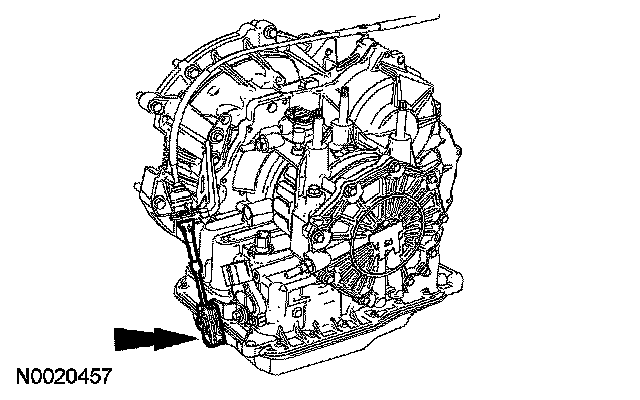

3. Disconnect the shift cable end from the manual control lever.

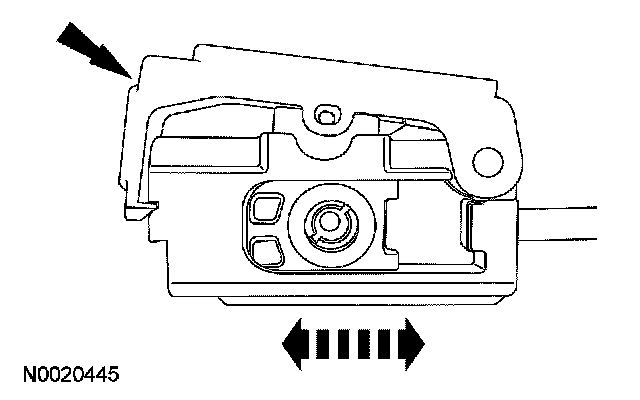

4. Unlock the shift cable end. Make sure that the cable end moves freely.

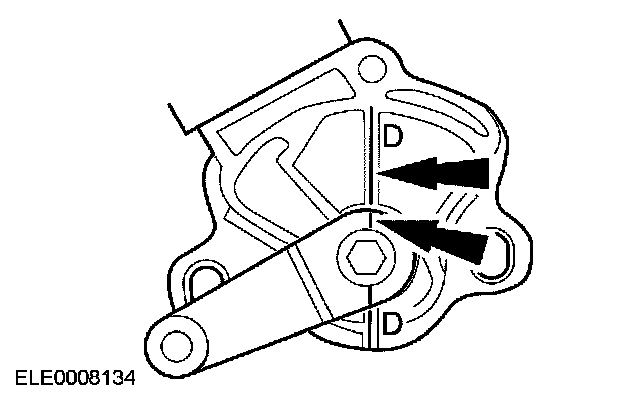

5. NOTE: The transmission range (TR) sensor mark must be in line with the transaxle selector lever.

Move the transaxle selector lever to position D (TR sensor removed shown).

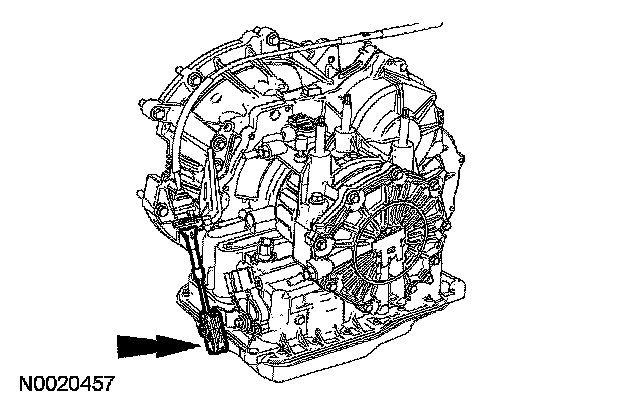

6. Connect the shift cable end of the manual control lever.





7. Press the lock tab down to secure the cable end from moving.
8. Check to make sure that the vehicle starts in PARK and NEUTRAL and the reverse lamps illuminate in REVERSE.
