Range Selection

Range Selection

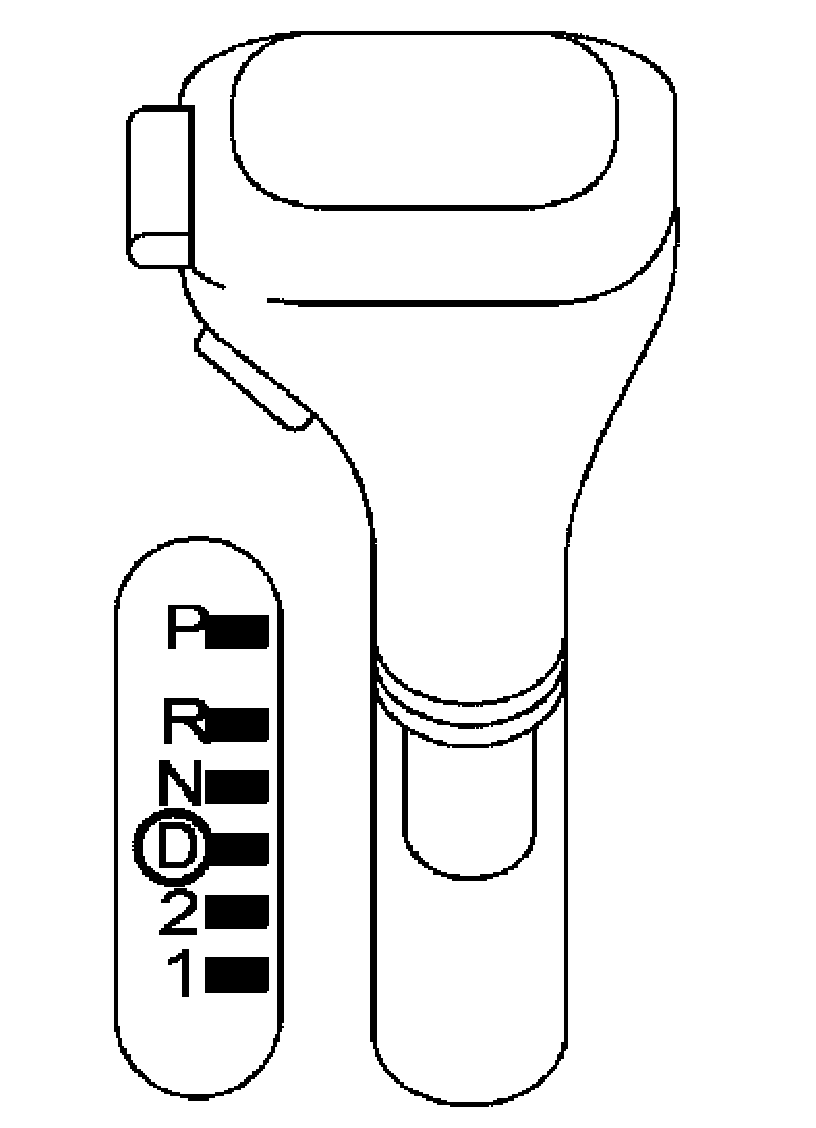

The transaxle range selector has 6 positions: P, R, N, D, 2, 1.

Park
In manual selector lever position "P" no gear is selected. The parking pawl is engaged manually by the manual selector lever cable and the shift shaft.

For safety reasons, always apply the parking brake whenever the vehicle is parked.

Reverse
In manual selector lever position "R" reverse gear is selected. REVERSE allows the vehicle to be operated in a rearward direction, at a reduced gear ratio.

Neutral
In manual selector lever position "N" no gear is selected. The driveline is not locked, so the wheels are free to rotate.

The vehicle may be started in NEUTRAL.

Drive
In manual selector lever position "D" and when the O/D switch is not pressed, the transmission control allows all the gears to be selected. When the O/D switch is pressed, shifting into 4th gear is prevented or the transmission shifts down to 3rd gear.

1 Position
In manual selector lever position "1" only 1st gear is selected. In addition to the 1st gear one-way clutch, the transmission control closes the reverse gear brake to produce engine braking effect in overrun.

If the manual selector lever is moved to position "1" at an excessive vehicle speed for 1st gear, the transmission control only allows the downshift to take place when the corresponding vehicle speed has been reached.

2 Position
In manual selector lever position "2" only 2nd gear is selected. The transmission control does not allow shifting into 1st gear.

If the manual selector lever is moved to position "2" at an excessive vehicle speed for 2nd gear, the transmission control only allows the downshift to take place when the corresponding vehicle speed has been reached.
