External Controls
External ControlsThe MTX-75 manual transaxle is equipped with a cable gearshift mechanism. The gearshift system includes:
^ Gearshift cables
^ shift cable
^ selector cable
^ Gearshift lever
The shift cable has white ends and the selector cable has black ends. The selector cable (black) does not have an adjustment. The reverse release trigger is not used.

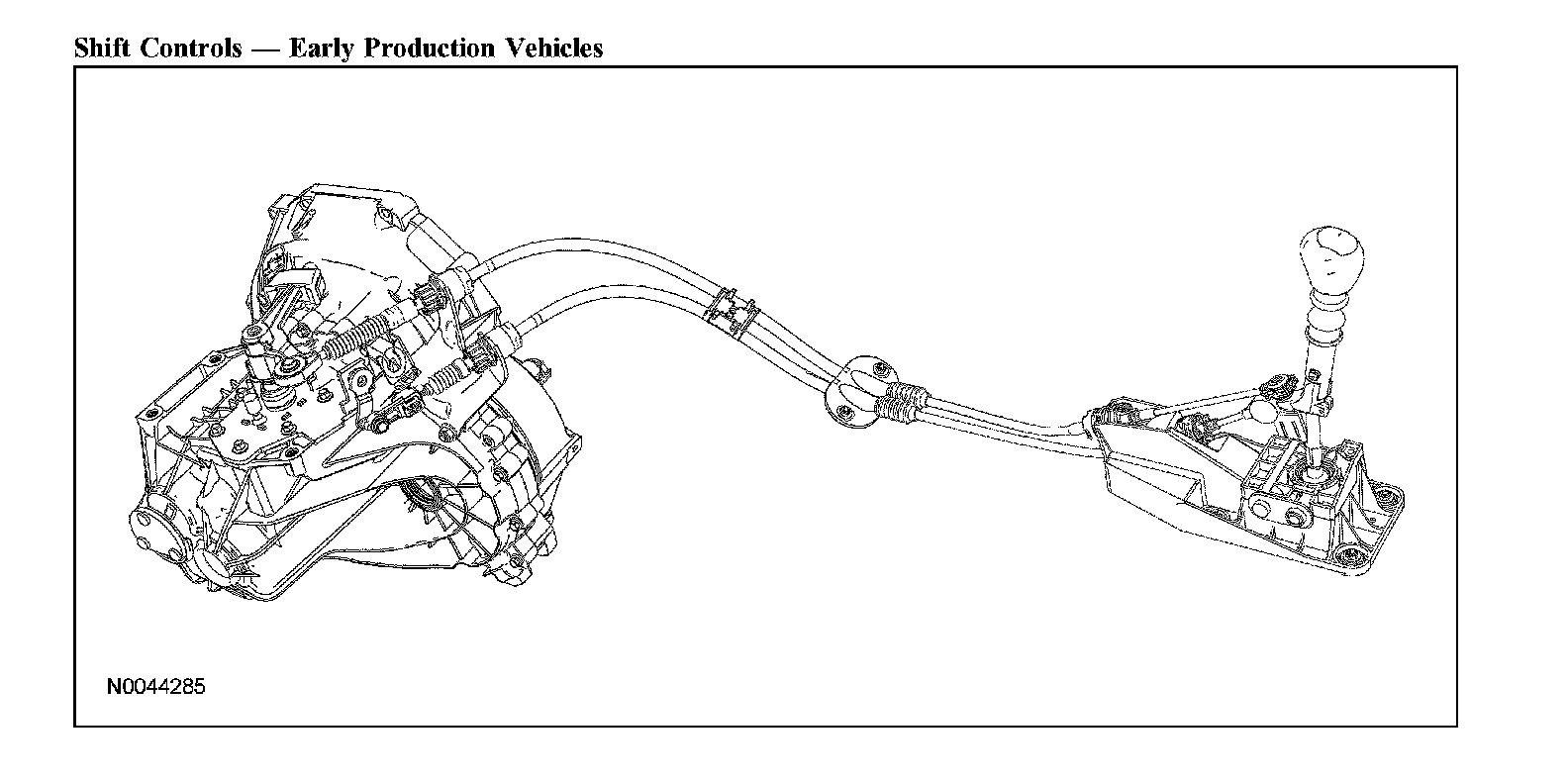

Shift Controls - Early Production Vehicles:

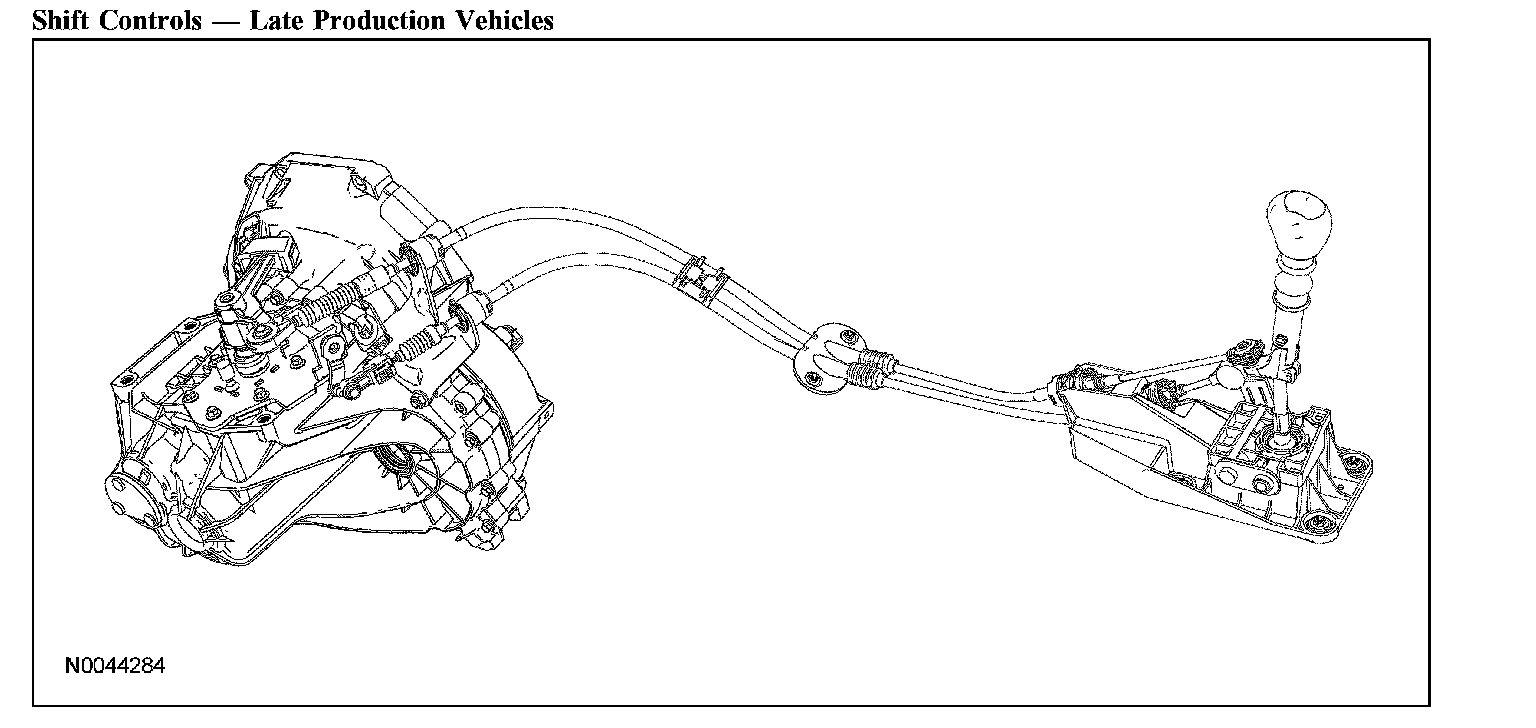

Shift Controls - Late Production Vehicles:
