Installation

Transaxle

Special Tool(s):

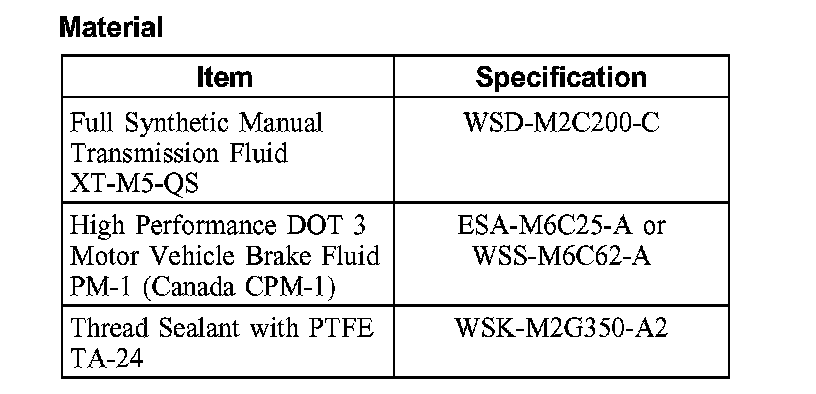

Material:

Installation

1. NOTE: Install a new intermediate shaft center bearing cap and locknuts.

NOTE: Install a new halfshaft snap ring.

NOTE: Make sure to align the index marks on the subframe to the chassis.

To install, reverse the removal procedure.
^ Check and, if necessary, fill the transmission with the specified fluid. The total fill capacity is 4.0 pints (1.9L). Apply sealant to the fill plug threads and install the fill plug.
^ Fill the brake fluid reservoir to the specified level. Bleed the clutch hydraulic system.
^ Fill and bleed the power steering system.
^ An audible click will be heard when the gearshift cables are correctly seated in the retaining bracket.
^ Adjust the gearshift cables.
